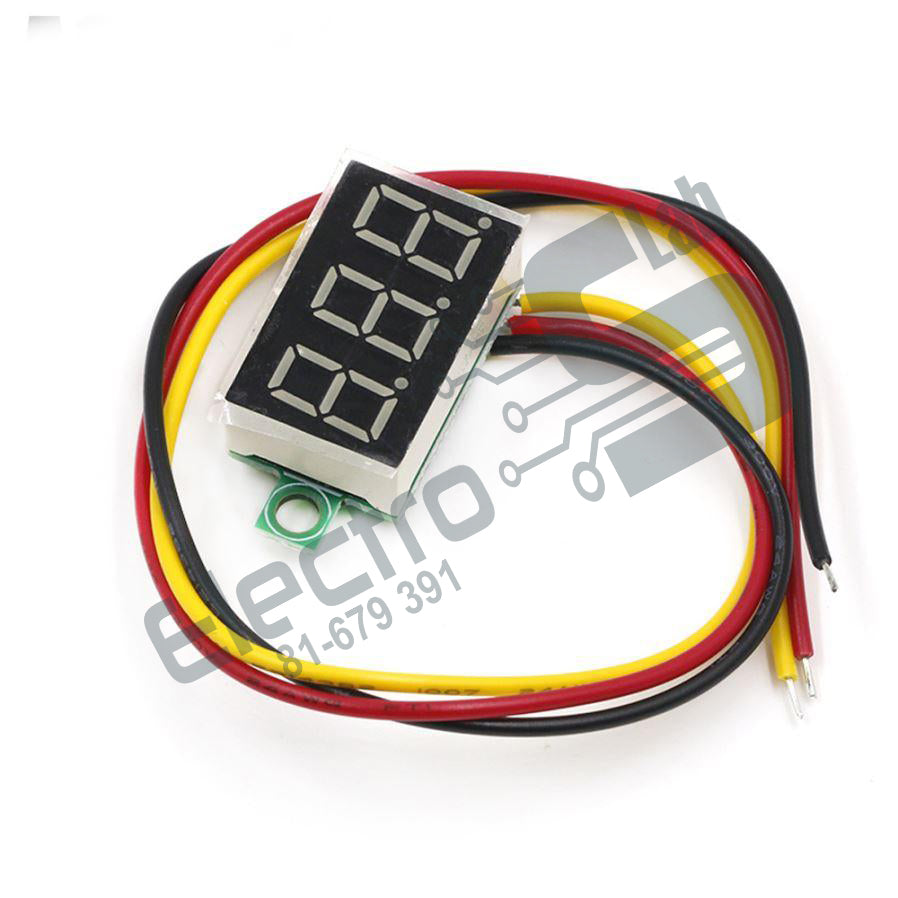

0.28inch 3.5-30V Three Wire DC Voltmeter Red

This is tiny and compact digital voltmeter with a red LED Display. The 0.28inch 0-100V Three Wire DC Voltmeter Red Panel requires only a few minutes of configuration and is as simple as directly connecting wires to the source you want to measure and seeing the LED blink.

This voltmeter can be used to measure the storage battery's voltage in motorcycles and cars and also can grasp the storage battery’s status. It also can be used to measure other voltage.

Specifications:

• Color: Red
• Wires: 3
• Measuring Range: 3.5 ~ 30V
• Current Consumption (mA): 10
• Refresh Speed (ms): 200 (one time)
• Minimum Input (V): 3
• Highest Input (V): 30
• Operating Temperature (°C): -10 to 60
• Holes for Mounting: 3 mm
• Height (mm): 9
• Length (mm): 13
• Width (mm):30
