LIU EENG301L KIT + Components

Tool Box Kit

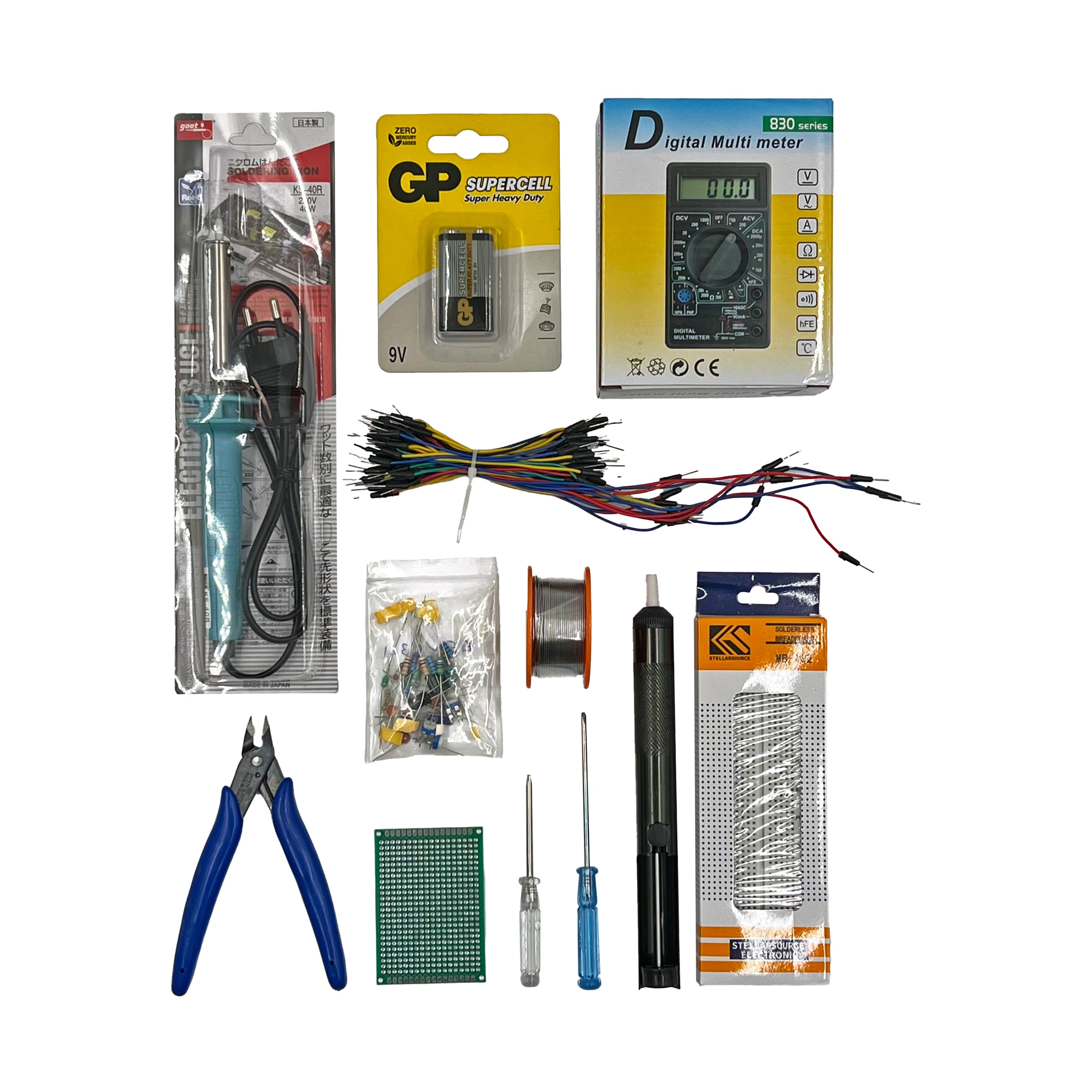

Packing List:

• Digital Multimeter DT830D
• 830 Points Solderless Breadboard
• PLATO 170 Best DIY Special Cutters Electronic Diagonal Cutting Pliers
• 65pcs Flexible Breadboard Jumper Wires
• Phillips Screw Driver
• Flat Screw Drivers
• Soldering Iron
• Solder
• Toolbox 13 inch
• PCB Protoboard
• Desoldering pump suction

EENG301L Components:

Preparation weeks:

Resistors: 1k, 4.7k, 10k. Capacitors: 0.01uF, 0.1uf, 0.15uf, 0.015uf, 1uf

Experiment 2: 1k,2*510ohm

Ohm’s law: 220,150, 330,100ohm

Voltage/current divider: 100, 150, 330,200, 220ohm.

KVL/KCL: Resistors: 47 Ω, 50 Ω, 100 Ω, 220Ω, 330, 1.0K Ω, 3.3K Ω, 2*10K Ω.

Thevenin/ Superposition: Resistors=1.5kΩ and 2.2kΩ. Variable resistor= 3000 Ω.

AC Measurements: 1kΩ, 2*3.9k, 5.1k.

Lead/lag: L = 100 mH, C = 0.01 µF and Ri’s will be given by your instructor.

200mH, 2k, 10k, 0.01uF, 0.047μF, 47uH, 470 uH, 4.7 mH.

AC analysis: 1k, 220, 1.5k, 0.022uF, 12mH

Op amp: uA741, 1k, 10k.

Filter: 1k, 0.1uF, C = 0.1 μF, R = 1 KΩ and L = 5.5 mH.

Variable resistor: 10k, 50k.
