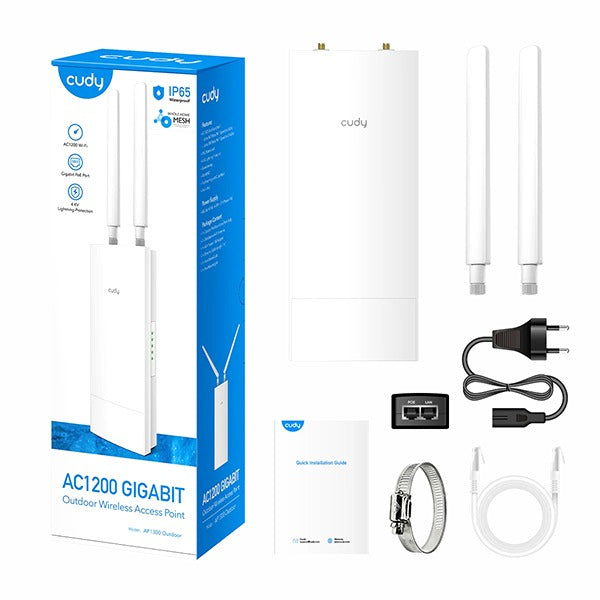

Cudy Outdoor AC1200 Wireless Access Point AP1200

Hardware Specs

• CPU: 880 MHz Dual-Core Processor

• Memory: 128 MB DDR3 (1 Gbit)

• Storage: 16 MB NOR Flash (128 Mbit)

Wireless

• Dual-Band Wi-Fi Speeds:

  • 5 GHz: Up to 867 Mbps, 2×2 MIMO (2T2R)

  • 2.4 GHz: Up to 300 Mbps, 2×2 MIMO (2T2R)

• Antennas:

  • 2× Detachable External Antennas (RP-SMA Female)

  • 2× Internal FEM (PA/LNA) for 5 GHz

  • 2× Internal FEM (PA/LNA) for 2.4 GHz

• Beamforming: Supported

• Range Performance:

  • Maximum: 170 m (558 ft)

  • Open Park: 150 m (492 ft)

  • Street: 50 m (164 ft)

  • Woods: 30 m (98 ft)

• Wall Performance: N/A

Interfaces

• Ethernet Port: 1× Gigabit RJ45 (PoE supported)

• LED Indicators: 5 GHz Wi-Fi, 2.4 GHz Wi-Fi, LAN, Internet, System

• Buttons: Reset Button

Power

• Input Methods:

  • IEEE 802.3af/at PoE

  • Passive PoE (24V – 57V)

• Power Adapter:

  • Input: 100–240 V AC, 50/60 Hz

  • Output: 48V Passive PoE

• Power Consumption:

  • Maximum: 11 W

  • Idle: 7.5 W

Reliability & Protection

• Advanced Reliability: Hardware Watchdog

• Electrostatic Discharge (ESD): 4kV (Contact), 8kV (Air)

• Surge Protection (IEC/EN 61000-4-5, Level 4):

  • Power: Differential Mode 2kV, Common Mode 4kV

  • RJ45: Common Mode 4kV

• Ingress Protection: IP65 (when installed vertically)

Environmental

• Operating Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

• Extended Operating Temp (with industrial-grade SIM): -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉)

• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

• Operating Humidity: 10% – 90% (non-condensing)

• Storage Humidity: 5% – 90% (non-condensing)

Certifications

• FCC, CE

Mechanical

• Installation Options: Wall-mount, Pole-mount

• Dimensions:

  • Device: 240 × 100 × 53.7 mm (9.45 × 3.94 × 2.11 in)

  • Antenna: 197.5 × 21.6 × 15.5 mm (7.78 × 0.85 × 0.61 in)
