Vibration Motor For Mobile Phones

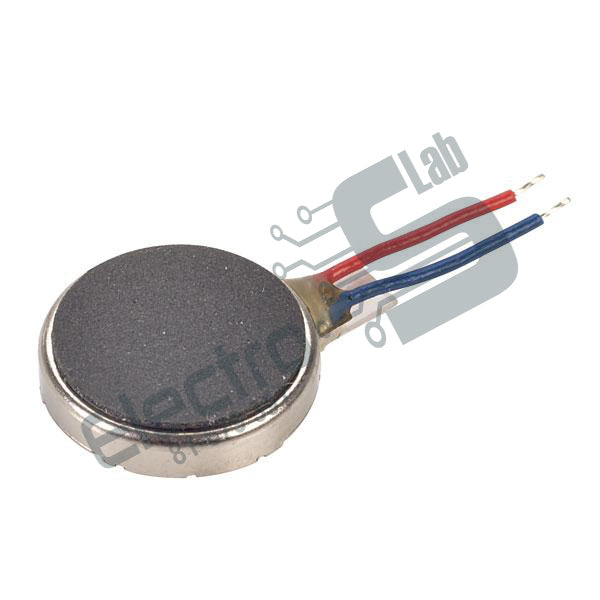

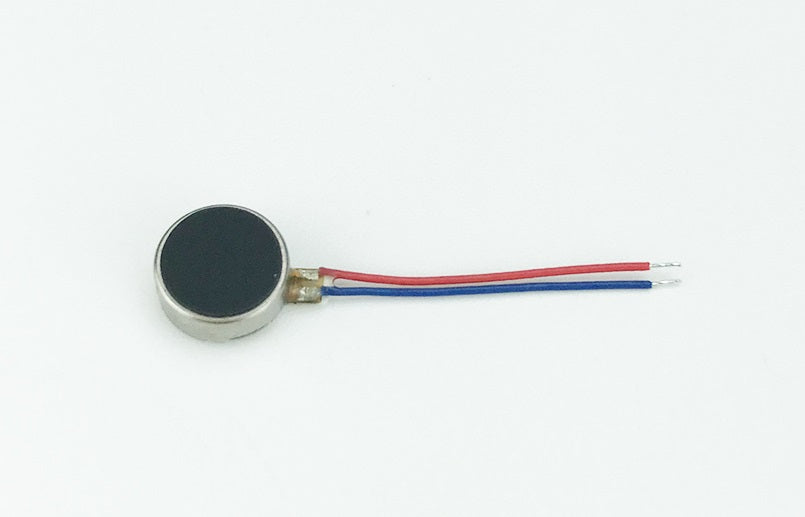

This 1027 Mobile Phone Flat Vibration Motor is a shaft less vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaft less design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project. The motor has a 3M adhesive backing on it for easy mounting and 1.5″ leads for making quick connections.

Specifications:

• Motor Diemeter: 10MM
• Motor Thickness: 2.7MM
• Length: About 12MM
• Operating Voltage: 2.5V-4V
• Rated Voltage: 3V
• Electric Current: 70MA
