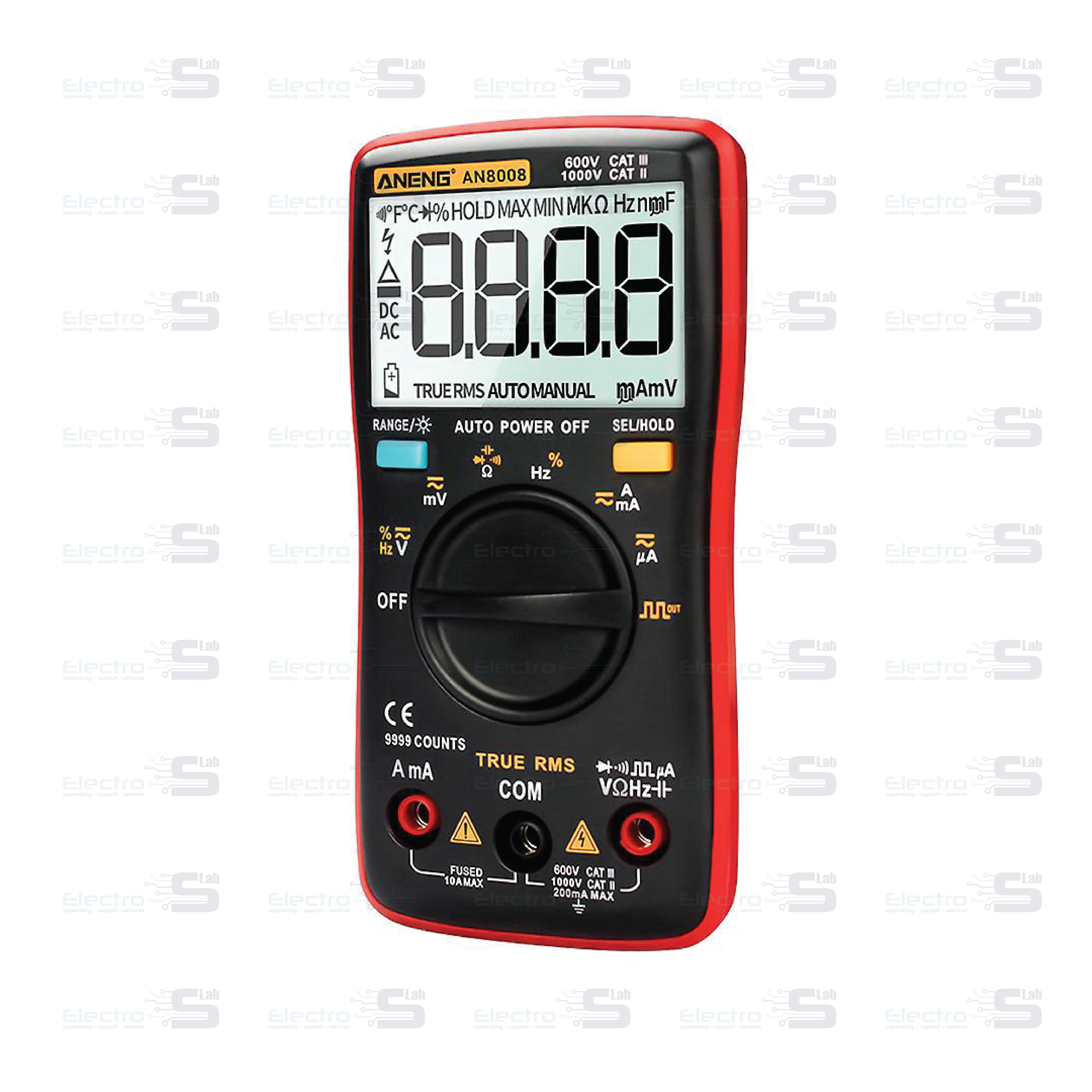

ANENG AN8008 Standard Digital Multimeter
ANENG AN8008 Standard Digital Multimeter
Tags
Regular price
$20.00 USD
Regular price
$23.00 USD
Sale price
$20.00 USD
Unit price
/
per
Sale
Sold out
Features:
- AN8008 Multifunction: Can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, square wave output, diode and continuity.
- Portable design: There is a back bracket for supporting the multimeter, convenient to operate.
- Wide range of applications: It's a perfect tool for the laboratory, factory and home.
- Clear to read: with large LCD backlight display and data hold, easy to read data.
- More advantages: Auto/manual range, true RMS, auto power off and over range indication.
Specifications:
- Brand Name: ANENG
- Model: AN8008
- Counts: 9999
- Diode Test: Yes
- Continuity: Yes
- Square wave output: Yes
- Backlight: Yes
- Data hold: Yes
- Auto/manual range: Yes
- Auto power off: Yes
- Over range Indication: Yes
- Duty Cycle: 1%-99% ±( 0.1%+2)
- DC voltage: 999.9mV/9.999V/99.99V/999.9V±(0.5%+3),9.999mV/99.99mV±(0.5%+3)
- AC voltage: 999.9mV/9.999V/99.99V/750V±(1.0%+3),9.999mV/99.99mV±(1.0%+3)
- DC current: 999.9mA/9.999A±(1.0%+3),99.99μA/999.9μA±(0.8%+3)
- AC current: 999.9mA/9.999A±(1.2%+3),99.99μA/9999μA±(1.0%+3)
- Resistance: 99.99Ω±(1.0%+3),999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ±(0.5%+3), 9.999MΩ±(1.5%+3)
- Capacitance: 9.999nF±(5.0%+20), 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±(2.0%+5),9.999mF±(5.0%+5)
- Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1% + 2)
- Power: 2 x 1.5V AAA (Not included)
Package included:
- 1 x Digital Multimeter (without battery)
- 2 x Test Leads Pens
- 1 x Storage bag
- 1 x User Manual
Note: This device doesn't include a battery.
