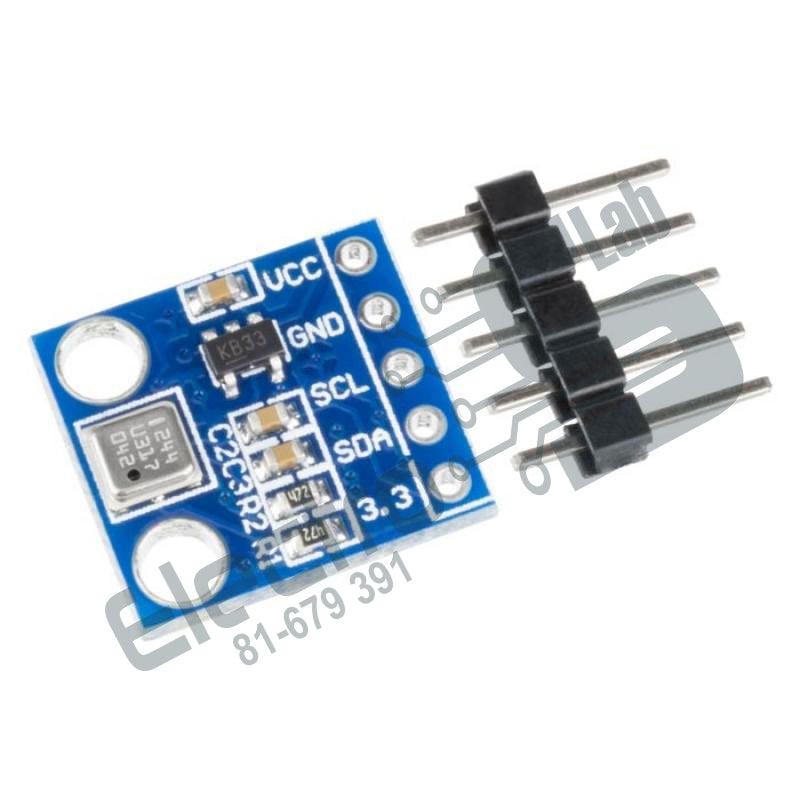

BMP180 Digital Barometric Pressure Sensor Module

BMP 180 is one of sensor of BMP XXX series. They are all designed to measure Barometric Pressure or Atmospheric pressure. BMP180 is a high precision sensor designed for consumer applications. Barometric Pressure is nothing but weight of air applied on everything. The air has weight and wherever there is air its pressure is felt. BMP180 sensor senses that pressure and provides that information in digital output. Also the temperature affects the pressure and so we need temperature compensated pressure reading. To compensate, the BM180 also has good temperature sensor.

Specifications:

• Operating voltage of BMP180: 1.3V – 3.6V
• Input voltage of BMP180 MODULE: 3.3V to 5.5V
• Peak current: 1000uA
• Consumes 0.1uA standby
• Maximum voltage at SDA , SCL : VCC + 0.3V
• Operating temperature: -40ºC to +80ºC
