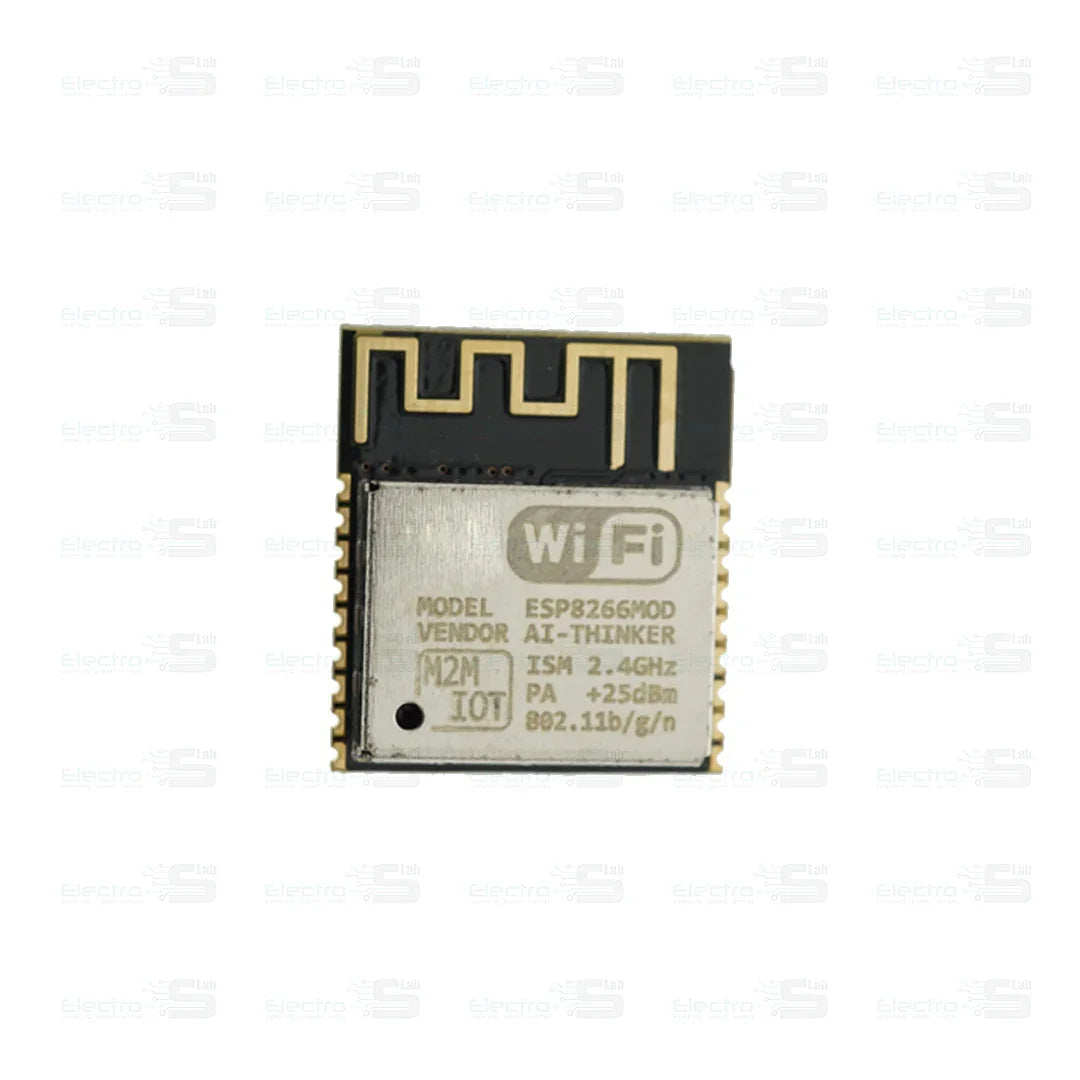

ESP8266 ESP-13 Serial WIFI Module

The Latest ESP-13 ESP8266 Wifi Module AP & Station Remote Serial Wireless IoT Board was designed based on an integrated chip specifically to fulfil the needs of a new connected world. It can handle all the necessary overhead for communicating with your network, such as TCP/IP stack and communicating with your 802.11 networks.

ESP8266 was designed as a Serial Wifi Wireless Transceiver Module with self-contained SOC and integrated TCP/IP protocol stack. It gives access to any microcontroller to your WiFi network. This Wireless Transceiver Module offers a complete and self-contained Wi-Fi networking solution. Thus it is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. This wireless module is completely addressable over SPI and UART protocols. As a result grants permission to connect your sensors or project directly to it through its GPIO’s.

ESP8266 ESP-13 is designed as a 32-bit low power microcontroller (MCU) Wi-Fi Module that integrates TCP/IP network stacks. This wifi module includes highly integrated 10-bit ADC with HSPI, SDIO, UART, PWM, I2C, and I2S interfaces. While providing a wireless internet connection for embedded devices it comparatively consumes low power. Moreover, It can be easily integrated into resource-limited devices due to its small form factor of only 18mm x 20mm. In addition to the ESP8266EX chipset, the module also consists of a built-in SPI flash with 32Mbits capacity, along with a SOP8–150mil package. The SPI flash is incredibly useful for storing user programs and firmware.
