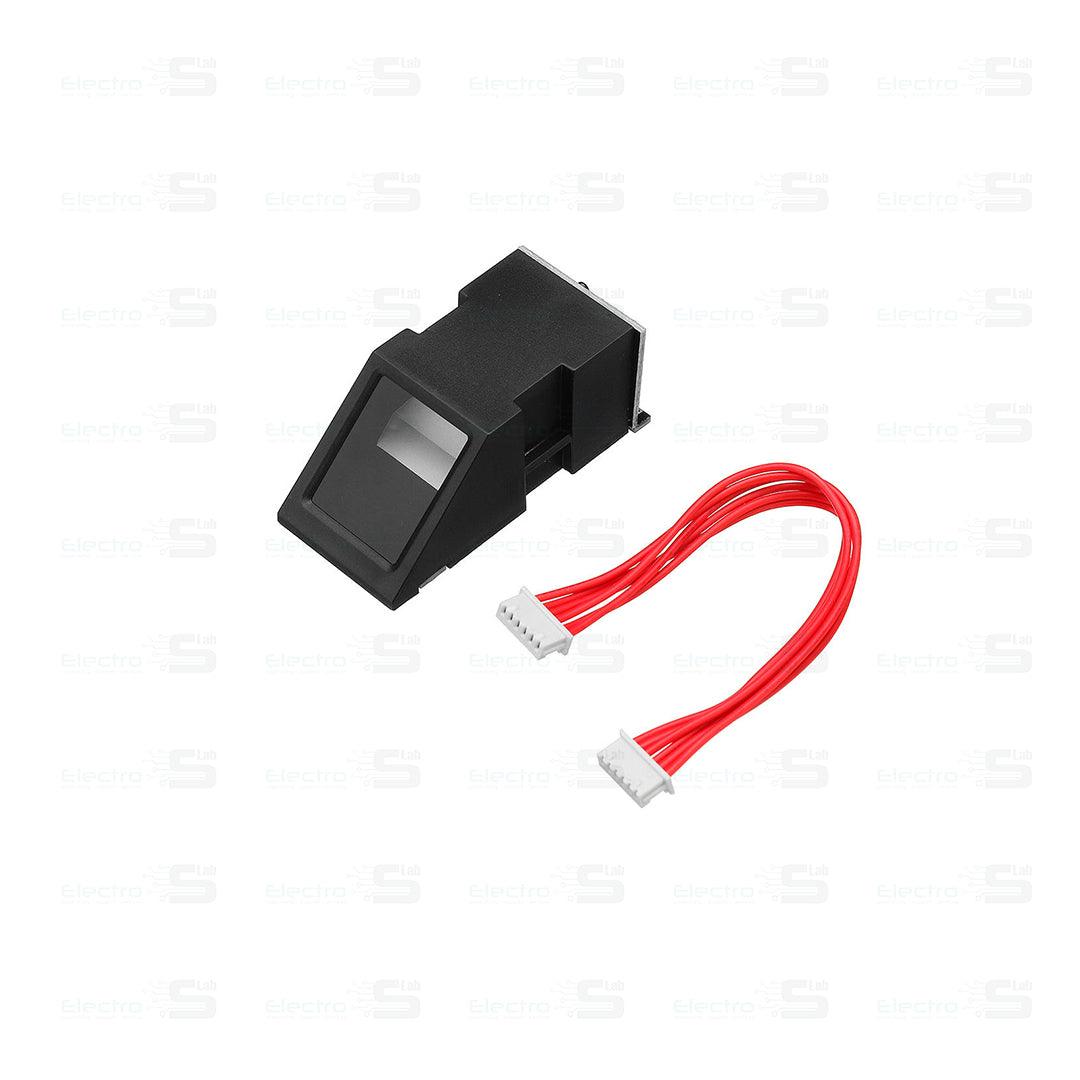

Fingerprint sensor

A finger print sensor is an electronic device used to capture a digital image of the fingerprint pattern. The captured image is called a live scan. This live scan is digitally processed to create a biometric template (a collection of extracted features) which is stored and used for matching.

Specifications:

• Supply voltage: 3.6 - 6.0VDC
• Operating current: 120mA max
• Peak current: 150mA max
• Fingerprint imaging time: <1.0 seconds
• Signature file: 256 bytes
• Template file: 512 bytes
• Safety ratings (1-5 low to high safety)
• False Acceptance Rate: <0.001% (Security level 3)
• False Reject Rate: <1.0% (Security level 3)
• Interface: TTL Serial
• Baud rate: 9600, 19200, 28800, 38400, 57600 (default is 57600)
• Working temperature rating: -20C to +50C
