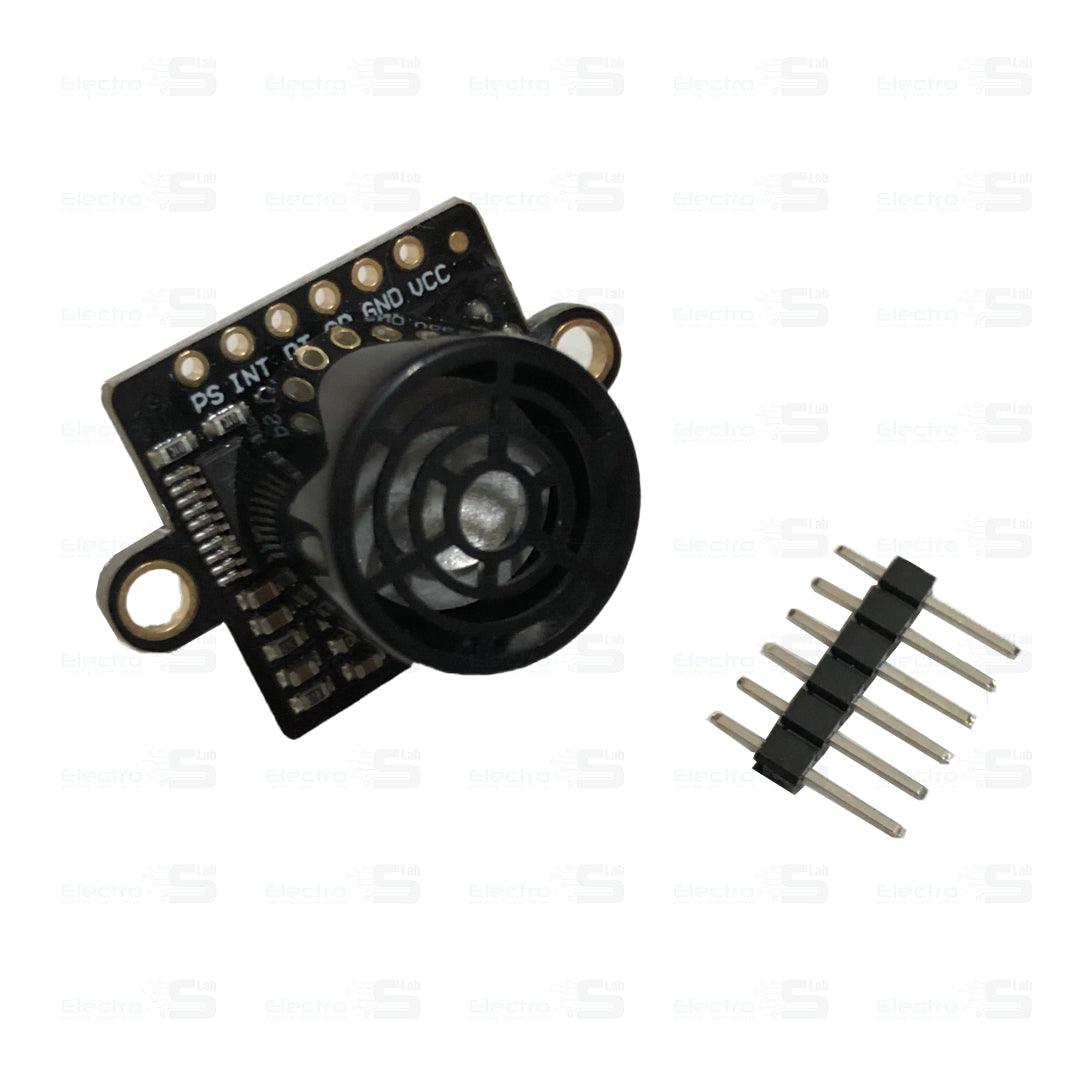

GY-US42 Ultrasonic Sensor

GY-US42 Ultrasonic Sensor

Regular price $15.00 USD
Regular price Sale price $15.00 USD
Sale Sold out
Tax included.

This Long Range Ultrasonic Distance Sensor ( GY - US42 / GYUS42 / GY US42 )was actually designed to be used with the APM Flight Controller Module to be used in Drones - RC Quadcopter and Planes but can also be used as a general purpose distance sensor with the Arduino or the Raspberry Pi. You can use this sensor with the APM Flight controller to help your drone with Automatic Takeoff, Landing, Terrain Following, Obstacle Avoidance, etc. If you plan to use this sensor as a distance sensor with the Arduino, Raspberry Pi, or any other general purpose micro controller, it offers many different interfaces - Serial TTL, PWM, I2C, etc.

Specifications:

  • Measuring range: 20cm ~ 720cm (VCC = 5V)
  • Resolution: 1cm
  • Response frequency: 15HZ (full range)
  • Working voltage: 3-5V
  • Working current: 9mA (VCC = 5V)
  • Operating temperature: -20 degrees Celsius ~ 65 degrees Celsius
  • Storage temperature: -40 degrees Celsius to 85 degrees Celsius
