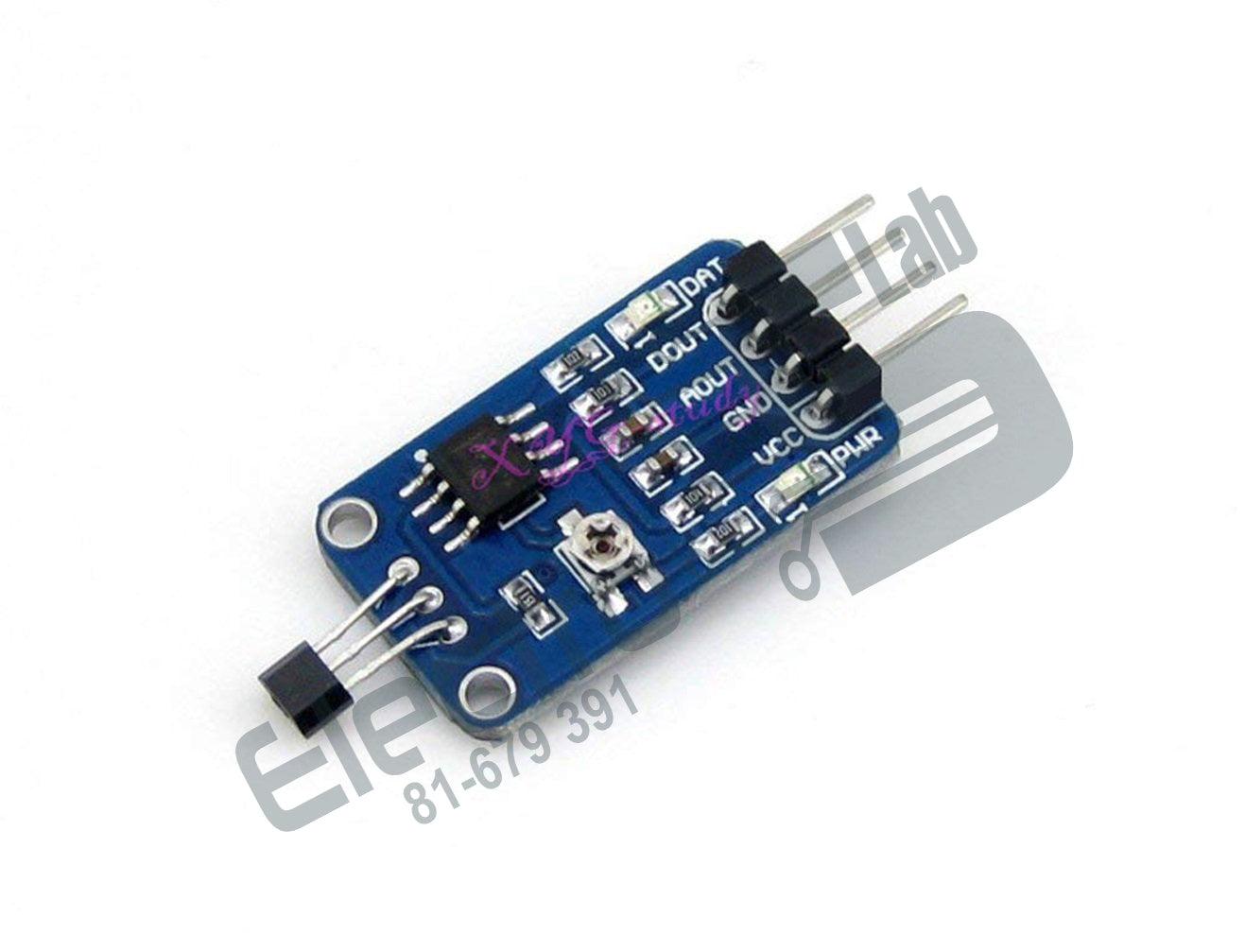

Hall Sensor Module LM393 Linear Hall Effect

The Hall Effect Magnetic and Proximity Sensor Module can be used to detect the presence (or absence!) of nearby objects such as magnets. This sensor accepts a GND and +5V supply, and has a single digital output which goes low (GND) when a magnetic field is detected.

The linear sourcing output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. It has a reduced current consumption of only 6 mAtypically at 5 Vdc help make this sensor energy efficient.

Specifications:

• Operating Voltage: 2.3V ~ 5.3V
• Dimension: 27.0mm * 15.5mm
• Mounting holes size: 2.0mm
