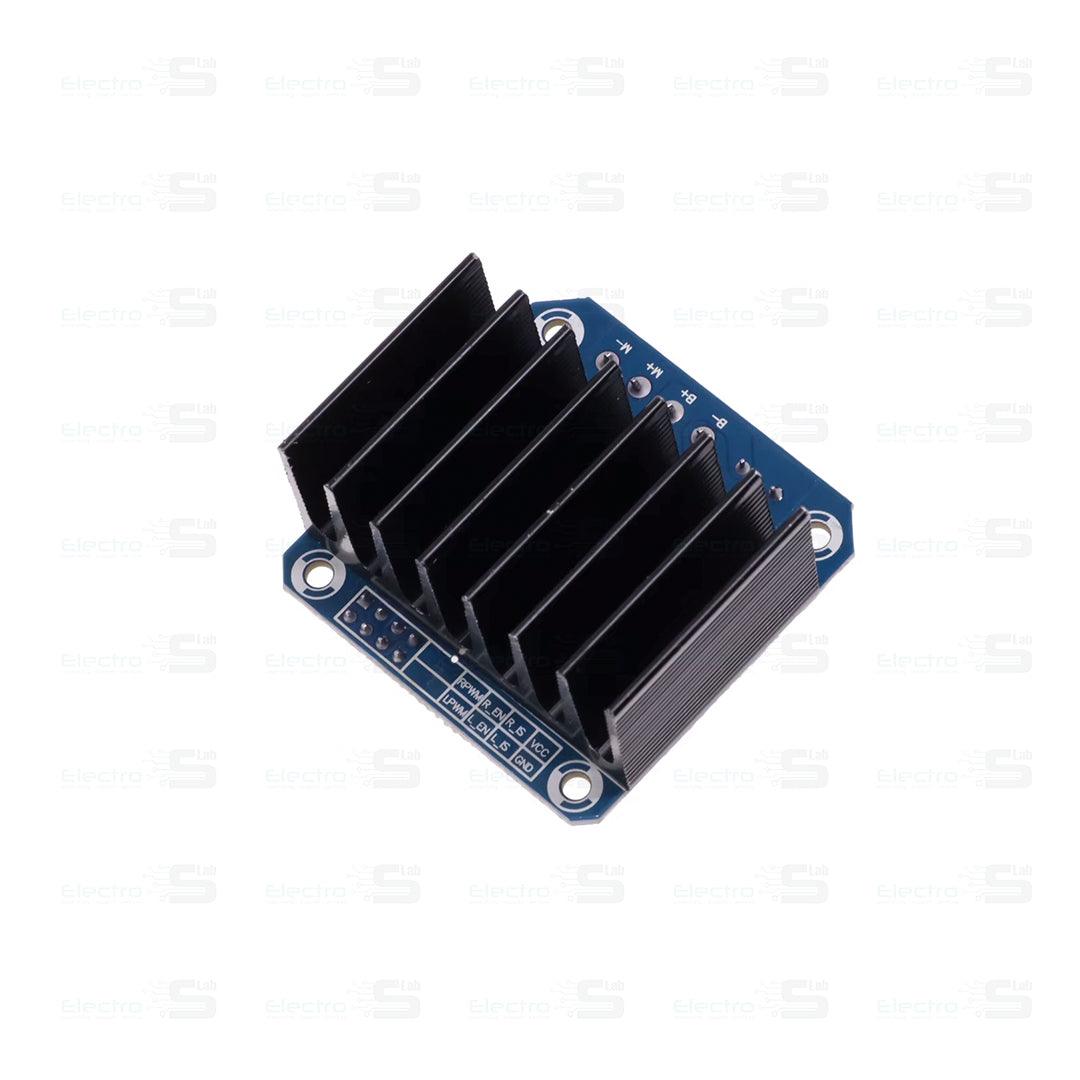

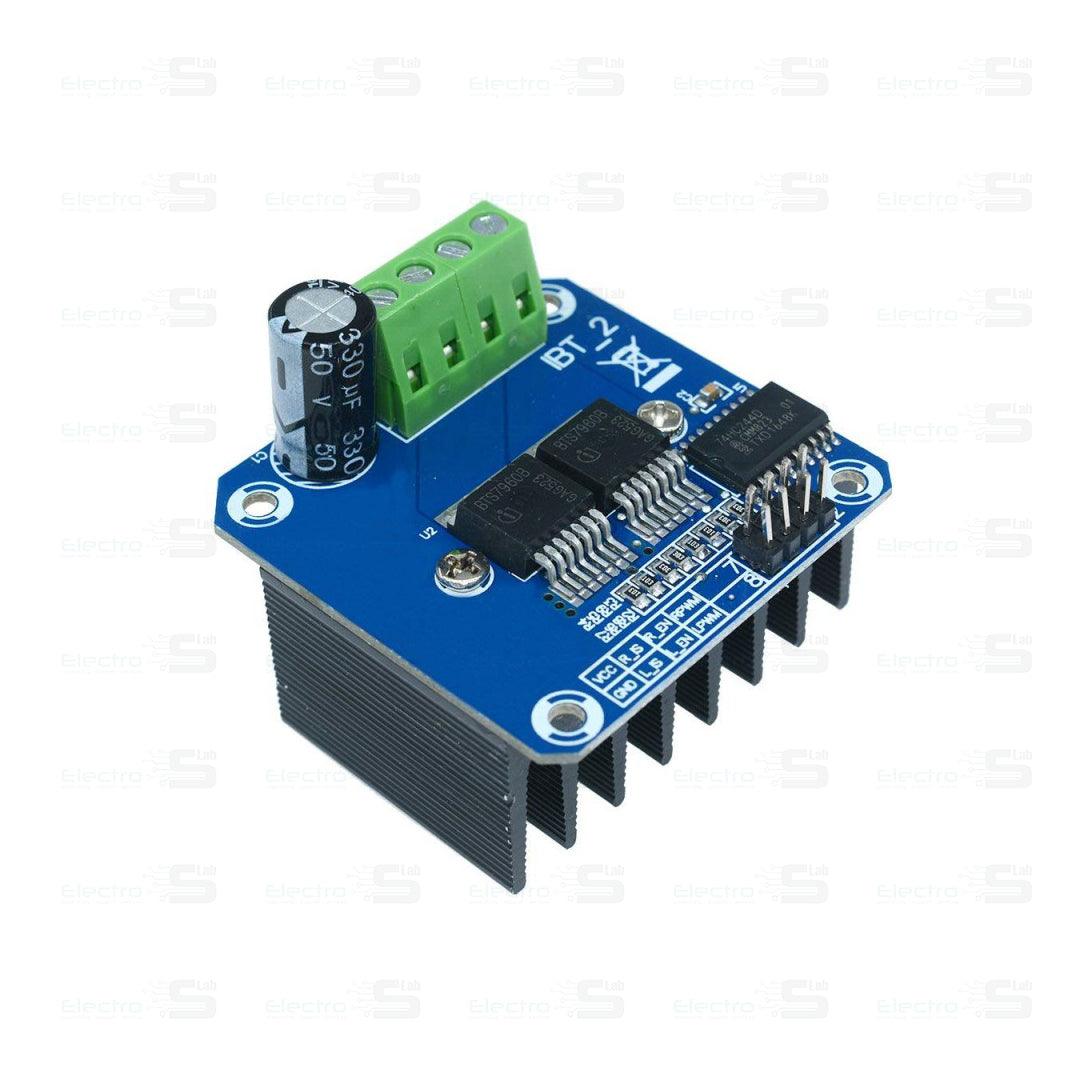

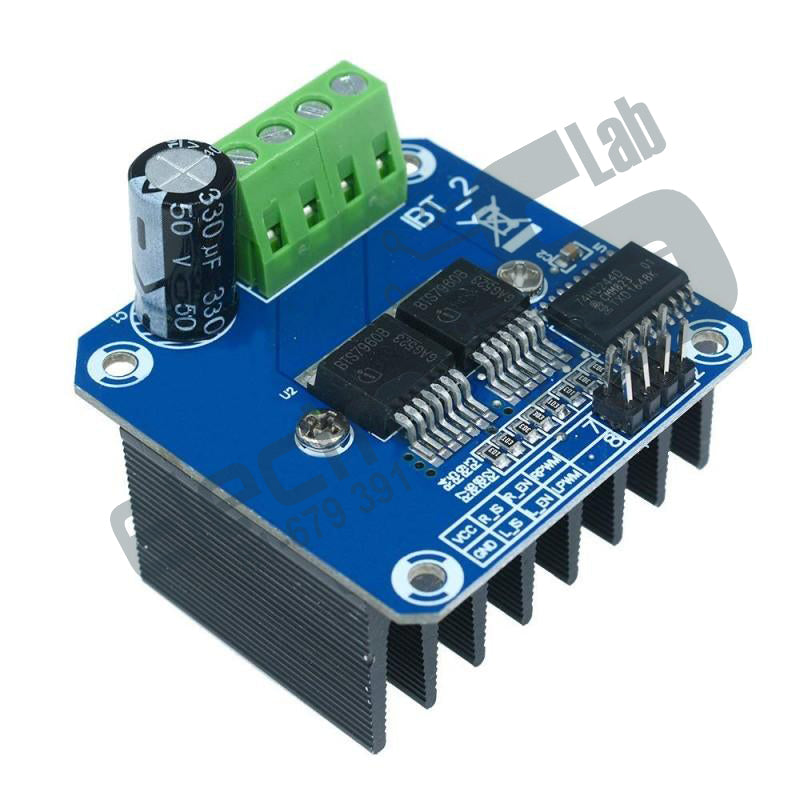

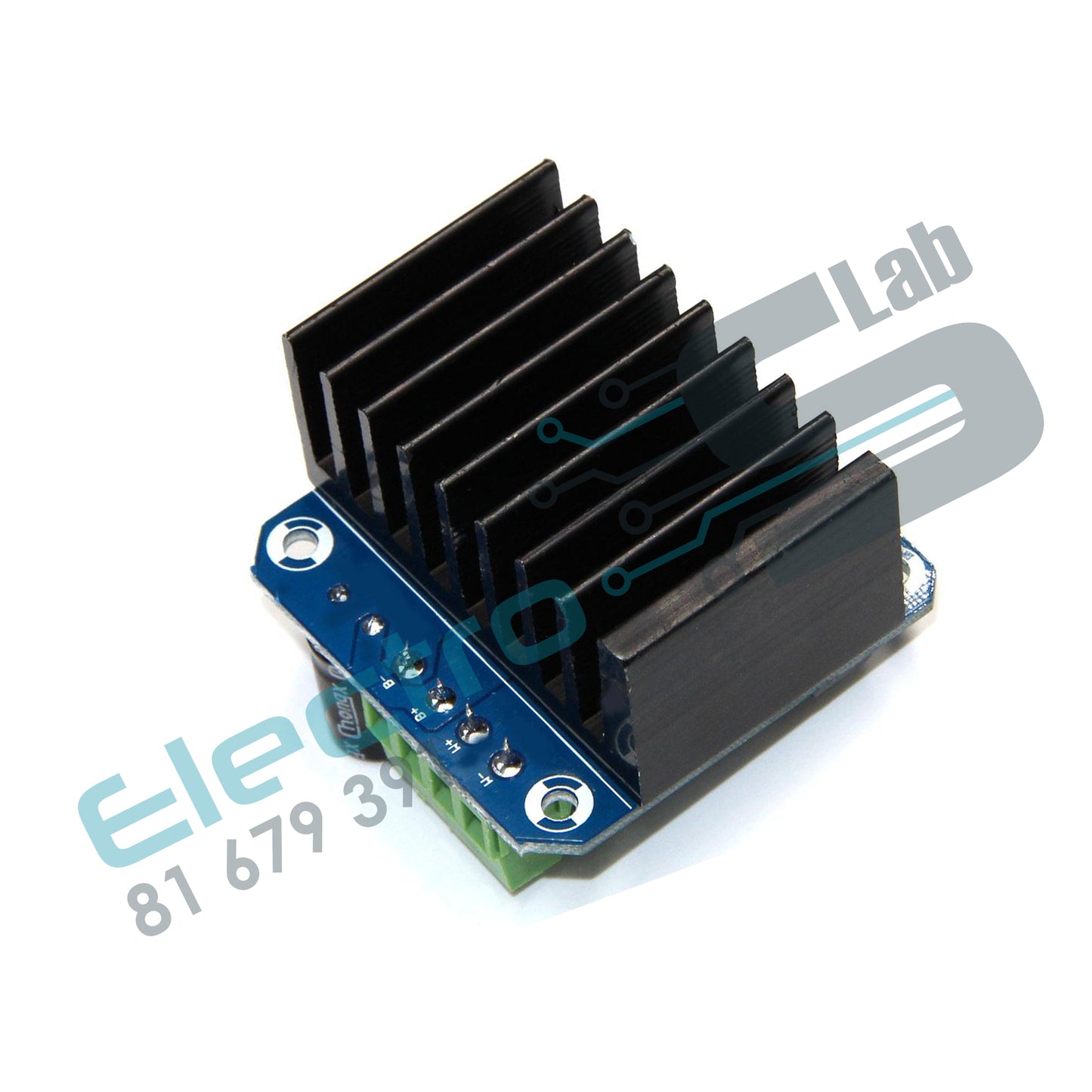

DC Motor Driver BTS7960

The BTS7960 is a fully integrated high current H bridge module for motor drive applications. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against overtemperature, overvoltage, under-voltage, overcurrent and short circuit. The BTS7960 provides a cost optimized solution for protected high current PWM motor drives with very low board space consumption.

Specifications:

• Input Voltage: 6 ~ 27Vdc.
• Driver: Dual BTS7960 H Bridge Configuration.
• Peak current: 43-Amp.
• PWM capability of up to 25 kHz.
• Control Input Level: 3.3~5V.
• Control Mode: PWM or level
• Working Duty Cycle: 0 ~100%.
• Over-voltage Lock Out.
• Under-voltage Shut Down.
• Size: 46mm x 46mm x 38mm.
• Weight: ~66g.
