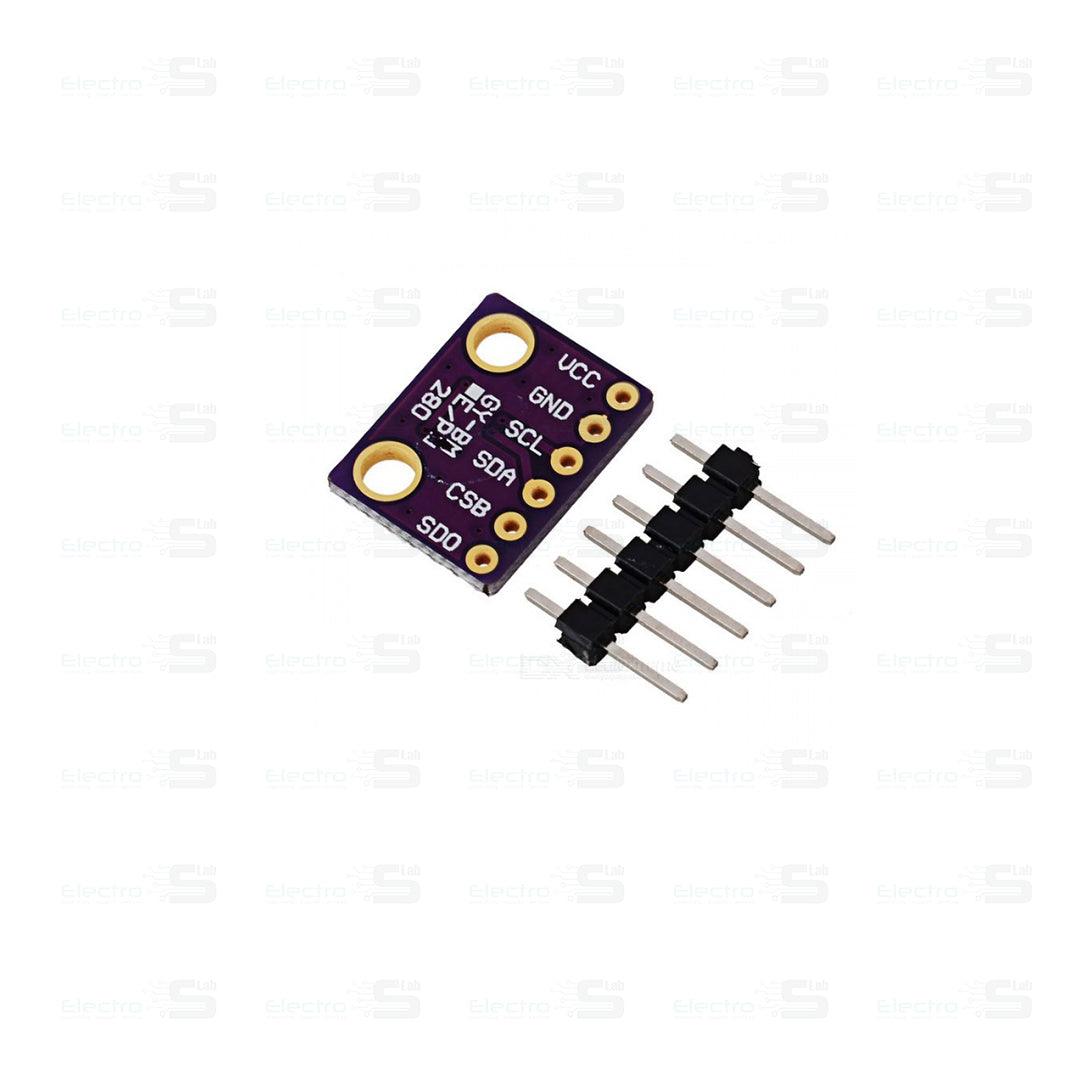

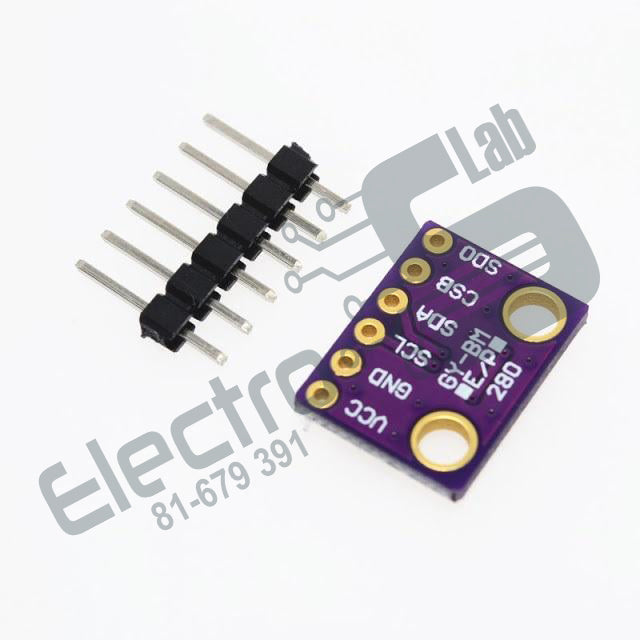

High Precision Atmospheric Pressure Sensor Module GY-BMP280

The GY - BMP280 ( GY BMP280 / BMP 280 ) Barometer Sensor is a breakout board for Bosch BMP280 high-precision and low-power digital barometer. It can be used to measure temperature and atmospheric pressure accurately. It can be connected to a microcontroller with I2C. BMP280 is an absolute barometric pressure sensor especially designed for mobile applications. Its small dimensions and its low power consumption allow for the implementation in battery powered devices such as mobile phones, GPS modules or watches.

As its predecessor BMP180, BMP280 is based on Bosch’s proven Piezo-resistive pressure sensor technology featuring high accuracy and linearity as well as long term stability and high EMC robustness. Numerous device operation options offer highest flexibility to optimize the device regarding power consumption, resolution and filter performance. A tested set of default settings for example use case is provided to the developer in order to make design-in as easy as possible.

Specifications:

• Model: GY-BMP280-3.3
• Chip: BMP280
• Power supply:  3V/3.3V DC
• Peak current: 1.12mA
• Air pressure range : 300-1100hPa (equi. to +9000…-500m above sea level)
• Temperature range: -40 … +85 °C
• Digital interfaces: I²C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
• Current consumption of sensor BMP280: 2.7µA @ 1 Hz sampling rate
