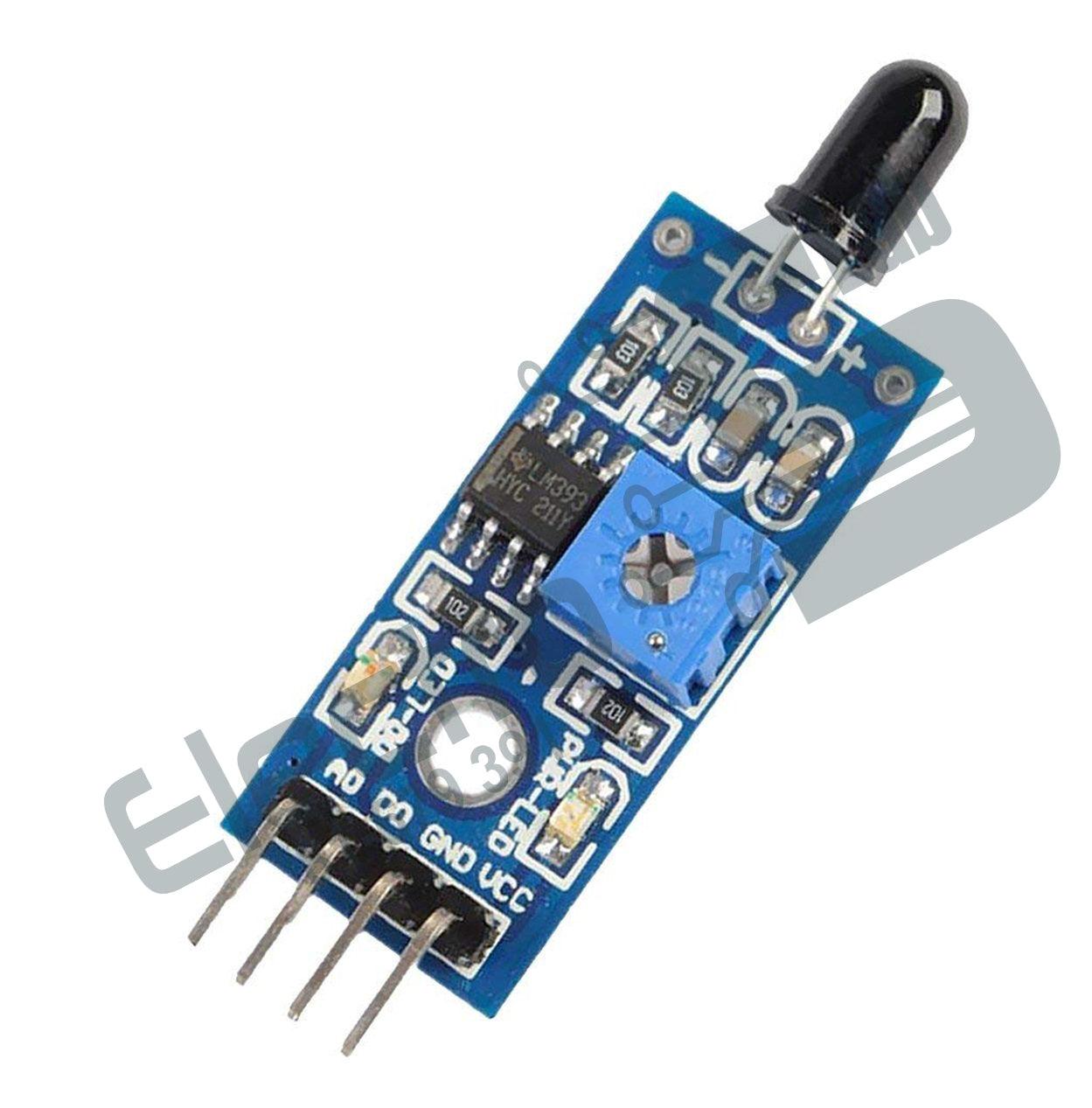

Infrared Flame Detection Sensor Module

Flame Sensor can be used to detect fire source or other light sources of the wavelength in the range of 760nm - 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. The sensor can be a great addition in a fire fighting robot, it can be used as a robot eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW.

Specifications:

• Detection distance: 20cm (4.8V) ~ 100cm (1V)
• Detection angle about 60 degrees, it is sensitive to the flame spectrum.
• Comparator chip LM393 makes module readings stable
• Adjustable detection range
• Operating voltage: 3.3V-5V
• Digital and Analog Output
• DO digital switch outputs (0 and 1)
• AO analog voltage output
