Electroslab
KQ-130F Power Line Carrier Module
KQ-130F Power Line Carrier Module
Tags
Regular price
$18.00 USD
Regular price
Sale price
$18.00 USD
Unit price
/
per
Sale
Sold out
Taxes included.
Couldn't load pickup availability

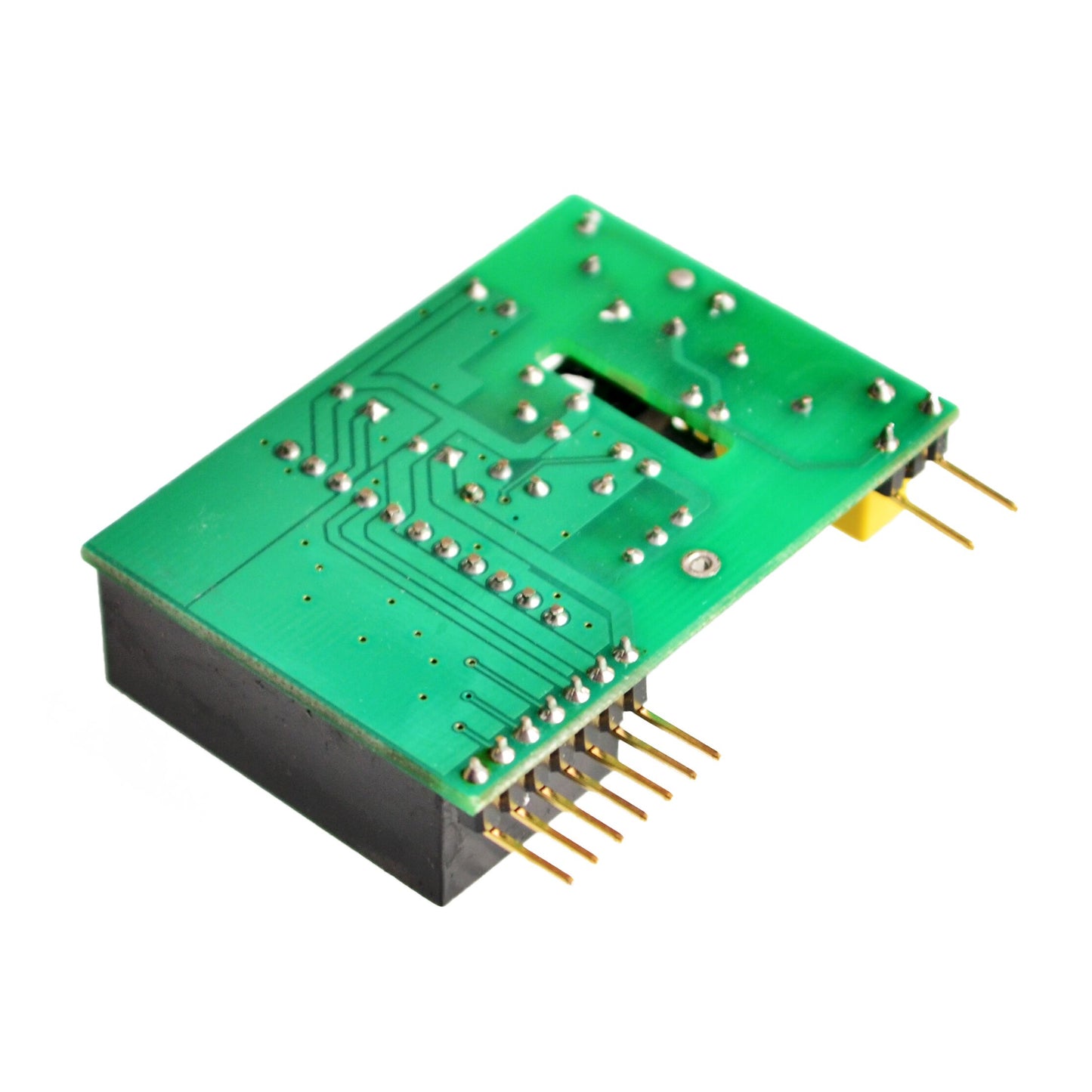

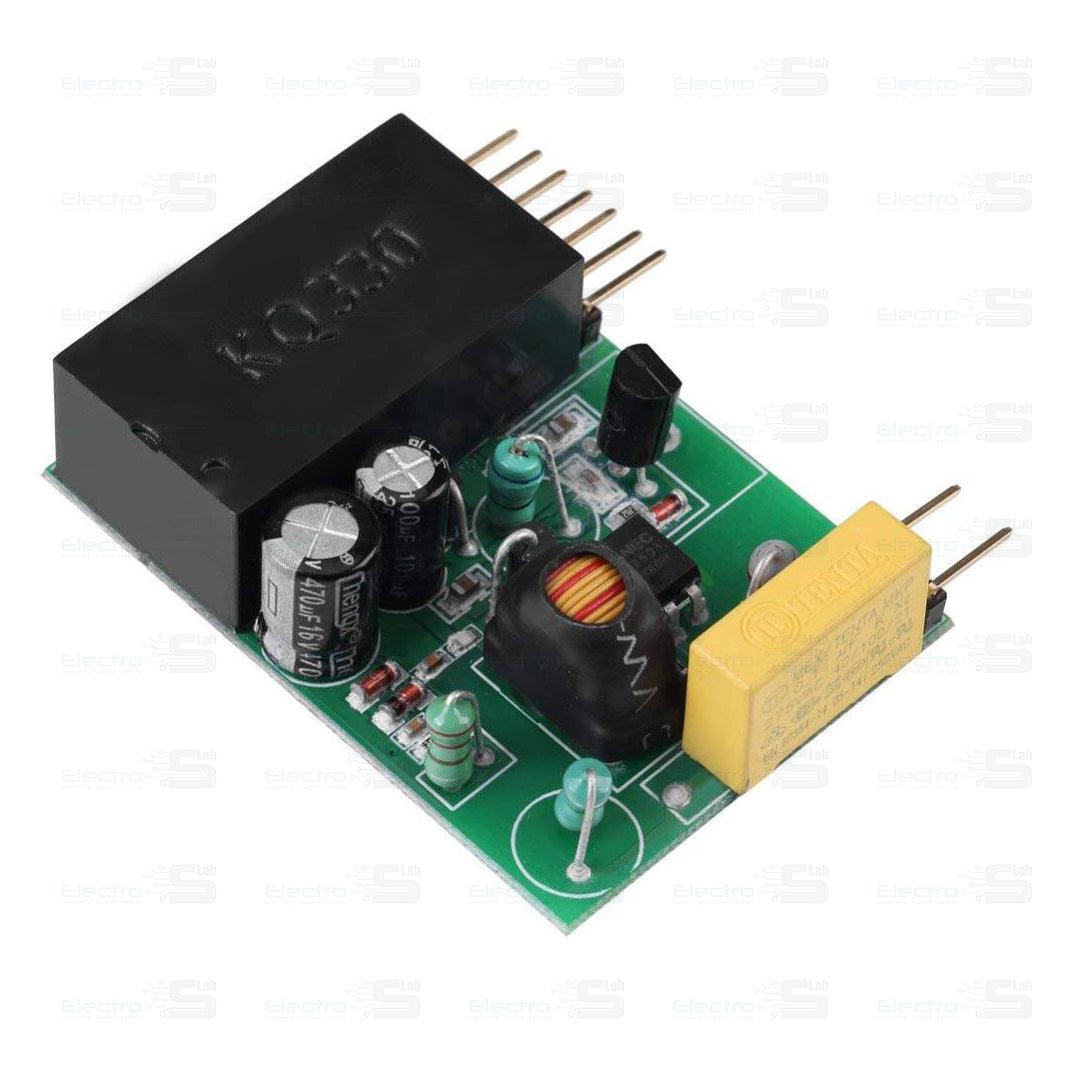

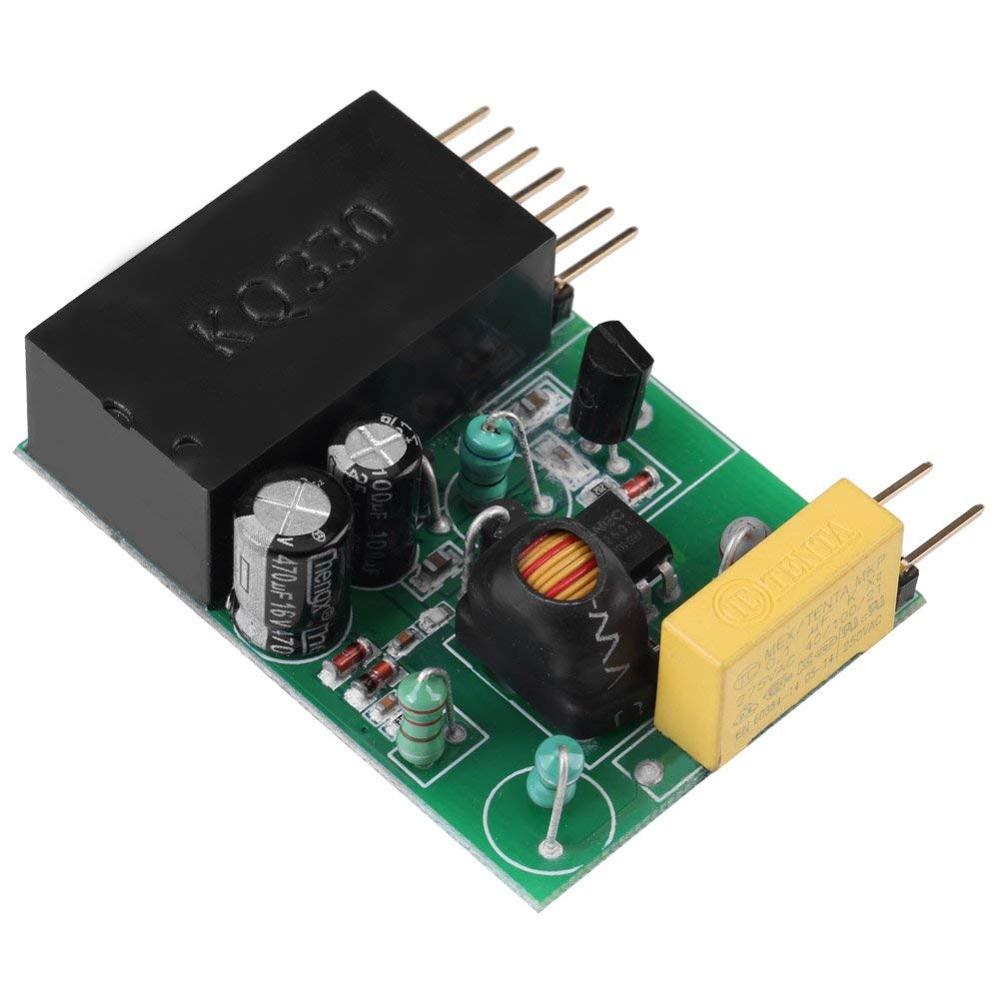

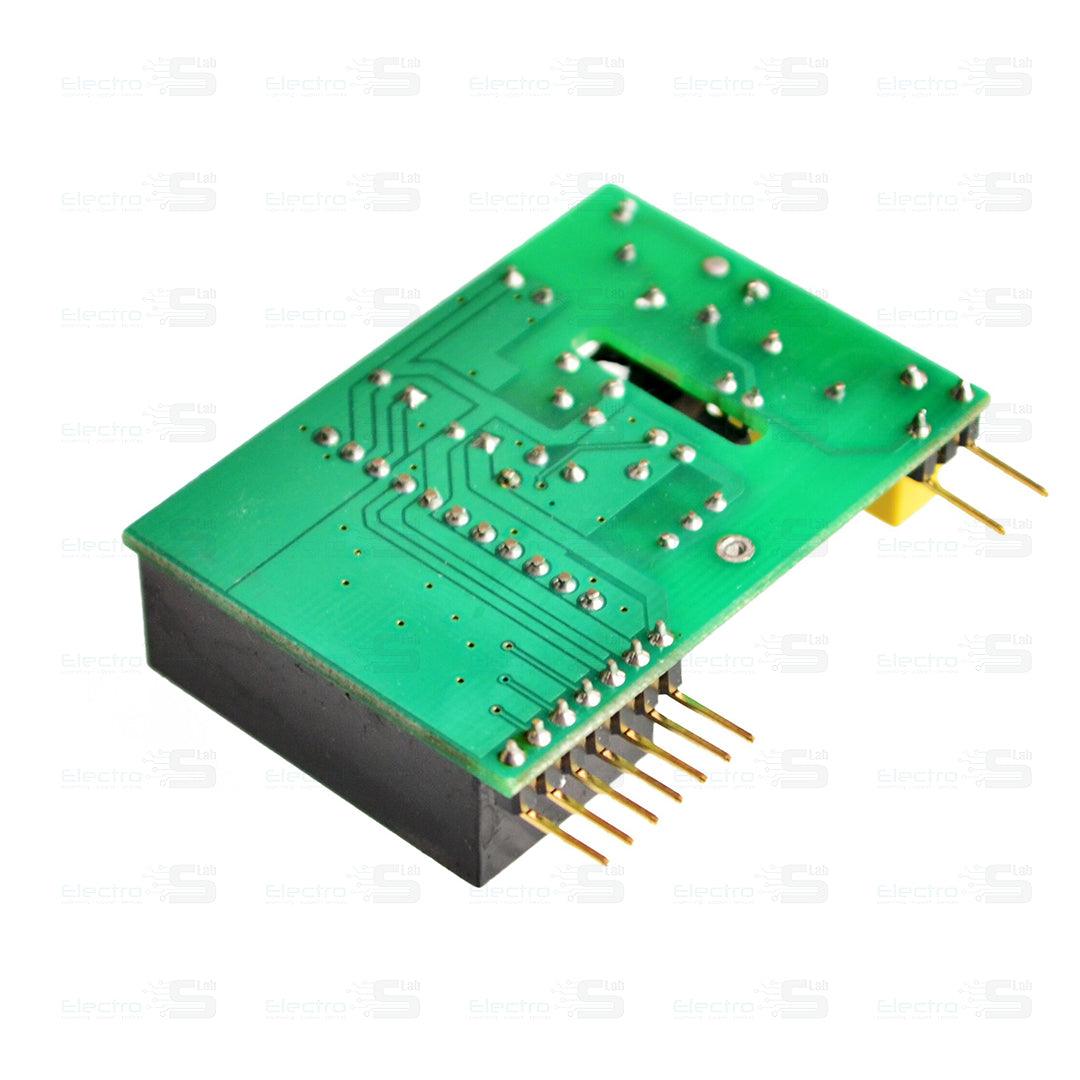

KQ-130F is a single-row 9-pin small-volume high-performance zero-crossing carrier data transceiver module. It is a cost-effective carrier module specially designed and developed for reliable transmission of data under 220V AC, strong interference, strong attenuation, and long-distance requirements. Suitable for meter reading, street lighting, smart home, fire protection, building control and other applications where power lines are required to transmit data.
Features:
- Integrated KQ-330F module and peripheral circuit carrier board, no need for other coupling components, directly connected to 220V AC. The outer dimensions are 53×38×17 mm (L×D×H), and the single row of pins is led out.
- The working frequency is 120~135KHZ, and the interface baud rate is 9600bps. The actual baud rate is 100bps, 250 bytes of the buffer.
- Temperature range: -25 ° C ~ +70 ° C Humidity ≤ 90%
- Power supply: DC +5V Receive: ≤11mA When transmitting: ≤300mA
