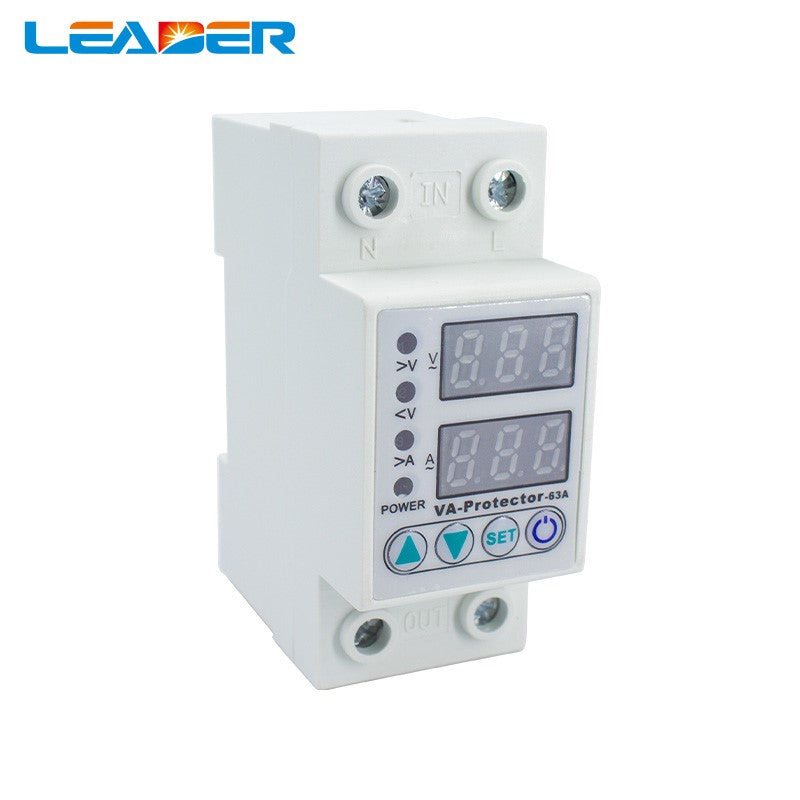

Leader LDVP1-63A Voltage-Amp Protector 63A

Leader LDVP1-63A Voltage-Amp Protector 63A

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out
Tax included.

LEADER® voltage protector is intelligent over voltage and over current automatic reclosing protector is a comprehensive intelligent protector that integrates over voltage protection. Under voltage protection, under voltage protection, over current protection. This product can immediately cut off the power supply to the product’s electrical equipment from being burned out in the event of a fault, over current fault, etc. When the circuit returns to normal, the protector will automatically restore power. Over voltage value, under voltage value, over current value. The delay value of this product can be set by yourself. The corresponding parameters can be adjusted according to the actual situation of the user. It is widely used in occasions where the power system is unstable.

  • Cut-off value of overvoltage action: 260~270V AC
  • Recovery value of overvoltage: 245±5CVAC
  • Cut-off value of under voltage action: 170±5VAC
  • Recovery value of under voltage: 183±5VAC
  • Delay of power transmission after power failure: 1 ~ 3 minutes
  • Action delay time: 1 ~ 6 seconds
  • Power consumption:≤2W
  • electrical machinery life: ≥ 100,000 times


Model number LDVP1-63A Range of time delay 1s-600s adjustable
(default 30s)
Rated voltage AC220V/50/Hz Power consumption ≤2W
Rated current 1A-63A adjustable
(default 63A)
Electrical mechanical life ≥5000 times
Over-voltage action
cut-off value
230V-300V adjustable
(default 280V)
Dimensions 85*36*66mm
Under-voltge action
cut-off value
210V-140v adjustable
(default 160V)
Operation temperature -50℃-50℃
