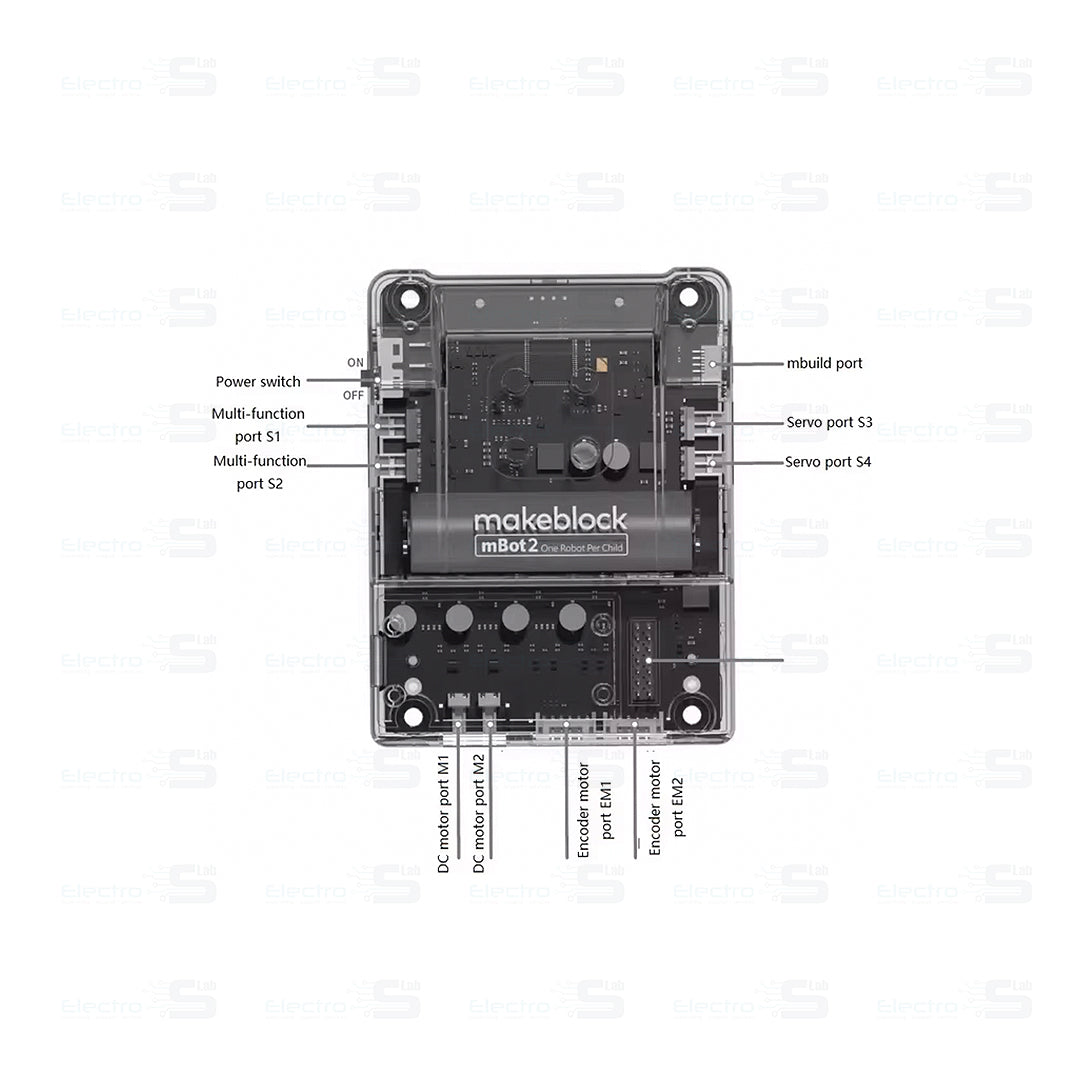

mBot2 Shield is equipped with a built-in rechargeable lithium-ion battery that can supply power for CyberPi. With the multi-function, servo, and motor ports, it can drive motors, servos, and LED strips.
Features
| Specification | Description |
| Microprocessor | GD32F403 |
| Battery |
3.7 V, 2500 mAh Packaging: Bundle (battery included) Battery type: Lithium-ion polymer battery Battery weight: 44.6 g Watt hours per battery (wh): 9.25 wh Lithium content: 1.07 g Lithium battery voltage: 3.7 V |
| Input voltage and current | 5 V, 2000 mA (fast charging)5 V, 500 mA (charging in operation) |
| Output voltage and current | 5 V, 6 A |
| Battery life | 3–6 hours (in general application scenarios, just for reference) |
| Charging time | 80 minutes (in fast charging mode) |
| Battery endurance | The capacity of the battery is remained at 70% or higher after it is charged and used for 800 times (at 20±5℃, 0.2 C discharging). |
| Communication mode |
Serial communication: between the main control board and extension board Digital signals: at the digital servo port PWM signals: at the DC motor port |
| Hardware version | V1.0 |
