Electroslab

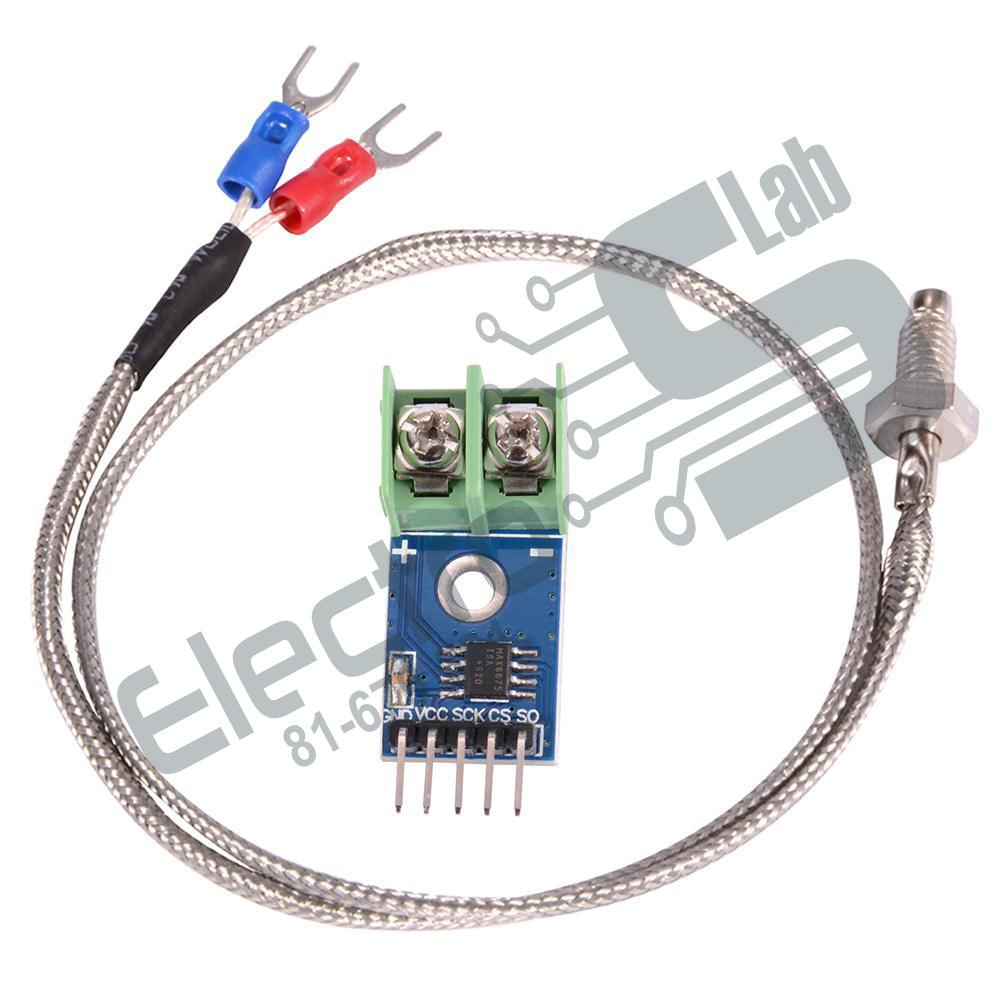

MAX6675 Sensor with Probe K Type Thermocouple

MAX6675 Sensor with Probe K Type Thermocouple

Tags
Regular price $8.50 USD
Regular price Sale price $8.50 USD
Sale Sold out
Taxes included.

The MAX6675 temperature sensor can measure high temperatures with very low resolution but with high precision. MAX6675 K-Type Thermocouple Temperature Sensor performs cold-junction compensation and digitizes the signal from a type-K thermocouple. The data is output in a 12-bit resolution, SPI™-compatible,read-only format. MAX6675 converter resolves temperatures to 0.25°C, allows readings as high as +1024°C, and exhibits thermocouple accuracy of 8 LSBs for temperatures ranging from 0°C to +700°C.

Specifications:

  • Voltage: 3 V to 5 V
  • Operating Current: 50 mA
  • Temperature measured from 0 °C to 1024 °C with a resolution of 0.25 °C
  • ADC resolution of 12 bits
  • High differential input impedance
  • Thermocouple type K
  • SPI communication
  • Connection interrupted via thermocouple detection
