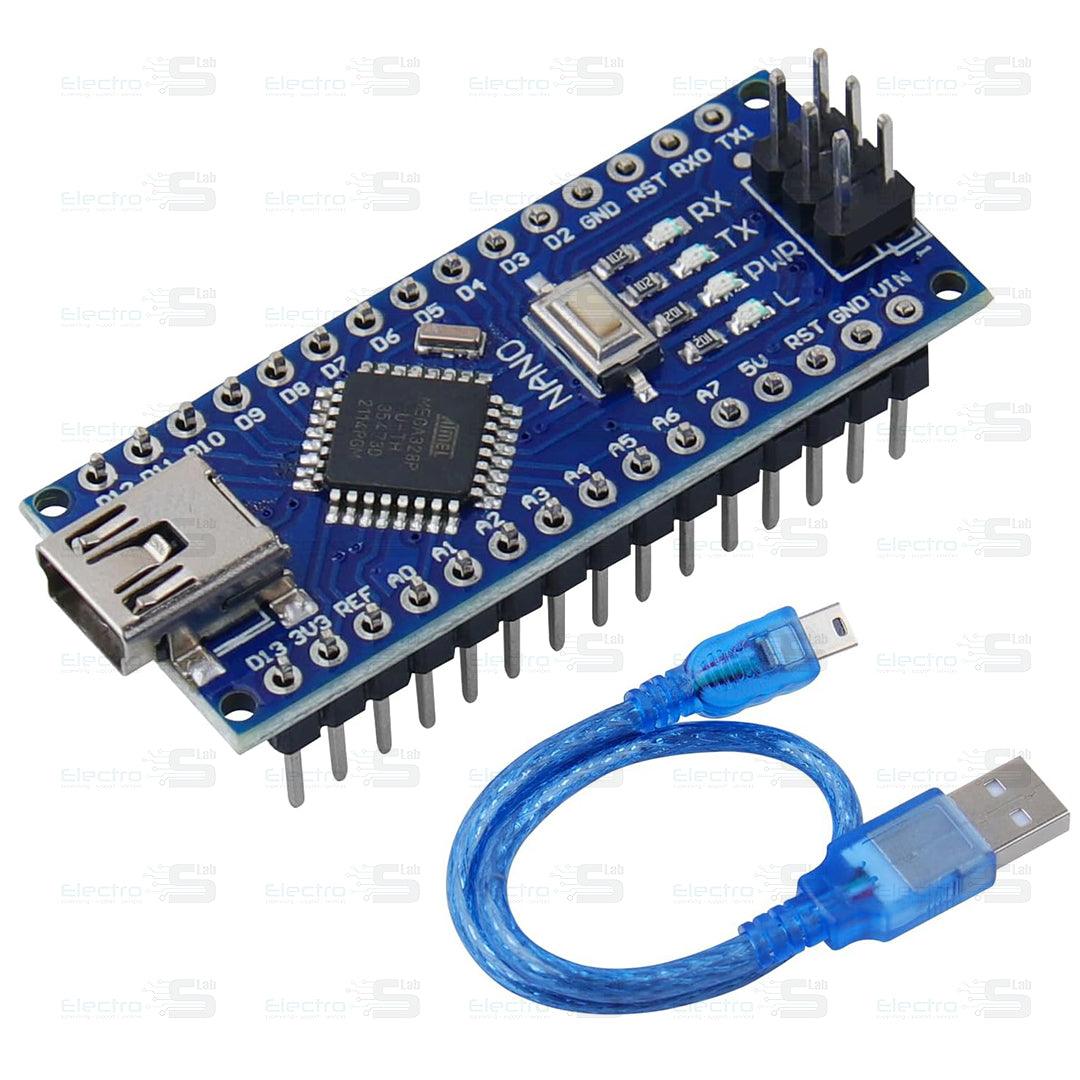

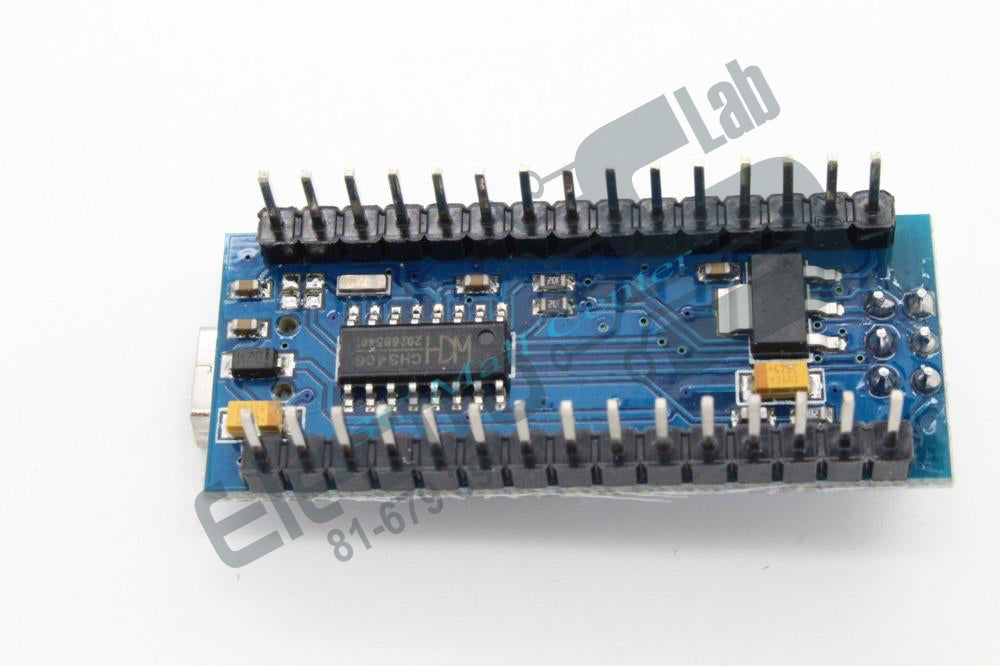

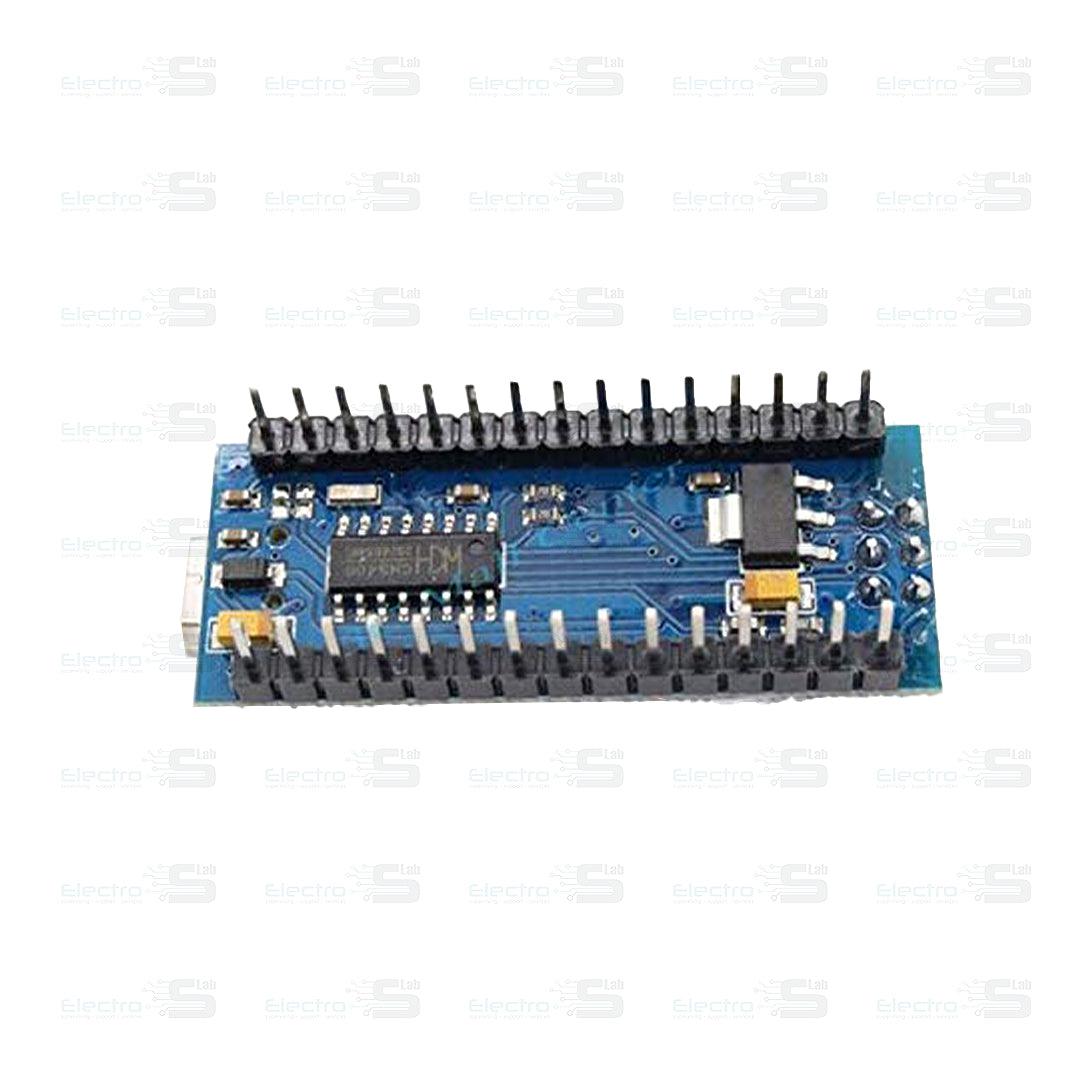

Arduino Nano V3 CH340 Development Board + Mini USB Cable

Product SKU: C019
$7.00
Out of Stock
We will contact you when the product is available.
  • Description
  • Shipping & Returns
  • Shipping & Return

This development board provides small plate with the same powerful microcontroller Arduino Uno. It is compatible with Arduino and ideal for fast prototyping and easy integration. Ideal for small projects and has the advantage that it can be programmed via USB.

Specifications:

  • Voltage: 5V
  • Supply voltage limiter supported by: 7V - 12V
  • I / O pins: 14
  • PWM pin 6 (out of 14 I / O)
  • ADC pin: 8 (out of 14 I / O)
  • Flash Memory: 32 KB (of which 2KB used by bootloader)
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Current I / O pin: 40mA / pin
  • Communication TWI, SPI and UART
  • Operating frequency: 16MHz
  • Dimensions: 45mm x 18mm
