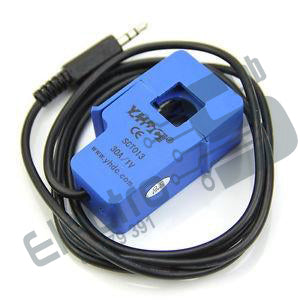

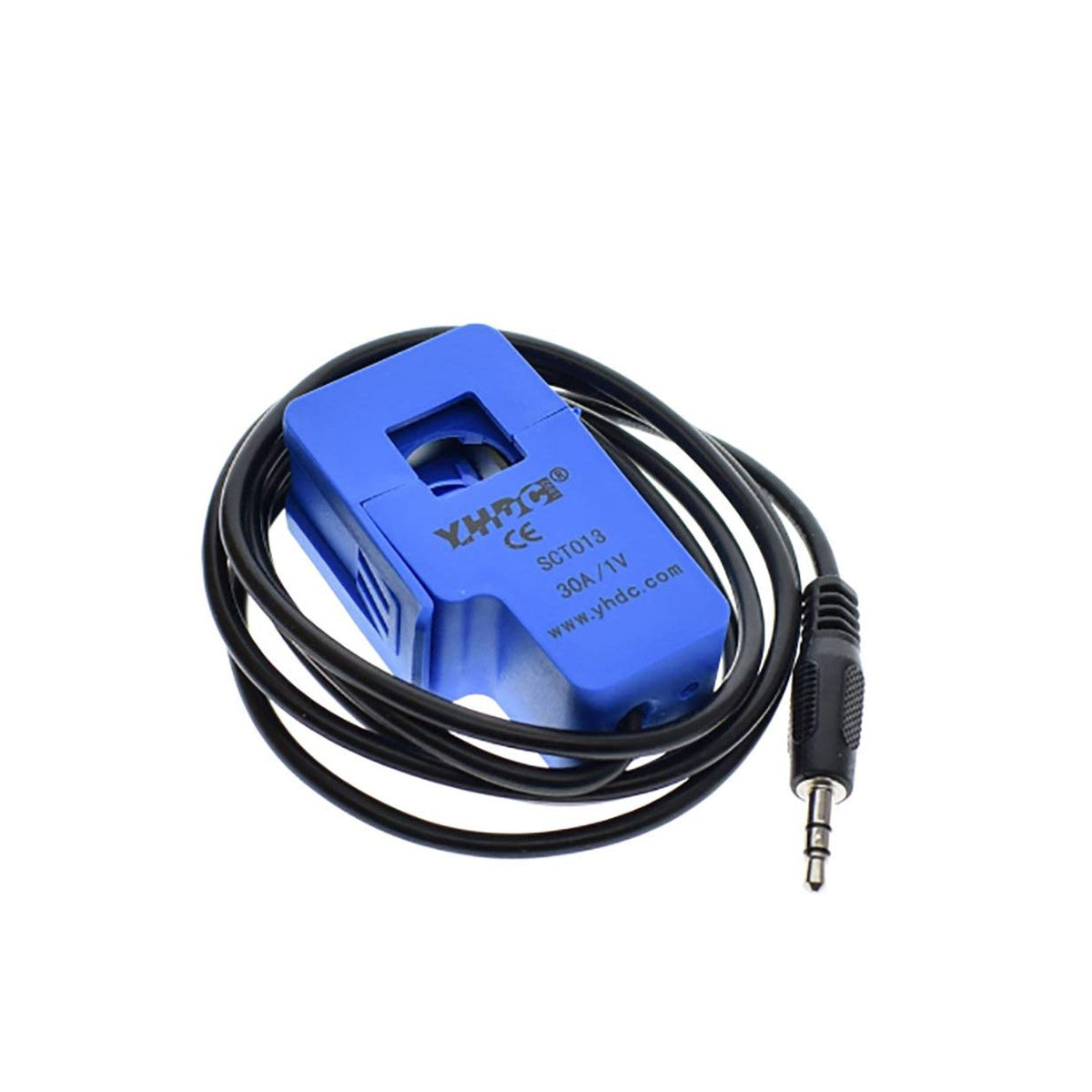

SCT-013-030 AC Current Sensor 30A

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

This Non-invasive AC Current Sensor can measure a load up to 30 Amps AC source by simply clamp the sensor on the live wire or neutral wire. The sensor measures the amount of current flowing through the wire. SCT-013-030 output a small AC signal which can be further used for energy metering application or for over-current protection of AC devices.

Specifications:

• Input Current: 0~30A AC
• Output Mode: 0~1V
• Non-linearity: ±1%
• Build-in sampling resistance (RL): 62Ω
• Turn Ratio: 1800:1
• Resistance Grade: Grade B
• Work Temperature: -25°C ~ ﹢70°C
• Dielectric Strength (between shell and output): 1000V AC/1 min 5mA
