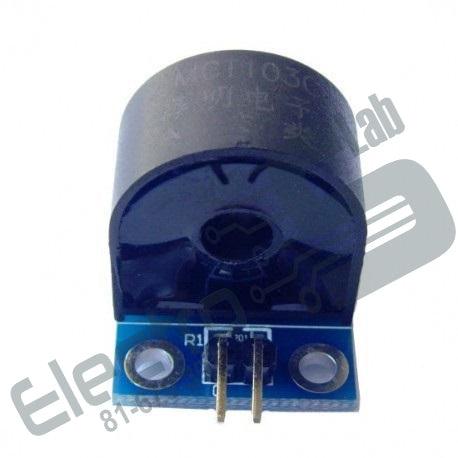

Single Phase 5A AC Current Sensor

Current sensors operate as the sealed secondary of a current transformer while the conductor carrying the current to be measured functions as a one turns primary. Measurement accuracy can be improved by increasing the number of primary turns. Applications include detection of branch circuit overload and load drop or shutdown.

It is a line of fully integrated Hall-effect current sensor IC that provide highly accurate, low noise output voltage signals that are proportional to an applied AC or DC current. These ICs are in high volume production in many applications, including automotive HEV inverters and electronic power steering (EPS) systems, and in industrial and consumer inverters.

Current sensor ICs allow design engineers to use Hall-effect-based current sensor ICs in new applications where increased energy efficiency or new operating features are required.

Specifications:

• Rated Input Current: 5A
• Rated output current: 5mA
• PCB size: 18.3 x17 (mm)
• Linear range: 0 ~ 10A (100 ohms)
• Linearity: 0.2%
• Precision: 0.2
• Uses Insulation Voltage: 3000 V Measure
• Sealing material: epoxy resin
• Operating temperature: -40 ℃~ + 70 ℃
