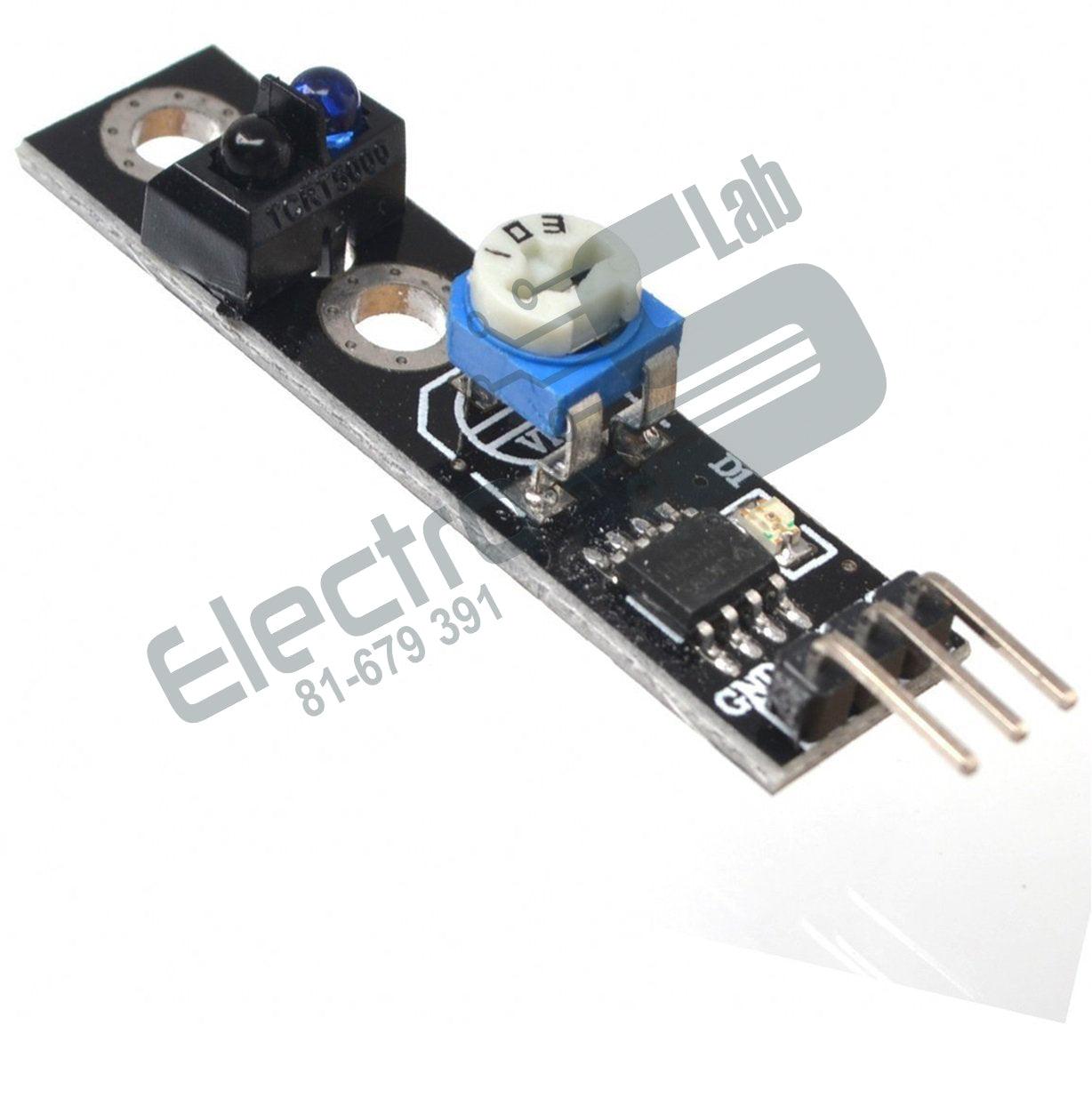

TCRT5000 Tracking Sensor Module

This TCRT5000 Single Channel Line Tracking Sensor Module is a great detector for a line-following robot. TCRT5000 Single Channel Line Tracking Sensor Module is a carrier board for TCRT5000 reflective optical sensor. Although it is designed for use with line-following robots, it can be used in mini-sumo robots for line control. The board has a digital output.

Specifications:

• Working voltage: 3.3 V to 5V
• Output analog voltage (0 to 5 v)
• Digital switch output (0 and 1)
• Small board PCB size: 3.2 cm * 1.4 cm
• Comparator USES the LM393 chips
• Supply Current: ≥ 20mA
• Optimal Sensing Distance: 3mm
