Electroslab

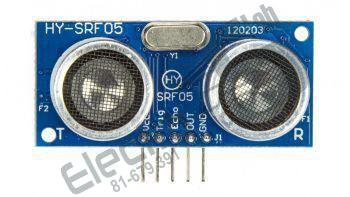

HY-SRF05 Ultrasonic sensors 5pin

HY-SRF05 Ultrasonic sensors 5pin

Tags
Regular price $3.00 USD
Regular price $4.00 USD Sale price $3.00 USD
Sale Sold out
Taxes included.

HY - SRF05 ( HYSRF05 ) module is commonly used for obstacle detection and avoidance, also for distance measurement.  Since they use sound waves for detection they are not sensitive to light sources or optically reflective surfaces like IR can be.  In addition, by using sound instead of light, it is possible to measure the time that it takes for the sound to be echo’d back and therefore the distance to the object can be calculated with a fair amount of accuracy which can be quite handy.

Specifications:

  • Voltage :DC5V
  • Working current :15mA
  • Working frequency: 40Hz
  • Farthest range : 4.5m
  • The most nearly range : 2cm
  • Measuring Angle : 15 degree
  • The input trigger signal : the TTL pulse of 10us
  • The input echoes signal : output TTL level signal, proportional to the range
