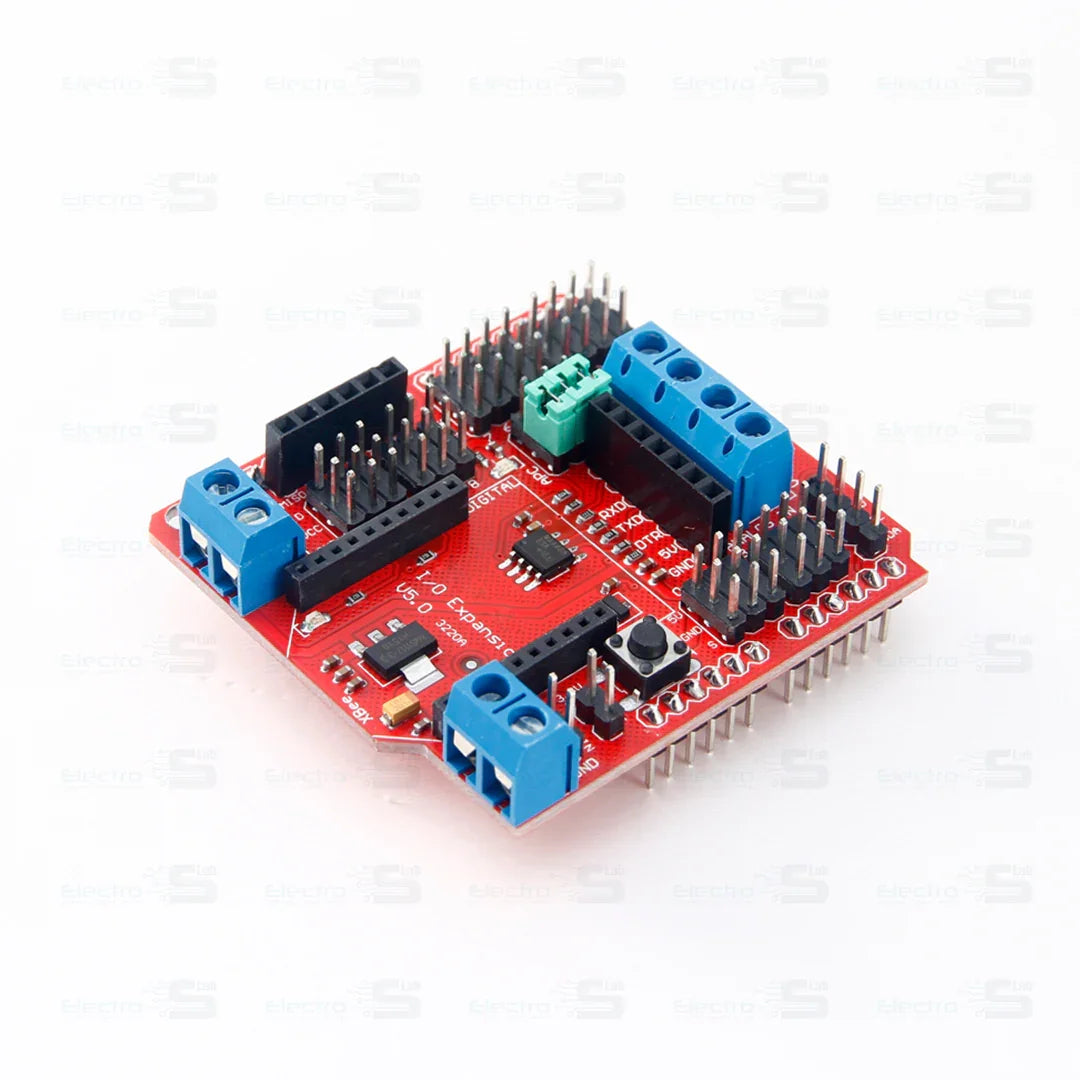

Xbee Sensor Shield V5

XBee IO Expansion Shield is a multi-function sensor expansion board that is Arduino compatible.

It not only expands the existing interfaces such as data/analog port on the Arduino board, IIC interface, SPI interface, but also the RS485, SD card module interface, Xbee/Bluetooth Bee Bluetooth wireless data transmission interface and APC220/Bluetooh V3 Bluetooth wireless data transmission interface which makes the connection of most sensors to Arduino very easily.

It can do you a favor in your electronic production with Arduino Uno, Duemilanove, Mega 1280 and 2560.

Features :

• Expand 14 digital IO interface (12 steering gear interface)and power
• six analog IO interfaces and power
• One digital port interface for external power supply terminals
• Digital port external power supply and on-board electrical automatic switch
• One external power input terminals and one input needle
• RS485 interface (D0-RX, D1-TX, D2-EN)
• Comes with a Reset button
• XBee wireless digital interface
• APC220 wireless digital interface
• IIC/the I2C/TWI interface (A4-SDA, A5-SCL)
• 3.3 V output port
• SD card module interface
• Servo Power connector, can you use for Servo controller board.
