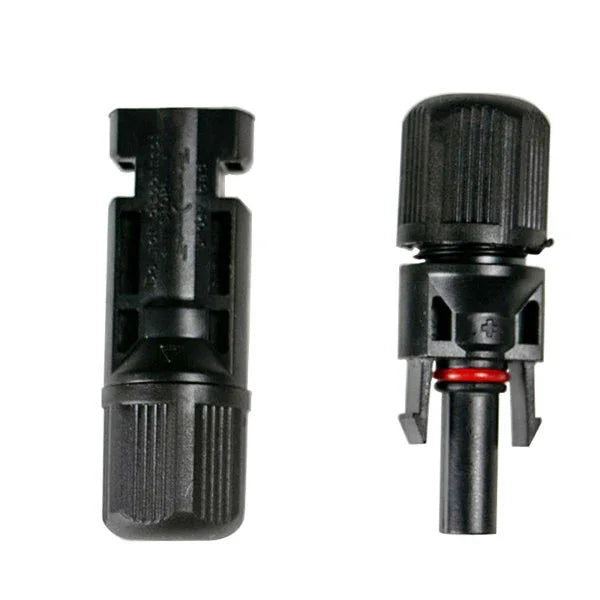

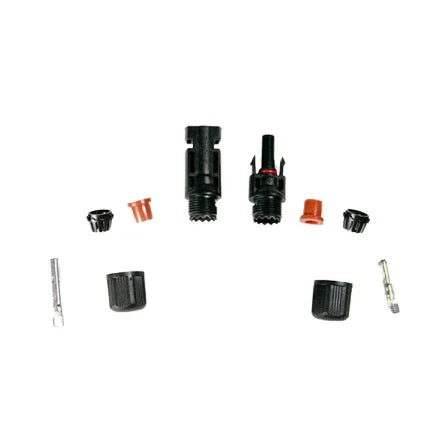

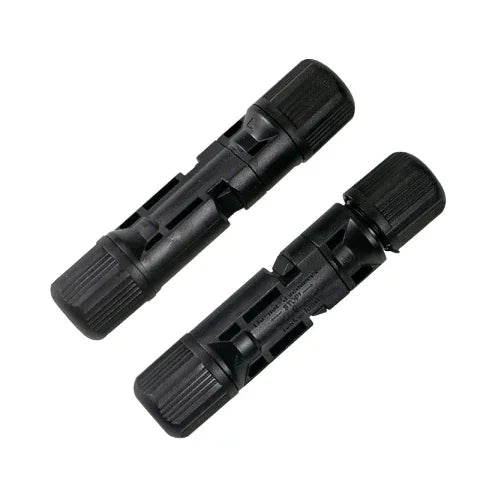

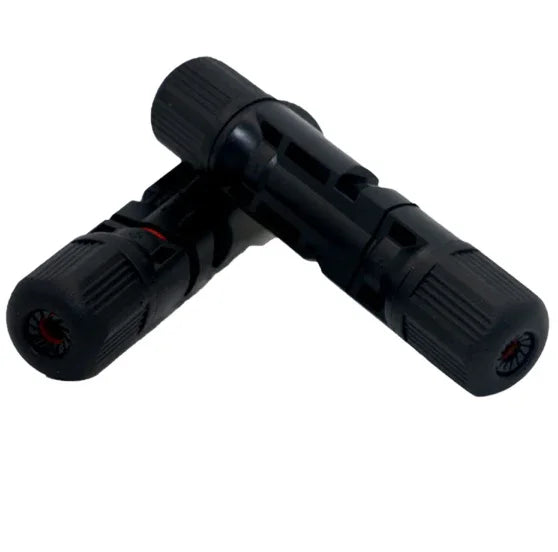

YMC4-1K Photovoltaic Connector PPO 30A 1000V Cable

YMC4-1K Photovoltaic Connector PPO 30A 1000V Cable

Tags
Regular price $1.75 USD
Regular price Sale price $1.75 USD
Sale Sold out
Taxes included.

Product features:

  • Simple on-site processing
  • Mating safety provided by keyed housings
  • Multiple plugging and unplugging cycles
  • High Voltage and Current carrying capacity
  • Waterproof grade: IP67
  • Housing made of PPO material, anti-UV
  • CE approved
  • Competitive price



Technical data:

  • Name: Solar connector
  • Rated current: 30A,45A
  • Rated voltage: 1000v DC
  • Test voltage: 6000V(50Hz, 1min)
  • Overvoltage type/pollution degree: CAT Ⅲ /2
  • Contact resistance of plug connector: 1mΩ
  • Contact material: Copper, Tin-plated
  • Insulation material: PPO
  • Degree of protection: IP67
  • Safety class: Ⅱ
  • Suitable cable: 2.5mm2, 4mm2, 6mm2
  • Insertion force/withdrawal force: ≤50N/≥50N
  • Connecting system: Crimp connection
  • Operating Temperature: -40℃--+85℃
