1000KV Brushless Motor Kit

Brushless Motor Specification:

• XXD A2212 1000KV brushless pioneer motor
• KV: 1000
• Max. Efficiency: 80%
• Max. Efficiency current: 4-10A (> 75%)
• Current capacity: 12A/60 s No
• Load current @ 10 V: 0.5A
• Number of cells: 2-3 li-poly
• Motor size: 27.5*27mm/1.1*1.1in
• Shaft diameter: 3.17mm/0.1in

ESC Specification:

• Output: 30A continuous, burst 40A up to 10 Secs.
• Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery
• BEC: 2A/5V (linear mode).
• Maximum speed: 210,000 rpm for 2-pole BLM, 70,000 rpm for 6-pole BLM, 35,000 rpm for 12-pole BLM. (BLM: brushless motor)
• Size: 45*24*11mm/1.8*0.9*0.4in

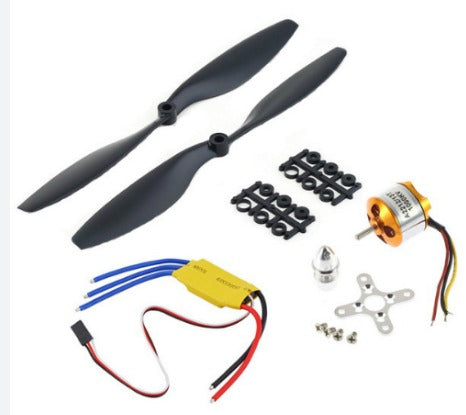

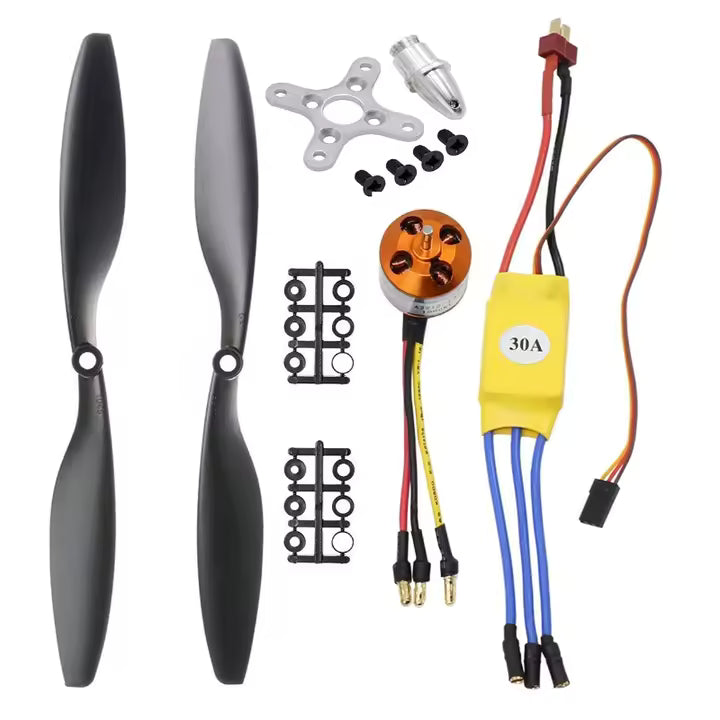

Package Included:

• 1 * A2212 1000KV brushless pioneer motor with mounts
• 1 * 30A Brushless ESC
• 1 * pairs of 1045L/R propellers (black)
