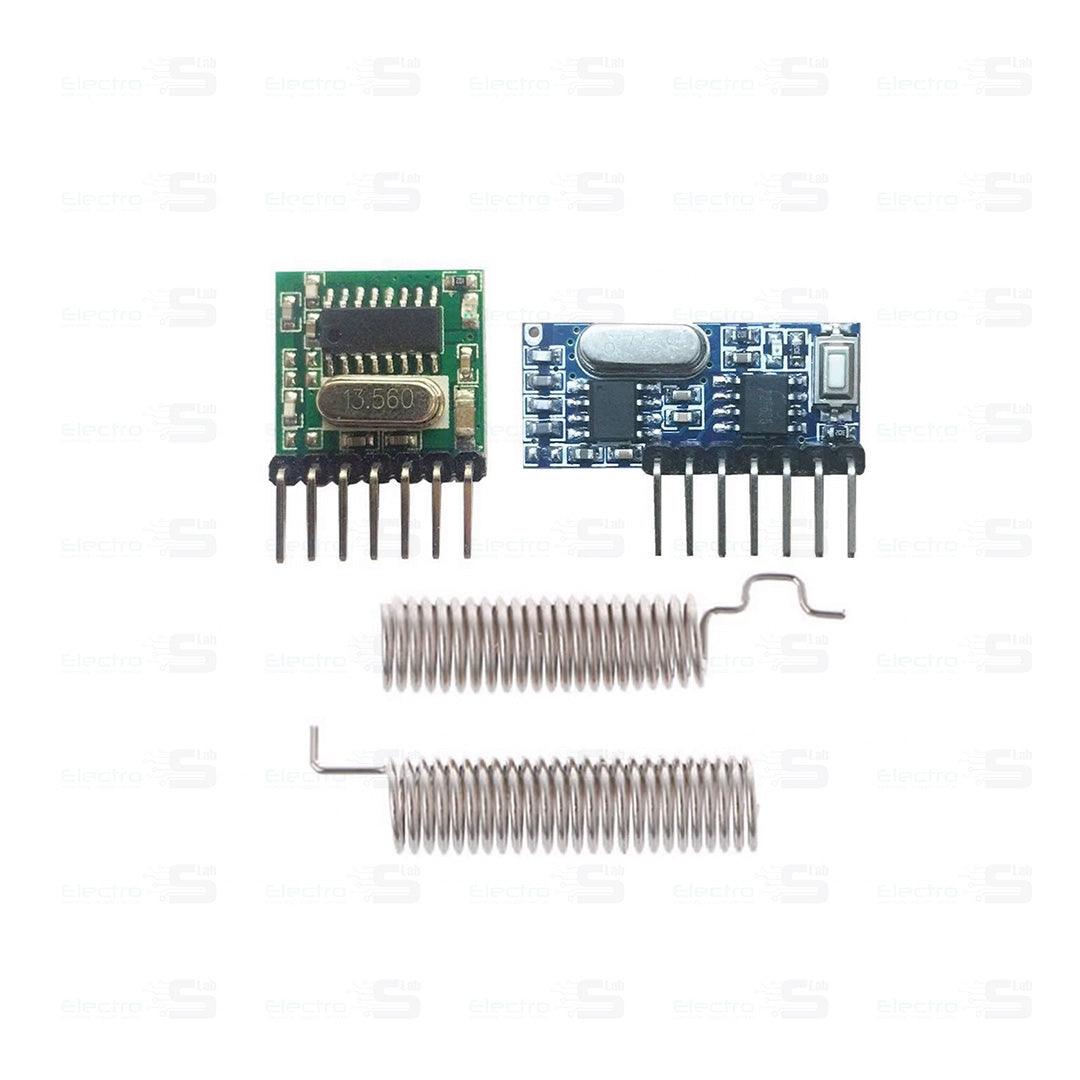

433mhz Wireless Wide Voltage Coding Transmitter 4 Channel Output

433mhz Wireless Wide Voltage Coding Transmitter 4 Channel Output

Regular price $6.00 USD
Regular price Sale price $6.00 USD
Sale Sold out
Tax included.
Specifications:
Transmitter module
Model: TX118SA-4
Transmitting power: 11dbm
Emission current: 10 mA
Fire speed: up to 10KB / S.
Working voltage: DC 3V-24V
Code: EV1527 1527 learning code
Each module has a unique address code, and the address codes of K1~K4 on the same module are the same.
[Receiver Module] Product Model: RX480-E4 (10 packs)
Working voltage: DC3.3~5V
Quiescent current: ≤5mA
Output current: 10 mA
Working frequency: 433MHz
Receive sensitivity: -108dB
Working temperature: -25~75
Working mode: instantaneous mode, self-locking (4-channel switching mode), interlock
Output: The 4-channel CMOS level signal corresponds to the remote control ABCD 4 button.
Pin command
GND: Ground or negative
+ V: DC3.3~5V input
D0: data output
D1: data output
D2: Data output
D3: Data output
VT: output

Receiver module
Model: RX480E-4
Working voltage: DC2.5V-5V
Working current: 3MA
Sensitivity: -108DBM
Rate: MAX 10KB / S.
Working mode: point movement, self-locking, interlocking
Output: The 4-channel CMOS level signal corresponds to the remote control ABCD 4 button.
