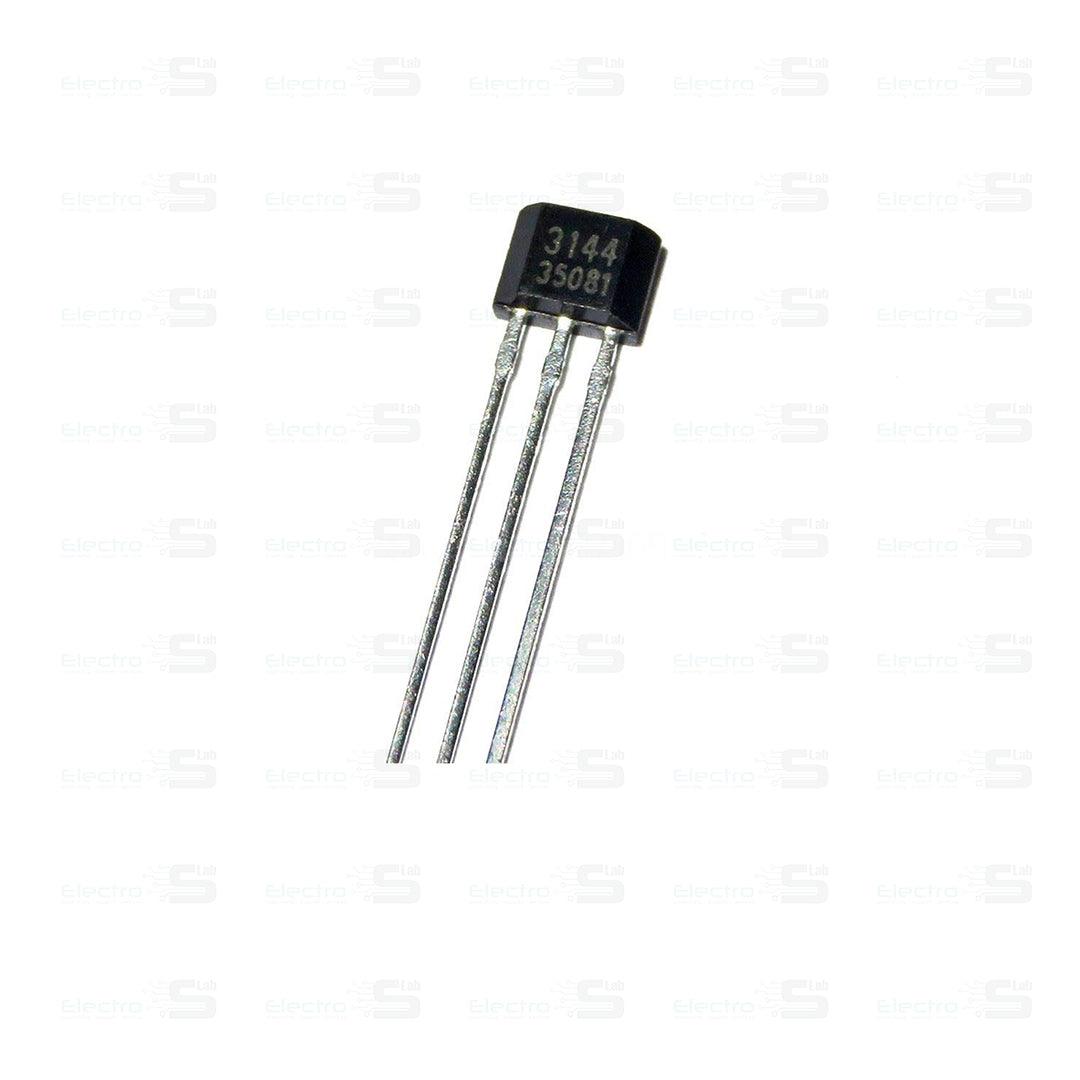

44E A1344EUA-T Hall Sensor

A hall-effect sensor as the name suggests works with the principle of hall-effect and is used to detect magnets. Each side of the sensor can detect one particular pole. It can also be easily interfaced with a microcontroller since it works on transistor logic.

Specifications:

• Digital Output Hall-effect sensor
• Operating voltage: 4.5V to 28V (typically 5V)
• Output Current: 25mA
• Can be used to detect both the poles of a magnet
• Output voltage is equal to operating voltage
• Operating temperature: -40°C to 85°C
• Turn on and Turn off time is 2uS each
• Inbuilt reverse polarity protection
• Suitable for Automotive and Industrial Applications
