Electroslab

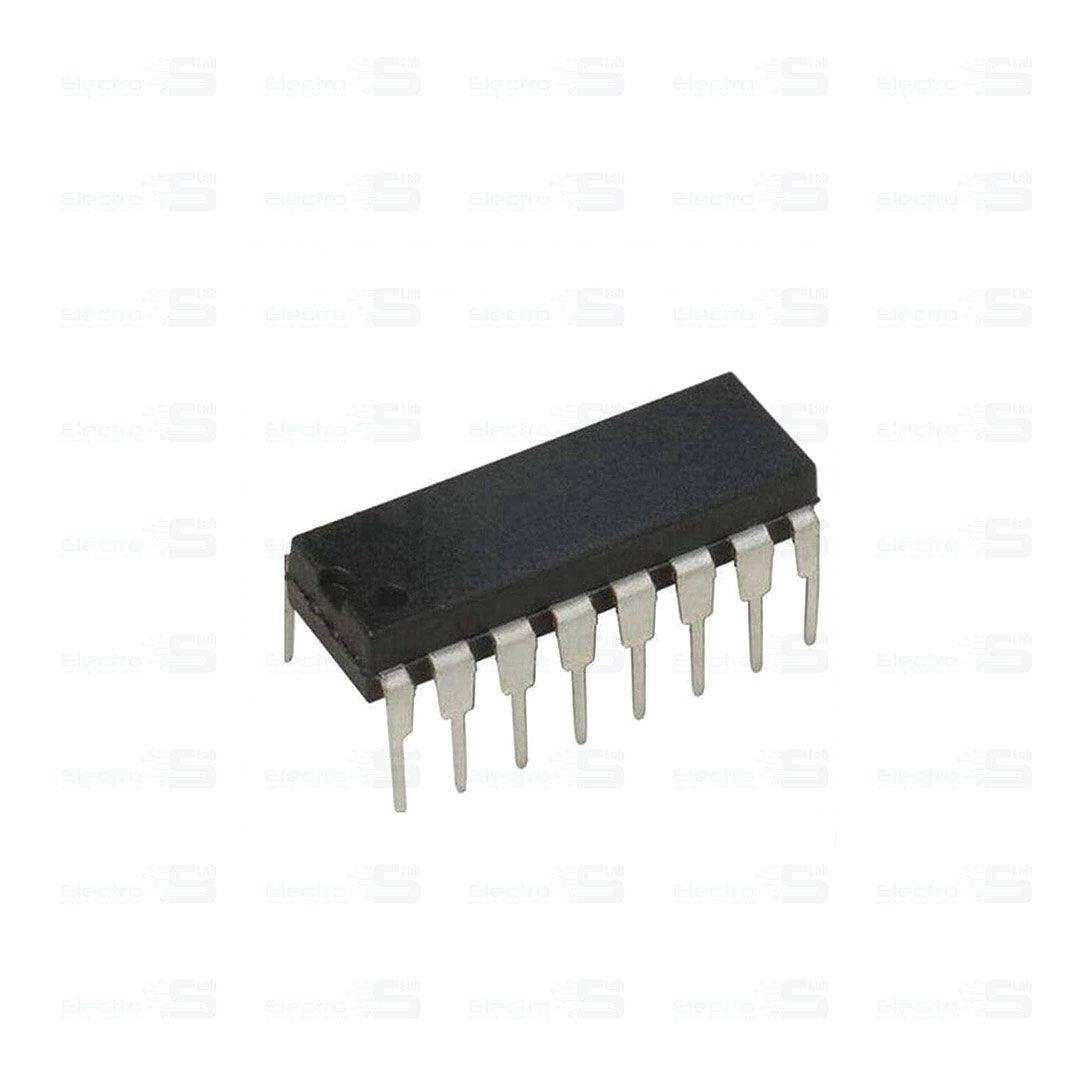

7448

7448

Regular price $1.50 USD
Regular price Sale price $1.50 USD
Sale Sold out
Tax included.
The SN54 /74LS48 is a BCD to 7-Segment Decoder consisting of NAND gates, input buffers and seven AND-OR-INVERT gates. Seven NAND gates and one driver are connected in pairs to make BCD data and its complement available to the seven decoding AND-OR-INVERT gates. The remaining NAND gate and three input buffers provide lamp test, blanking input/rippleblanking input  for the LS48.
