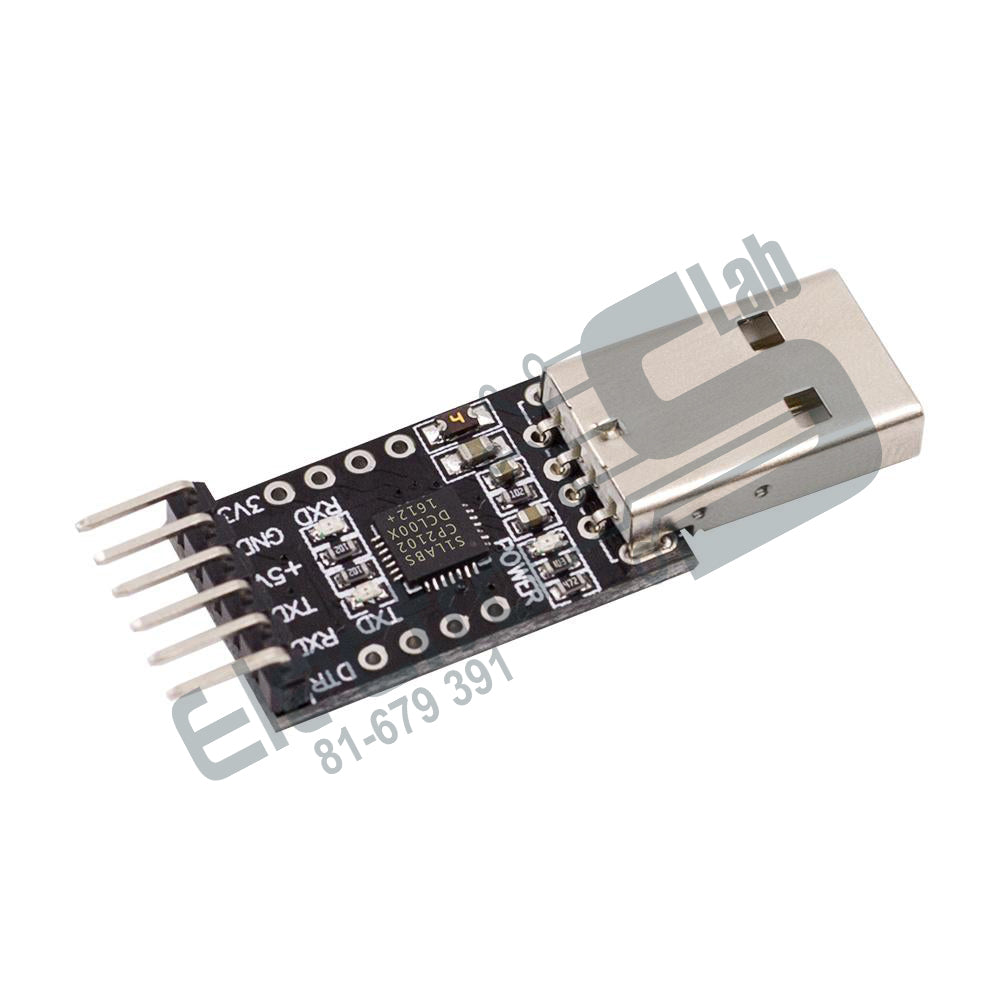

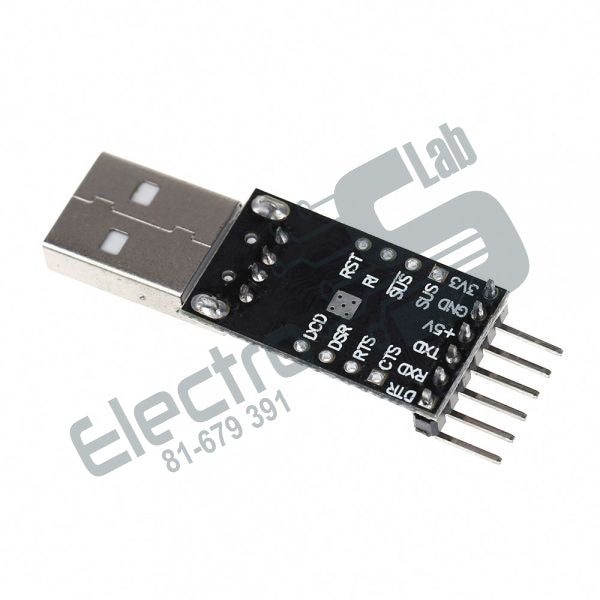

CP2102 USB 2.0 to TTL UART Module 6Pin Black
CP2102 USB 2.0 to TTL UART Module 6Pin Black
Regular price
$5.00 USD
Regular price
Sale price
$5.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
This CP2102 Module Serial Converter is designed to be used for USB to TTL electronic projects and STC downloading and Used for upgrade of DVD/hard disk/Router/GPS.
Specifications:
1- Built-in USB to RS232 Transfer chip and Stable and reliable chipset CP2102.
2- Supports Windows 98SE,2000,XP,Vista,Window7,Mac OS 9,Mac OS X Linux 2.40.
3- USB specification 2.0 compliant with full-speed 12Mbps.
4- Standard USB type A male and TTL 6pin connector.6pins for 3.3V,RST,TXD,RXD,GND&+5V.
5- Event character support Line break transmission.
6- USB suspend states supported via SUSPEND pins.
7- Temperature Range:-40°C to +85°C .
8- Cable Length:Approx.8.8inch/22.3 cm
Specifications:
1- Built-in USB to RS232 Transfer chip and Stable and reliable chipset CP2102.
2- Supports Windows 98SE,2000,XP,Vista,Window7,Mac OS 9,Mac OS X Linux 2.40.
3- USB specification 2.0 compliant with full-speed 12Mbps.
4- Standard USB type A male and TTL 6pin connector.6pins for 3.3V,RST,TXD,RXD,GND&+5V.
5- Event character support Line break transmission.
6- USB suspend states supported via SUSPEND pins.
7- Temperature Range:-40°C to +85°C .
8- Cable Length:Approx.8.8inch/22.3 cm
