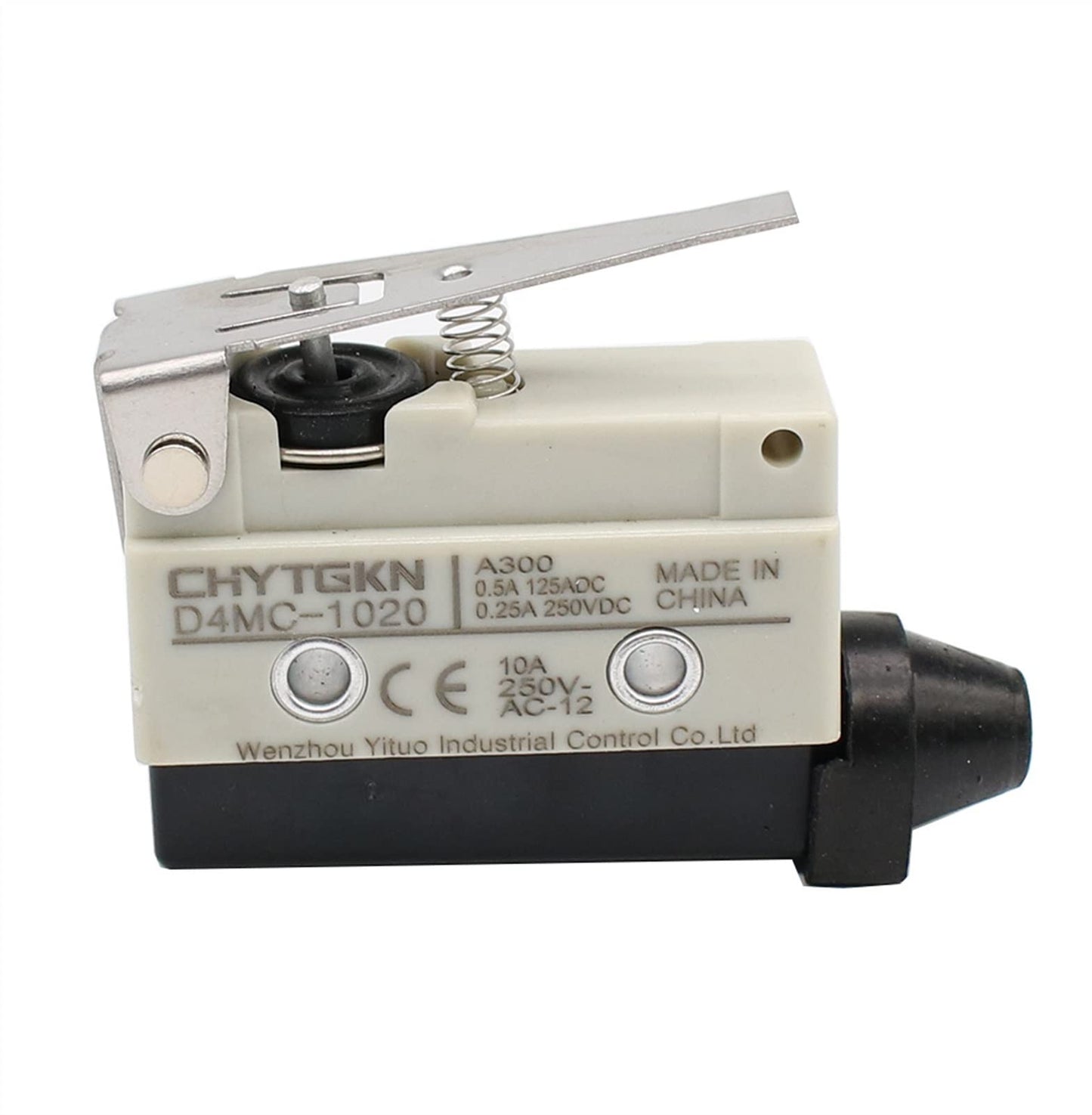

D4MC-1020 Micro Limit Switch
D4MC-1020 Micro Limit Switch
Tags
Regular price
$4.00 USD
Regular price
Sale price
$4.00 USD
Unit price
/
per
Sale
Sold out
No reviews
MICRO SWITCH SE-D4MC-1020 is engineered to deliver exceptional performance and reliability in demanding industrial environments. This precision limit switch is designed to detect the presence or absence of an object accurately, making it a vital component in various automation and control systems.
SE-D4MC-1020 features a compact form factor, making it suitable for installation in confined spaces. Its robust construction ensures durability and longevity, even in challenging conditions. The switch is housed in an IP67-rated enclosure, providing excellent protection against dust, water, and other contaminants. This makes it ideal for use in environments where exposure to harsh elements is a concern. With a mechanical life of up to 10 million operations, the SE-D4MC-1020 is built to withstand extensive usage without compromising performance.
Suitable for automated machinery, conveyor systems, manufacturing equipment, and more, the SE-D4MC-1020 offers versatile functionality to meet various industrial needs. MICRO SWITCH SE-D4MC-1020 is designed for a wide range of applications in industrial automation and control systems. It is particularly suitable for use in automated machinery, conveyor systems, material handling equipment, and other manufacturing processes where precise and reliable position detection is critical.
For industries seeking a dependable and durable limit switch, the MICRO SWITCH SE-D4MC-1020 offers an ideal solution. With its high mechanical durability, robust construction, and excellent environmental protection, this switch ensures consistent and accurate performance in even the harshest industrial settings.
Specification:
Frequency
50/60 Hz
Contact form
SPDT
Load
General load
Ratings (AC): Non-Inductive load
Resistive load: 10 A at 125 VAC/10 A at 250 VAC/3 A at 480 VAC
Lamp load (NC): 3 A at 125 VAC/2.5 A at 250 VAC/1.5 A at 480 VAC
Lamp load (NO): 1.5 A at 125 VAC/1.25 A at 250 VAC/0.75 A at 480 VAC
Inductive load: 10 A at 125 VAC/10 A at 250 VAC/2.5 A at 480 VAC
Motor load (NC): 5 A at 125 VAC/3 A at 250 VAC/1.5 A at 480 VAC
Motor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC/0.75 A at 480 VAC
Ratings (DC): Non-Inductive load
Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.5 A at 125 VDC/0.25 A at 250 VDC
Lamp load (NC): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
Lamp load (NO): 1.5 A at 8 VDC/1.5 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
Inductive load: 6 A at 8 VDC/6 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Motor load (NC): 5 A at 8 VDC/5 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Motor load (NO): 2.5 A at 8 VDC/2.5 A at 14 VDC/2.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Inrush current
NC: 30 A max.
NO: 15 A max.
Ambient temperature
Operating: -10 to 80 ℃ (with no icing)
Ambient humidity
35 to 95 %
Share
View full details
MICRO SWITCH SE-D4MC-1020 is engineered to deliver exceptional performance and reliability in demanding industrial environments. This precision limit switch is designed to detect the presence or absence of an object accurately, making it a vital component in various automation and control systems.
SE-D4MC-1020 features a compact form factor, making it suitable for installation in confined spaces. Its robust construction ensures durability and longevity, even in challenging conditions. The switch is housed in an IP67-rated enclosure, providing excellent protection against dust, water, and other contaminants. This makes it ideal for use in environments where exposure to harsh elements is a concern. With a mechanical life of up to 10 million operations, the SE-D4MC-1020 is built to withstand extensive usage without compromising performance.
Suitable for automated machinery, conveyor systems, manufacturing equipment, and more, the SE-D4MC-1020 offers versatile functionality to meet various industrial needs. MICRO SWITCH SE-D4MC-1020 is designed for a wide range of applications in industrial automation and control systems. It is particularly suitable for use in automated machinery, conveyor systems, material handling equipment, and other manufacturing processes where precise and reliable position detection is critical.
For industries seeking a dependable and durable limit switch, the MICRO SWITCH SE-D4MC-1020 offers an ideal solution. With its high mechanical durability, robust construction, and excellent environmental protection, this switch ensures consistent and accurate performance in even the harshest industrial settings.
Specification:
Frequency | 50/60 Hz |
---|---|
Contact form | SPDT |
Load | General load |
Ratings (AC): Non-Inductive load | Resistive load: 10 A at 125 VAC/10 A at 250 VAC/3 A at 480 VAC Lamp load (NC): 3 A at 125 VAC/2.5 A at 250 VAC/1.5 A at 480 VAC Lamp load (NO): 1.5 A at 125 VAC/1.25 A at 250 VAC/0.75 A at 480 VAC Inductive load: 10 A at 125 VAC/10 A at 250 VAC/2.5 A at 480 VAC Motor load (NC): 5 A at 125 VAC/3 A at 250 VAC/1.5 A at 480 VAC Motor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC/0.75 A at 480 VAC |
Ratings (DC): Non-Inductive load | Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.5 A at 125 VDC/0.25 A at 250 VDC Lamp load (NC): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC Lamp load (NO): 1.5 A at 8 VDC/1.5 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC Inductive load: 6 A at 8 VDC/6 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC Motor load (NC): 5 A at 8 VDC/5 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC Motor load (NO): 2.5 A at 8 VDC/2.5 A at 14 VDC/2.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC |
Inrush current | NC: 30 A max. NO: 15 A max. |
Ambient temperature | Operating: -10 to 80 ℃ (with no icing) |
Ambient humidity | 35 to 95 % |
