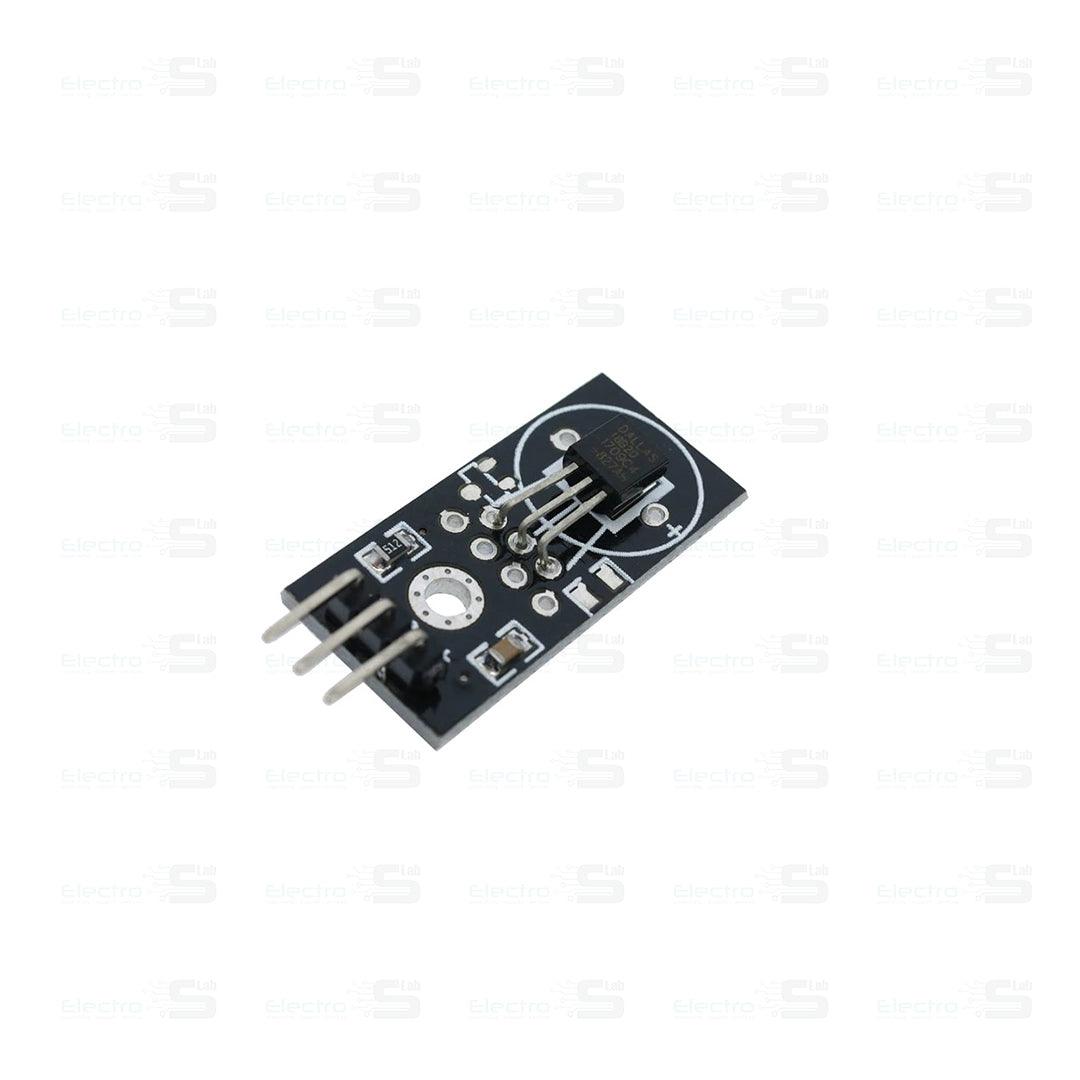

DS18B20 Digital Temperature Sensor Module

The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. In addition, the DS18B20 can derive power directly from the data line (“parasite power”), eliminating the need for an external power supply. Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.

Specifications:

• Programmable Digital Temperature Sensor
• Communicates using 1-Wire method
• Operating voltage: 3V to 5V
• Temperature Range: -55°C to +125°C
• Accuracy: ±0.5°C
• Output Resolution: 9-bit to 12-bit (programmable)
• Unique 64-bit address enables multiplexing
• Conversion time: 750ms at 12-bit
• Programmable alarm options
