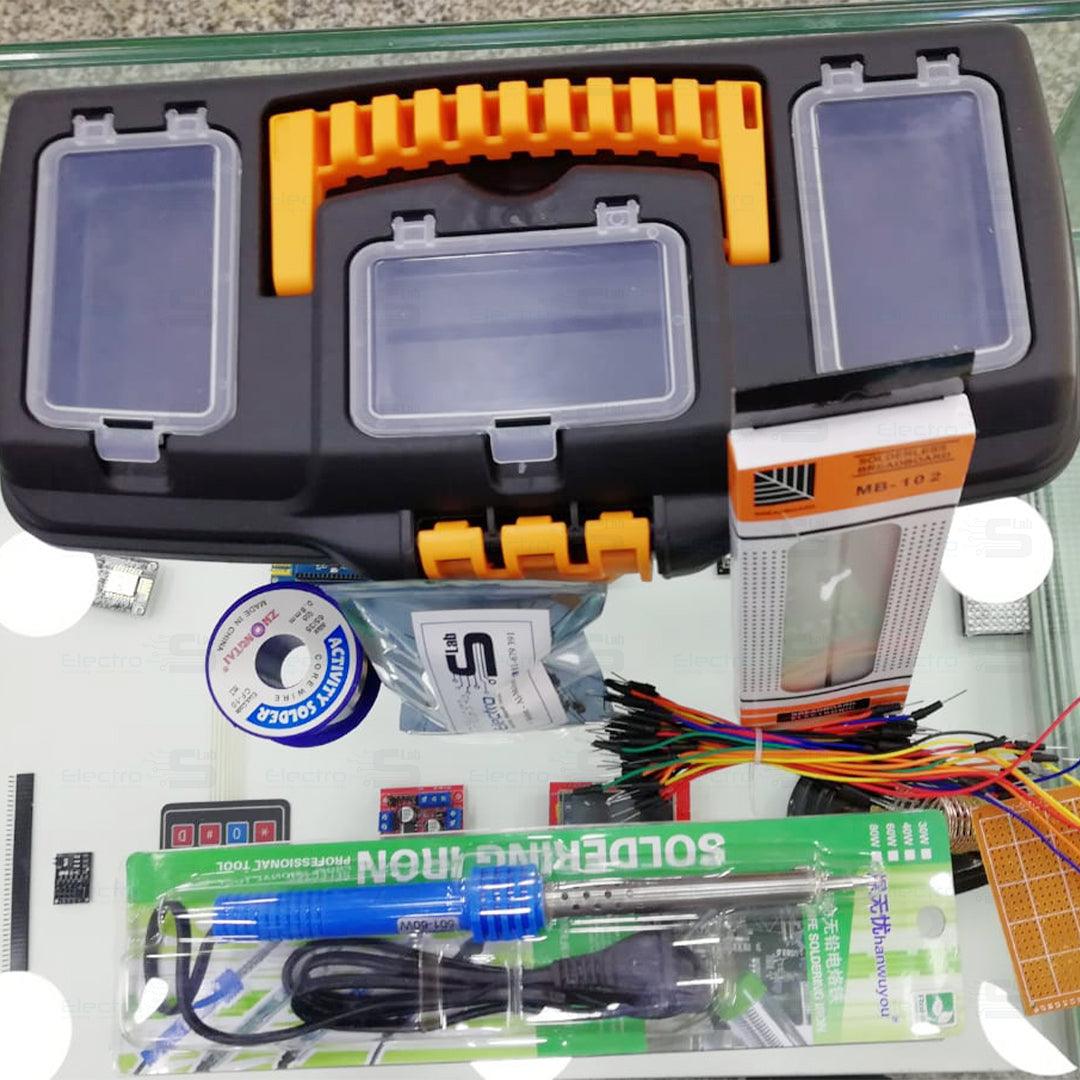

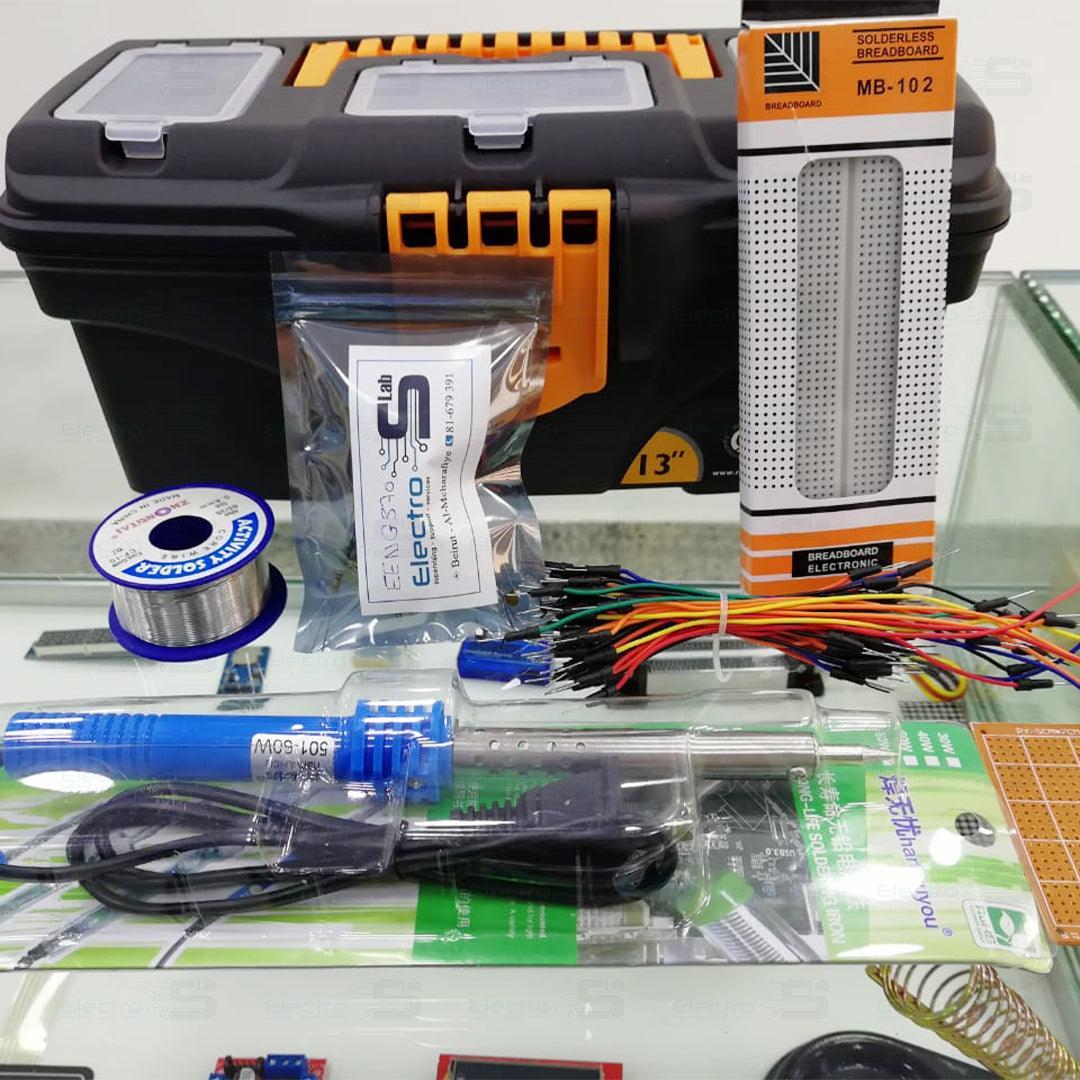

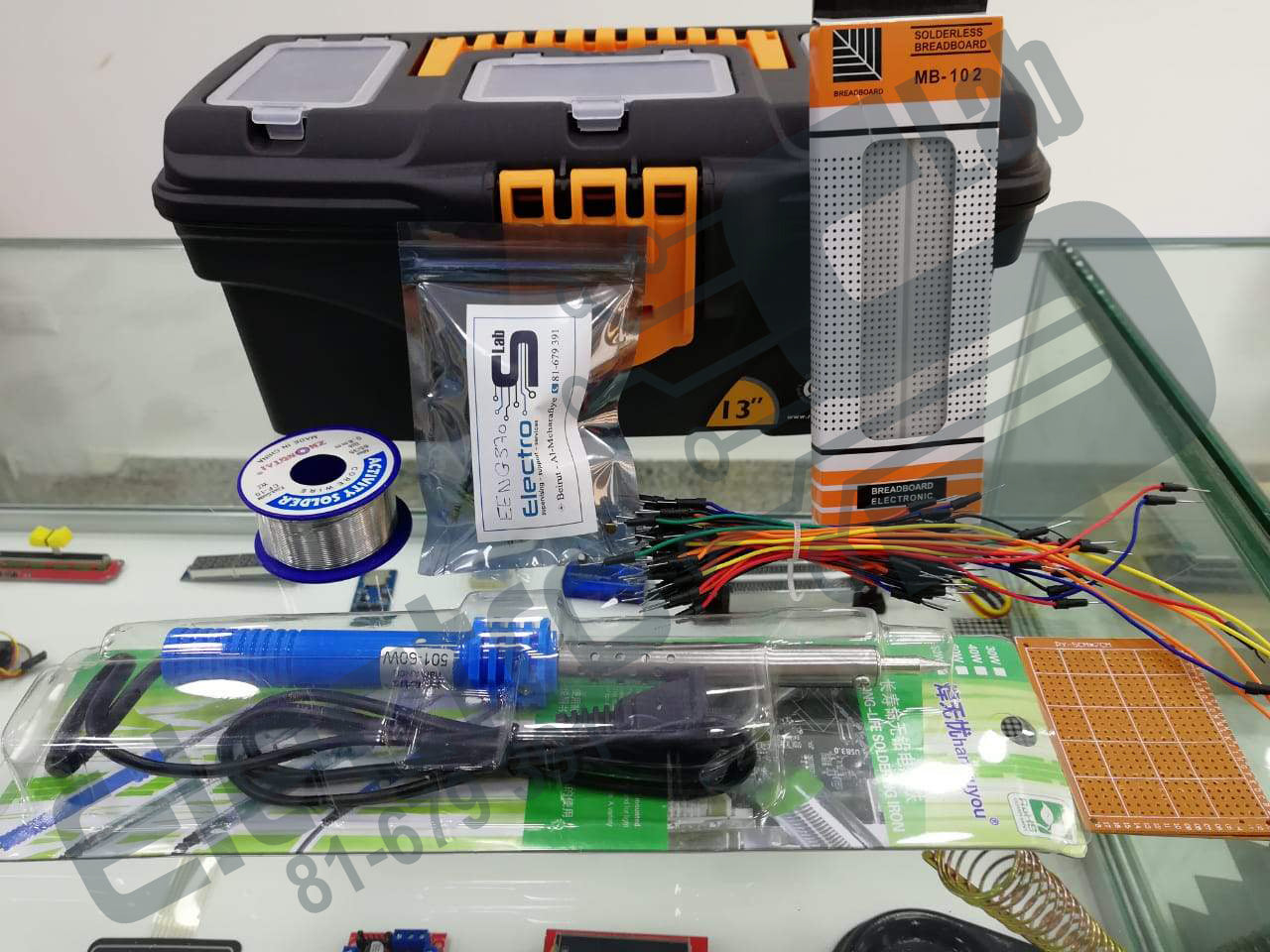

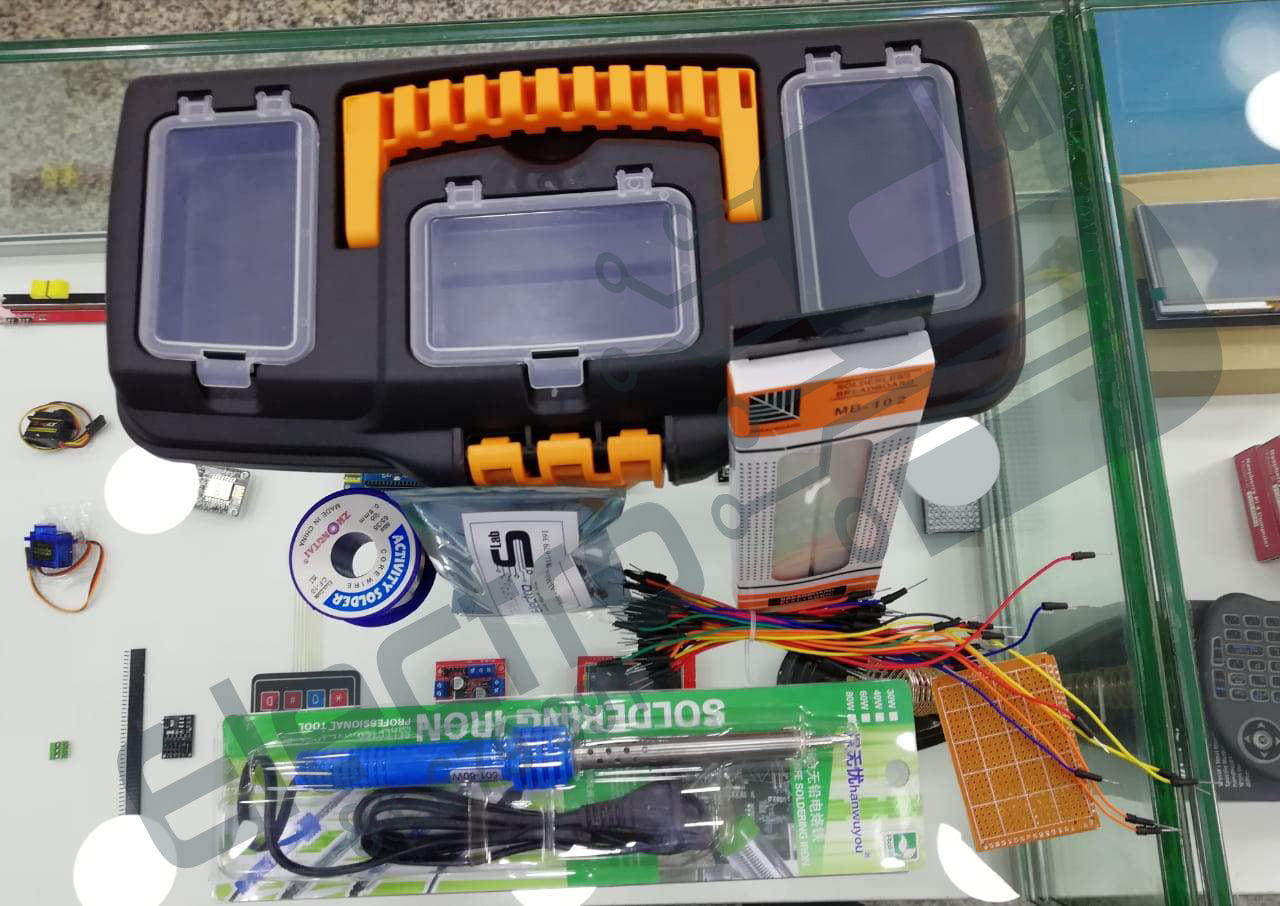

LIU EENG370L Kit

A few tools are required for basic electronics work.

• Solderless breadboard
• Jumper wires
• Soldering iron and solder
• Component box
• 830 Points Soldless Breadboard

 Current divider

• 2*1K, 100K, 1M
• Resistors: 470 Ω, 2*2K Ω, 2*3.3 KΩ,2*3.6K Ω.
• Variable resistors: 2*5K, 2*10K.

Rheostats and Potentiometers:

• Resistors: 5k to 50k linear tape,
• 0-1KΩ linear carbon potentiometer,
• 1k to 20k multi turn.

RC filters:

• Resistors: 1K Ω, 4.7k
• Capacitors: 1μ, 2*10μ, 100μ, 1p, 10p, 1n, 10n, 100n.

AC Circuit Analysis:

•  Resistors: 2*100 Ω, 3*10k, 2*100k
• -Capacitors: 0.01uF, 0.1uf, 0.15uf, 0.015uf, 1uf, 1nF, 10nF
• Diodes:
• 3*1N4007, BZX85C4V3

BJT:

• 2* 2N3904

RC filters:

• Resistors: 1K Ω.
• Capacitors: 1μF, 10μF, 100μF, 1pF, 10pF, 1nF, 10nF, 100nF.

Inductors:

• 2* 1uH,
• 2*2uH,
• 2* 25uH,
• 1mH,
• 100mH

Op-amp:

• 2*741uA

MOSFET:

• 2*CD4007
