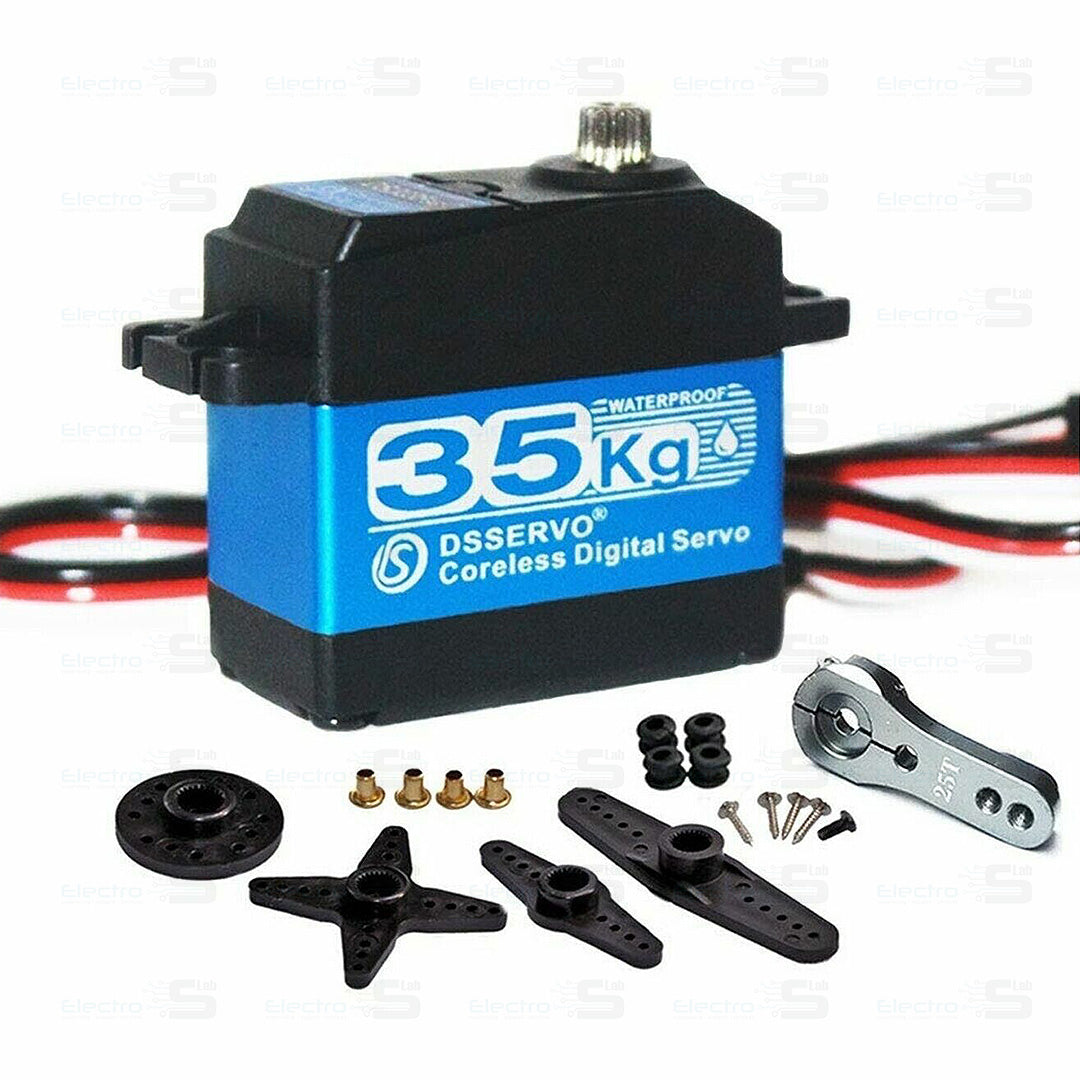

Discover the high-performance waterproof DSServo DS3235 servo motor for 1/10 and 1/8 scale RC vehicles, including crawlers, buggies and trucks, featuring precision potentiometers and a high-resolution digital chip for delicate and interference-free control. This fully waterproof servo motor (IP66, for water games) with a strong stainless steel and aluminum transmission maintains performance in wet conditions and offers a coreless motor with increased speed, fast response, excellent efficiency and low power consumption, ensuring an experience superior in the world of RC vehicles.
Specification:
- Model: DS3235SG
- Item Name: DS3235SG Digital Servo
- Rotation angle:180 degree
- Operating voltage range: 5-7.4V
- Operating speed (at no load) : 0.13 sec/60 degree @5.0V
- Operating speed (at no load): 0.12 sec/60 degree @6.0V
- Operating speed (at no load): 0.11 sec/60 degree @ 7.4V
- Stall torque (at locked): 29kg/cm @5.0V
- Stall torque (at locked): 32kg/cm @6.0V
- Stall torque (at locked) : 35kg/cm @7.4V
- Stall current (at locked): 1.9A @5.0V
- Stall current (at locked): 2.1 A@6.0V
- Stall current (at locked): 2.3A@7.4V
- Dead brand: 3μs / 2 μs
- Motor Type: Coreless Motor
- Gear Type: Copper & Aluminum / Stainless Steel & Aluminum
