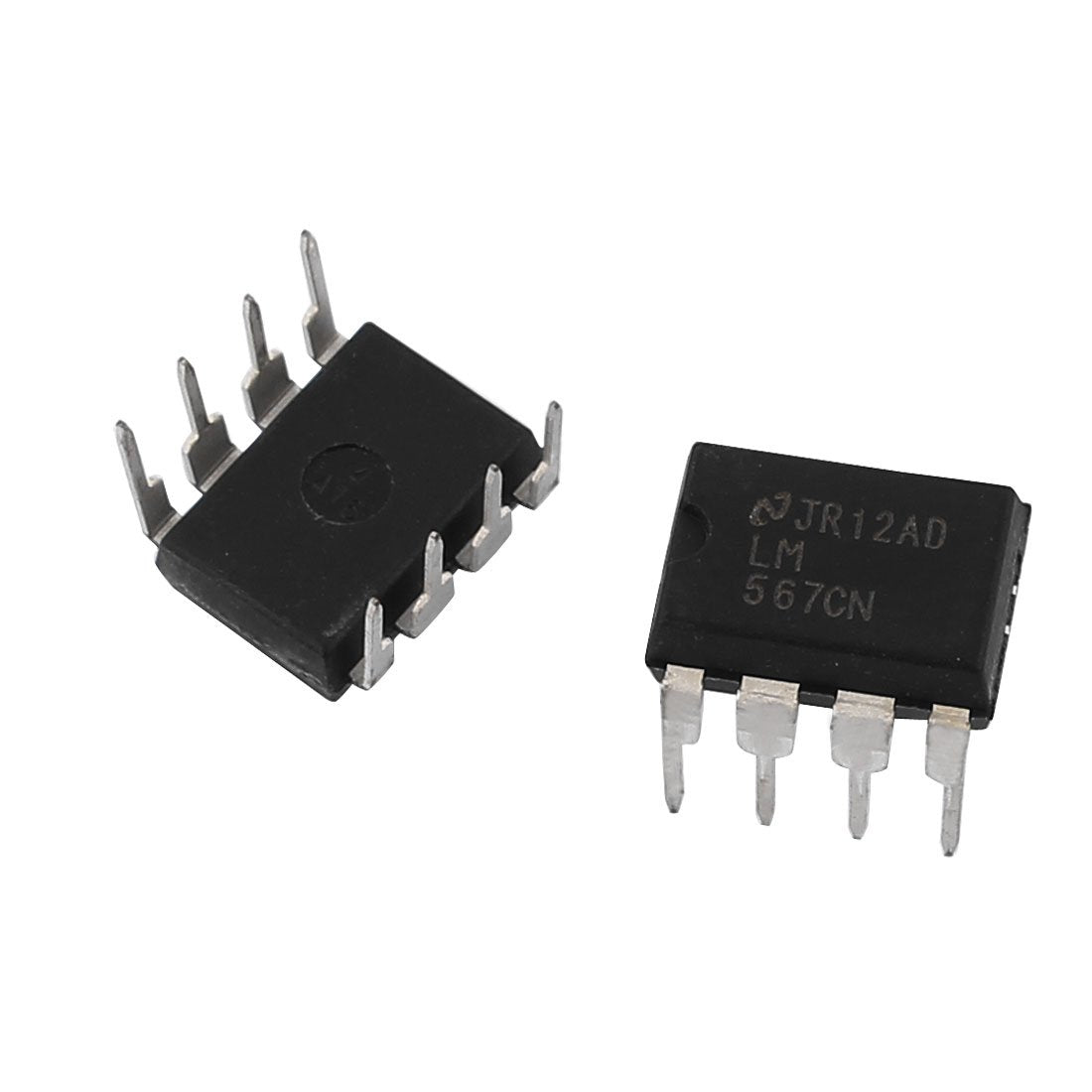

IC LM567CN

Description

The LM567CN Tone Decoder IC is a precision Phase-Locked Loop (PLL) tone decoder designed to detect a specific input frequency and provide a digital output when the target tone is present. Featuring an adjustable center frequency from 0.01 Hz to 500 kHz, high noise immunity, and low false triggering, the LM567CN is ideal for tone decoding, frequency detection, FSK demodulation, ultrasonic control systems, remote controls, and communication applications.

Key Features

• Model: LM567CN
• Type: Tone Decoder IC
• Package: 8-Pin PDIP (DIP-8)
• Technology: Phase-Locked Loop (PLL)
• Operating Voltage: 3.5V – 8.5V
• Center Frequency Range: 0.01 Hz to 500 kHz (externally adjustable)
• Bandwidth: Adjustable from 0% to 14%
• Output: Logic-Compatible Open-Collector Output
• Current Sink Capability: Up to 100mA
• High Noise Rejection: Excellent immunity to false signals
• Applications: Tone Detection, FSK Demodulation, Frequency Monitoring, Remote Controls, Ultrasonic Systems, Communication Circuits

Why Choose This Product?

• Accurate and reliable tone detection
• Wide adjustable frequency range
• High immunity to noise and false triggering
• Easy integration into electronic circuits
• Suitable for educational, hobby, and industrial applications
• Compatible with a wide variety of analog and digital signal processing projects
• Trusted and widely used PLL tone decoder design
