Stepper Motor Driver L9110 L9110S

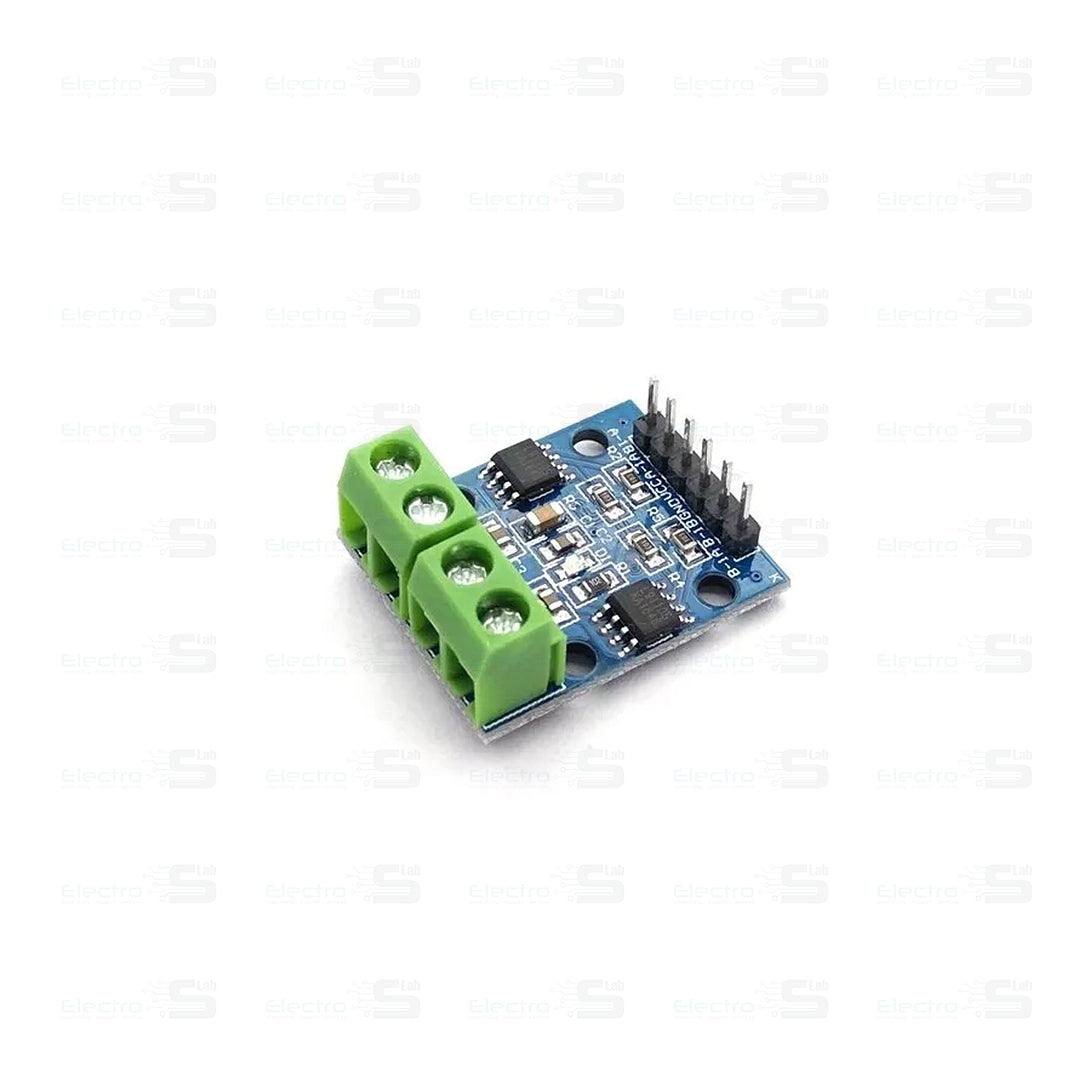

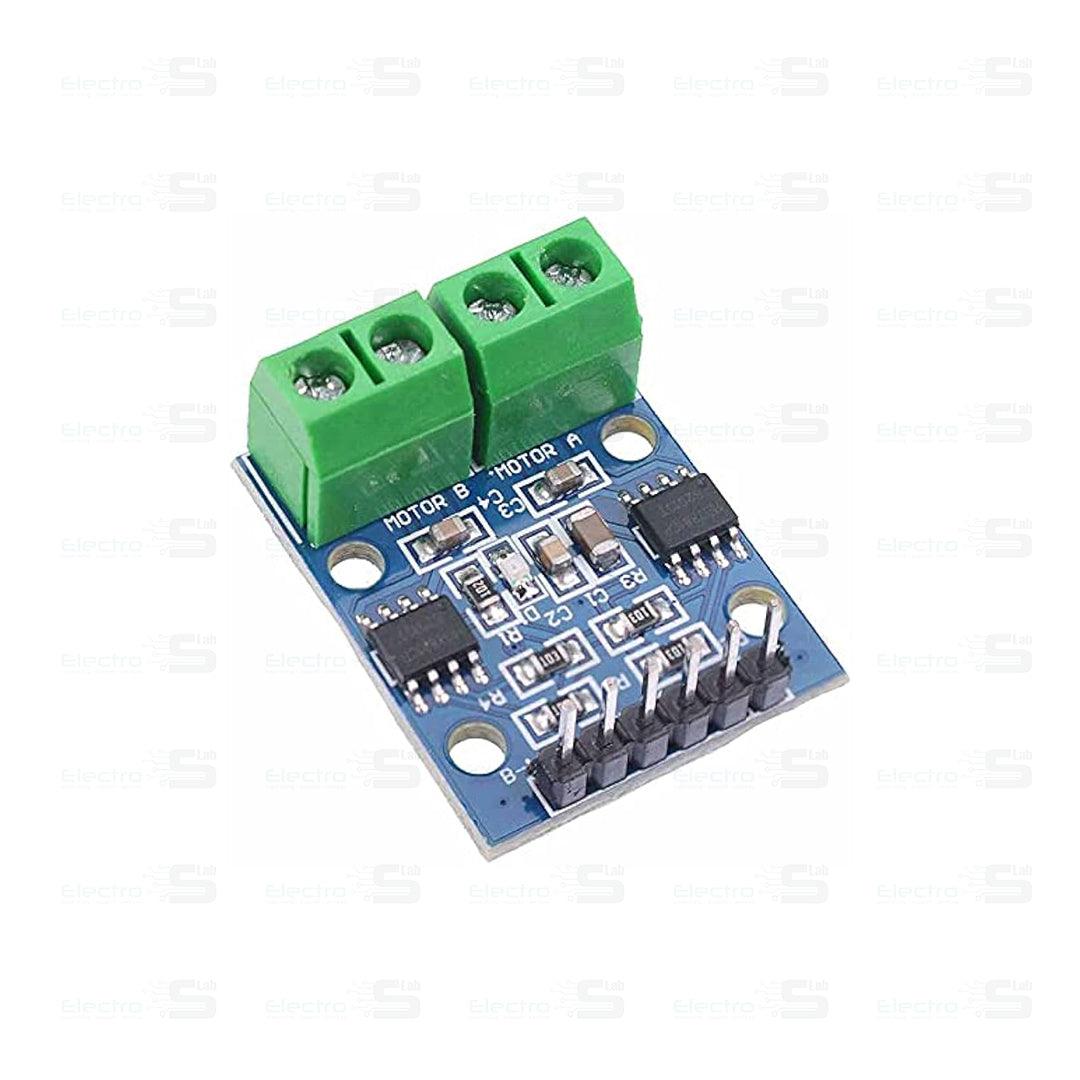

The L9110S 2-Channel motor driver module is a compact board that can be used to drive small robots. This module has two independent motor driver chips which can each drive up 800mA of continuous current. The boards can be operated from 2.5V to 12V enabling this module to be used with both 3.3V and 5V microcontrollers.This module can also be used to drive a single four-line two-phase stepper motor.

Specifications:

• On-board 2 L9110 motor control chip
• Input voltage: 2.5-12V DC
• Each channel has a continuous output current 800 ma
• PCB Size: 29.2mm x 23mm
