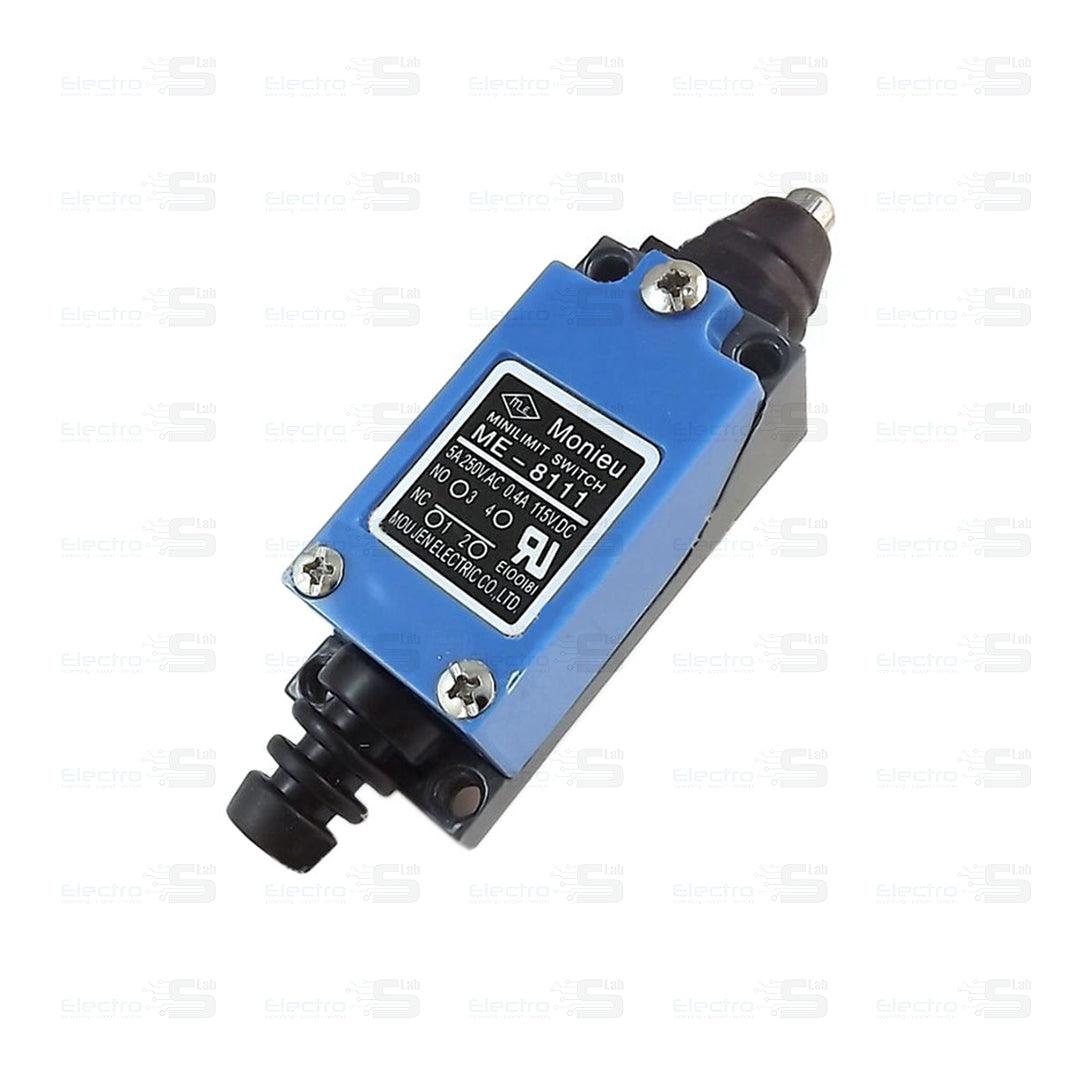

Limit Switch ME-8111

Specifications:

• Product: Limit switch
• Model: ME-8111
• Drive Type: standard pin plunger, automatic reset
• Pin diameter: 6.8 mm
• Contact Configuration: 2 NC + 2 NO
• Power supply: AC 250V 5A, DC 115V 0,4A
• Attachment thread diameter: 4.5 mm
• Mounting hole spacing: 56 mm x 21 mm
• Overall dimensions: 99 x 28 x 25 mm
