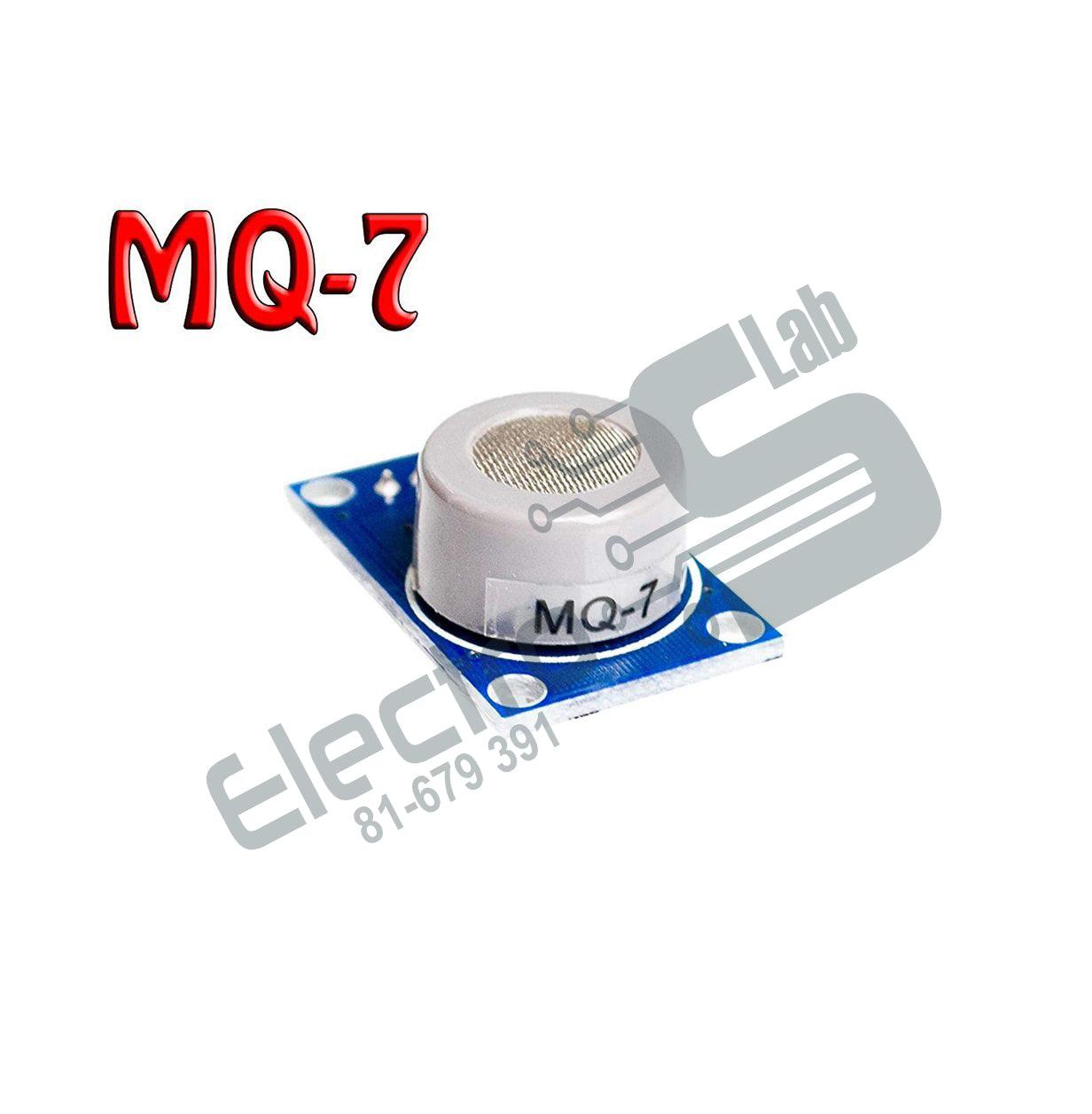

MQ-7 CO Carbon Monoxide Coal Gas Sensor Module

MQ7 ( MQ 7 ) CO Carbon Monoxide Coal Gas Sensor Module detects the concentrations of CO in the air and outputs its reading as an analog voltage. The sensor can measure concentrations of 10 to 10,000 ppm.The sensor can operate at temperatures from -10 to 50°C and consumes less than 150 mA at 5 V.
This module provides both digital and analog outputs. The threshold level for digital output can be easily adjusted using the preset on the board. MQ-7 sensor module can be easily interfaced with Micro-controllers, Arduino and etc.

Specifications:

• Circuit voltage: 5V±0.1
• Heating voltage (high): 5V±0.1
• Heating voltage (low): 1.4V±0.1
• Load resistance: Adjustable
• Heating resistance: 33Ω±5%
• Heating time (high): 60±1 seconds
• Heating time (low): 90±1 seconds
• Heating consumption: About 350mW
• Using temperature: -20°C-50°C
• Storage temperature: -20°C-50°C
• Relative humidity: Less than 95%RH
• Oxygen concentration: 21%(stand condition) the oxygen concentration can affect the sensitivity characteristic
