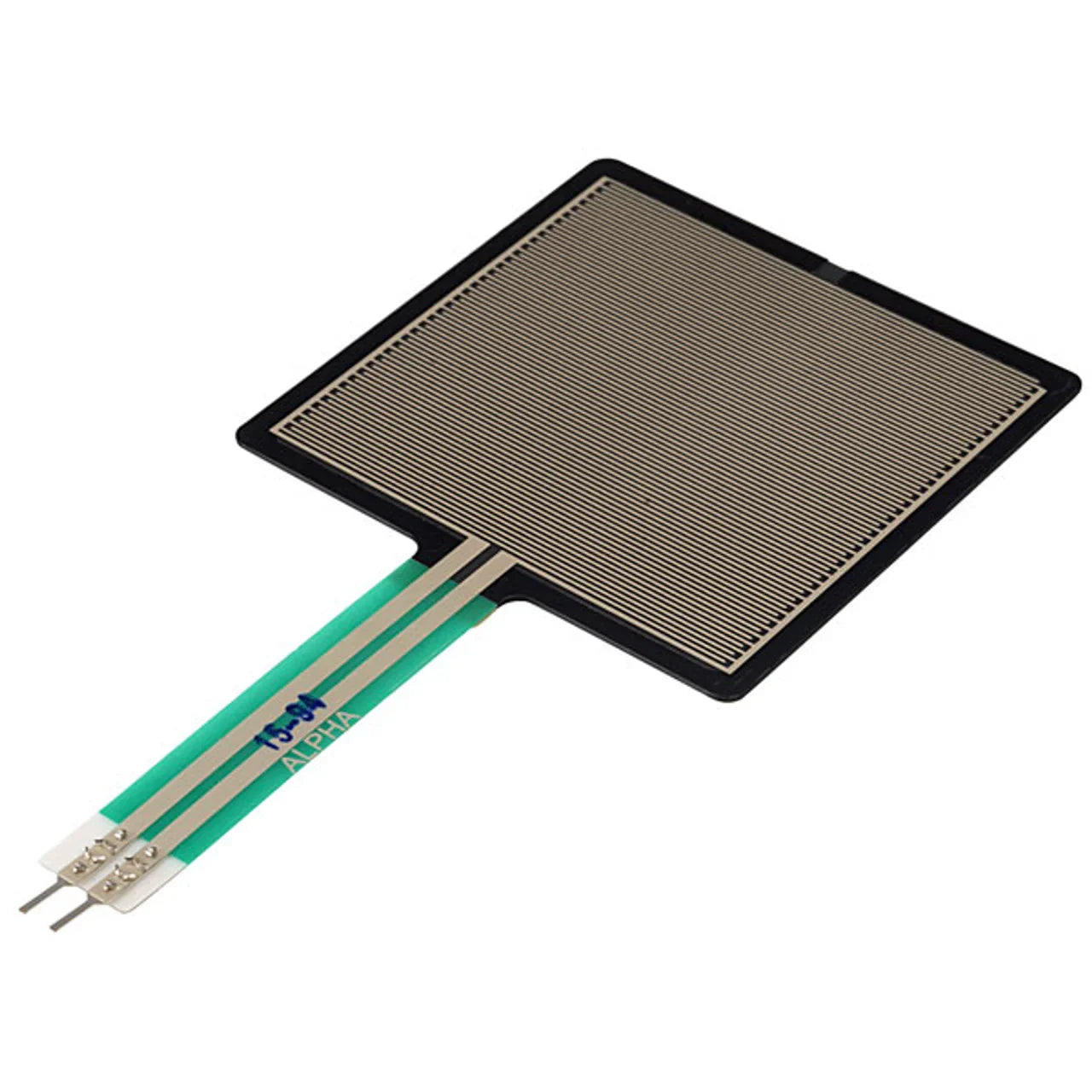

FSR406 Pressure Sensor

The FSR 406 model is a single-zone Force Sensing Resistor^® optimized for use in human touch control of electronic devices such as automotive electronics, medical systems, and in industrial and robotics applications. FSRs are two-wire devices, they are robust polymer thick film (PTF) sensors that exhibit a decrease in resistance that corresponds inversely with increase in force applied to the surface of the sensor. It has a 39.6mm square active area and is available with one of four connection options. Interlink Electronics FSR 400 series is part of the single-zone Force Sensing Resistor family.

Specifications:

• Actuation Force 0.1 Newtons
• Force Sensitivity Range 0.1 - 10 Newtons
• Force Repeatability
• (Single part) ± 2%
• Force Resolution continuous
• Force Repeatability (Part to Part) ±6%
