UNI-T

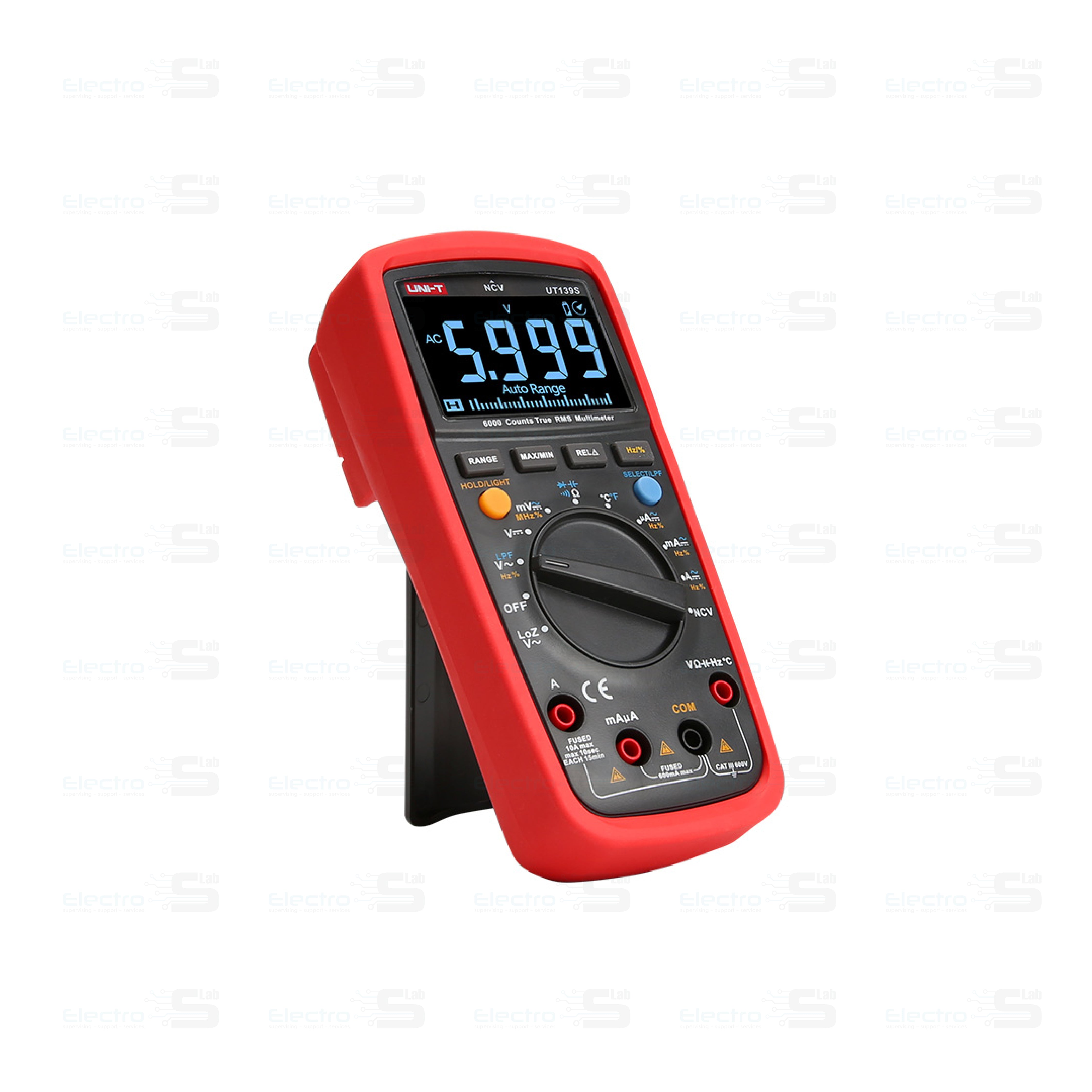

UNI-T UT139S True RMS Digital Multimeters
UNI-T UT139S True RMS Digital Multimeters
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
| Specifications | Range | UT139S |
| DC voltage (V) | 600V | ±(0.5%+2) |
| AC voltage (V) | 600V | ±(0.8%+3) |
| DC current (A) | 10A | ±(0.7%+2) |
| AC current (A) | 10A | ±(1%+3) |
| Resistance (Ω) | 20MΩ | |
| 40MΩ | ||
| 60MΩ | ±(0.8%+2) | |
| Capacitance (F) | 99.99mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Temperature (°C) | -40°C~1000°C | ±(1%+4) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+5) |
| Features | ||
| Display count | 6000 | |
| Auto range/Manual range | √ | |
| /True RMS | ||
| Bandwidth (Hz) | 45Hz~400Hz | |
| NCV/Continuity buzzer | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| Diode | Around 3V | |
| LPF/LoZ (ACV) | √ | |
| Analog bar | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R6) x 2 | |
| Display | 58mm x 36mm | |
| Product color | Red and grey | |
| Product net weight | UT139S: 345g | |
| Product size | 170mm x 80mm x 48mm | |
| Standard accessories | UT139C/S: Batteries, test leads, temperature probe | |
| Standard individual packing | Gift box, English manual | |
