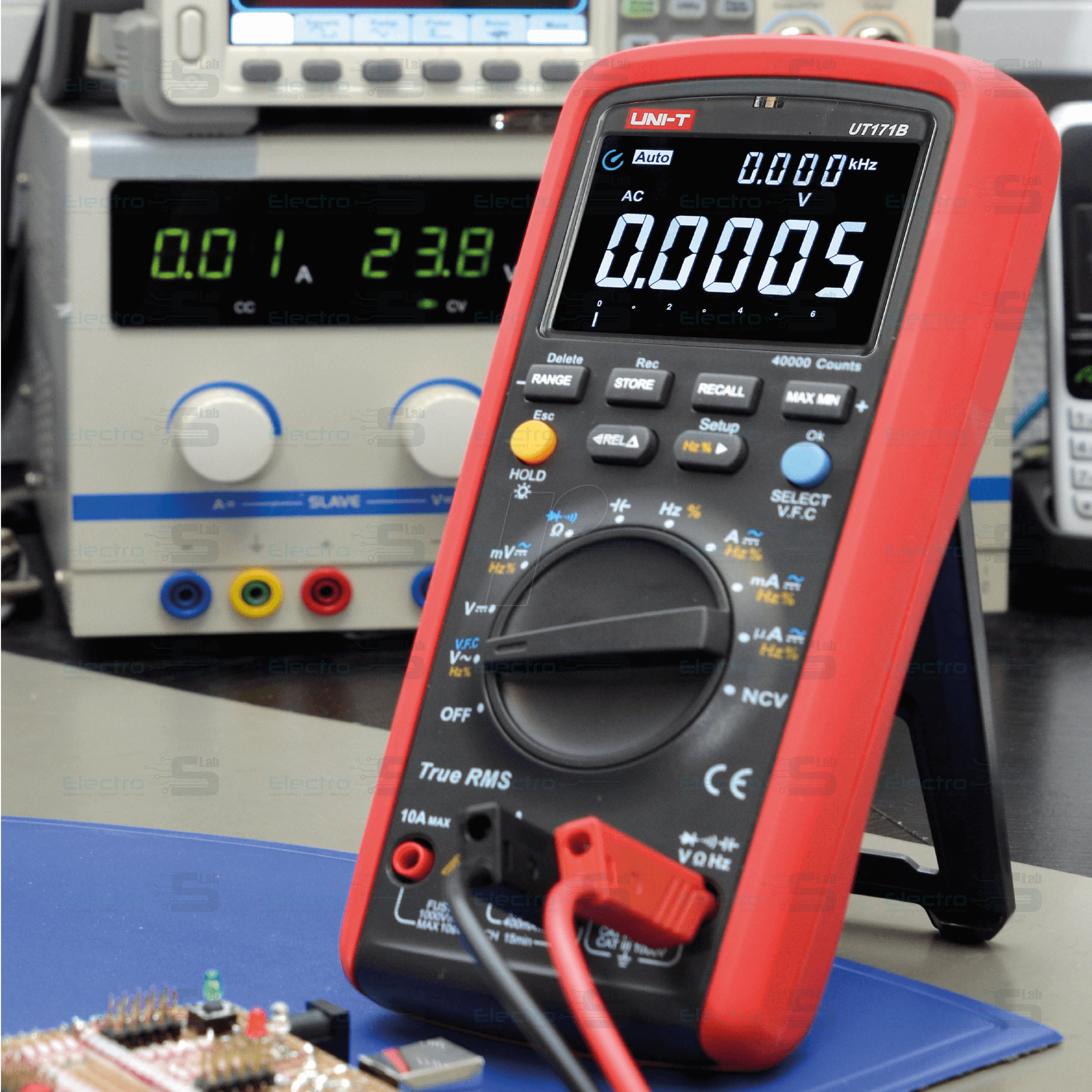

UNI-T UT171B Industrial True RMS Multimeter
UNI-T UT171B Industrial True RMS Multimeter
Tags
Regular price
$230.00 USD
Regular price
Sale price
$230.00 USD
Unit price
/
per
Sale
Sold out
Taxes included.
No reviews
Couldn't load pickup availability
Specifications
Range
UT171B
DC voltage (V)
1000V
±(0.025%+5)
AC voltage (V)
1000V
±(0.4%+40)
DC current (A)
10A
±(0.15%＋2)
AC current (A)
10A
±(0.75%＋5)
Resistance (Ω)
40MΩ
60MΩ
±(0.05%＋2)
Admittance (nS)
60nS
±(1%＋10)
Capacitance (F)
40mF
60mF
±(2.5%+40)
Frequency (Hz)
10Hz~10MHz
±(0.01%+5)
Temperature (°C)
-40°C~1000°C
±(1%+30)
Temperature (°F)
-40°F~1832°F
±(1.5%+50)
Features
Display count
60000
Auto/Manual range
√
True RMS
√
Bandwidth (Hz)
100kHz
√
4~20mA loop
0~100%
√
LoZ (ACV)
Around 3kΩ
√
Diode
Around 3V
√
Continuity buzzer
√
Duty cycle
0.1%~99.9%
√
NCV/Data hold/MAX/MIN
√
Relative mode
√
Data storage
9999
Display type
EBTN
Analog bar graph
31
LCD backlight
√
Mis-plug alarm
√
Low battery indication
√
Auto power off
√
Input protection
√
Input impedance for DCV
√
Input impedance for DCV
Around 1GΩ
√
General Characteristics
Power
7.4V 2000mAh Li-ion battery
Display
70.6mm x 35.3mm
Product color
Red and grey
Product net weight
384g
Product size
206mm x 95mm x 55mm
Standard accessories
Batteries, test leads, point contact temperature probe,
USB interface cable, power adaptor (UT171B/C), PC software CD
Standard individual packing
Gift box, carrying bag, English manual
Optional accessory
Bluetooth adaptor (UT-D07)
Share
View full details
Regular price
$230.00 USD
Regular price
Sale price
$230.00 USD
Unit price
/
per
No reviews
Couldn't load pickup availability
| Specifications | Range | UT171B |
| DC voltage (V) | 1000V | ±(0.025%+5) |
| AC voltage (V) | 1000V | ±(0.4%+40) |
| DC current (A) | 10A | ±(0.15%＋2) |
| AC current (A) | 10A | ±(0.75%＋5) |
| Resistance (Ω) | 40MΩ | |
| 60MΩ | ±(0.05%＋2) | |
| Admittance (nS) | 60nS | ±(1%＋10) |
| Capacitance (F) | 40mF | |
| 60mF | ±(2.5%+40) | |
| Frequency (Hz) | 10Hz~10MHz | ±(0.01%+5) |
| Temperature (°C) | -40°C~1000°C | ±(1%+30) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+50) |
| Features | ||
| Display count | 60000 | |
| Auto/Manual range | √ | |
| True RMS | √ | |
| Bandwidth (Hz) | 100kHz | √ |
| 4~20mA loop | 0~100% | √ |
| LoZ (ACV) | Around 3kΩ | √ |
| Diode | Around 3V | √ |
| Continuity buzzer | √ | |
| Duty cycle | 0.1%~99.9% | √ |
| NCV/Data hold/MAX/MIN | √ | |
| Relative mode | √ | |
| Data storage | 9999 | |
| Display type | EBTN | |
| Analog bar graph | 31 | |
| LCD backlight | √ | |
| Mis-plug alarm | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Input protection | √ | |
| Input impedance for DCV | √ | |
| Input impedance for DCV | Around 1GΩ | √ |
| General Characteristics | ||
| Power | 7.4V 2000mAh Li-ion battery | |
| Display | 70.6mm x 35.3mm | |
| Product color | Red and grey | |
| Product net weight | 384g | |
| Product size | 206mm x 95mm x 55mm | |
| Standard accessories | Batteries, test leads, point contact temperature probe, | |
| USB interface cable, power adaptor (UT171B/C), PC software CD | ||
| Standard individual packing | Gift box, carrying bag, English manual | |
| Optional accessory | Bluetooth adaptor (UT-D07) | |
