UNI-T

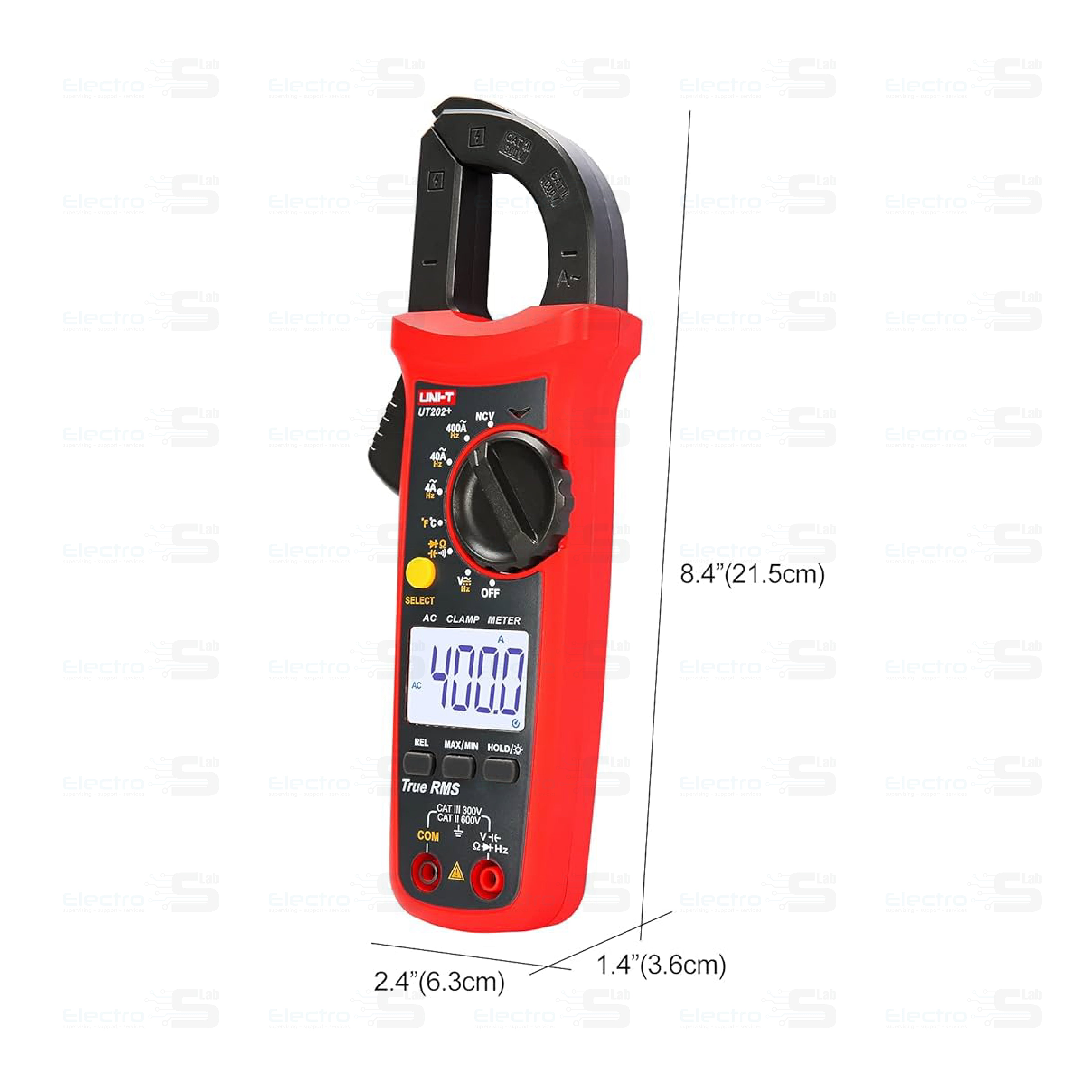

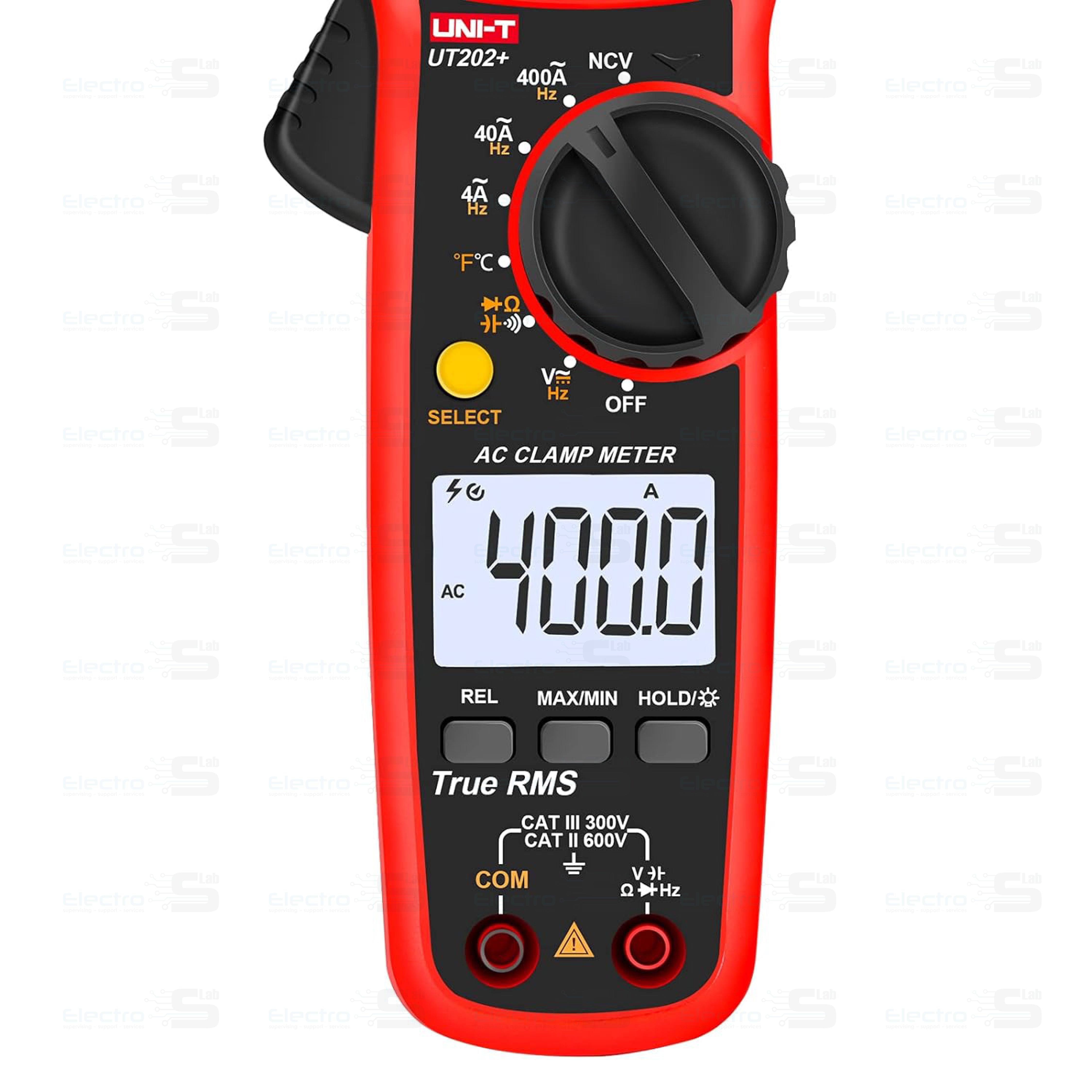

UNI-T UT202+ Digital Clamp Meter
UNI-T UT202+ Digital Clamp Meter
Regular price
$28.00 USD
Regular price
Sale price
$28.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
| Specifications | Range | UT202+ |
| AC current (A) | 400A | ±(2%+10) |
| 600A | ||
| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) |
| AC voltage (V) | 600V | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) |
| 10Hz~60kHz | ||
| DC voltage (A) | 600V | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) |
| 60MΩ | ||
| Capacitance (F) | 4mF | ±(4%+5) |
| 40mF | ||
| 60mF | ||
| Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) |
| Features | ||
| Display count | 4000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 37mm x 25mm | |
| Product color | Red and grey | |
| Product net weight | 248g | |
| Product size | 215mm x 63mm x 36mm | |
| Standard accessories | Batteries, test leads, Thermocouple (UT202+/UT204+) | |
| Standard individual packing | Gift box, Caring bag, English manual | |
