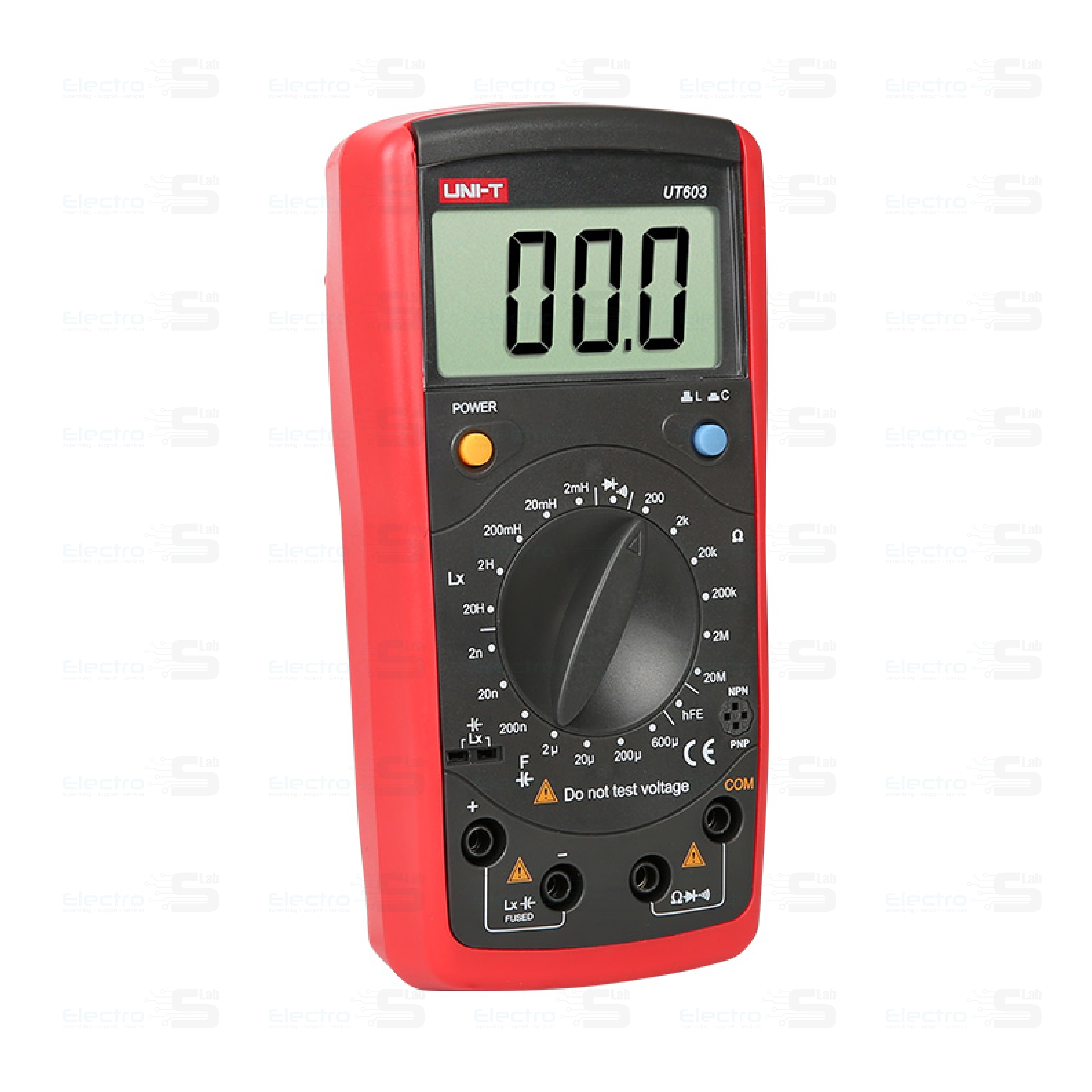

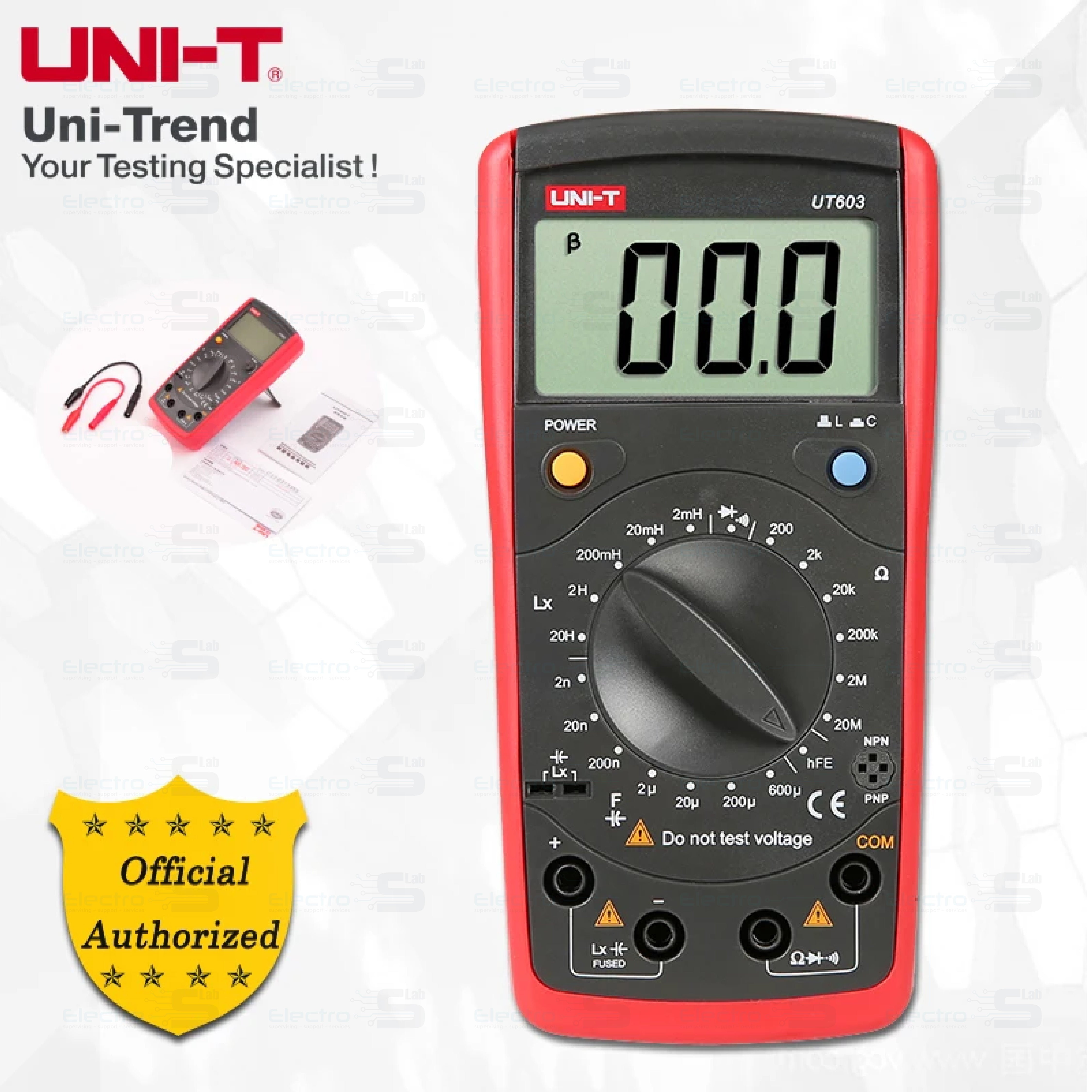

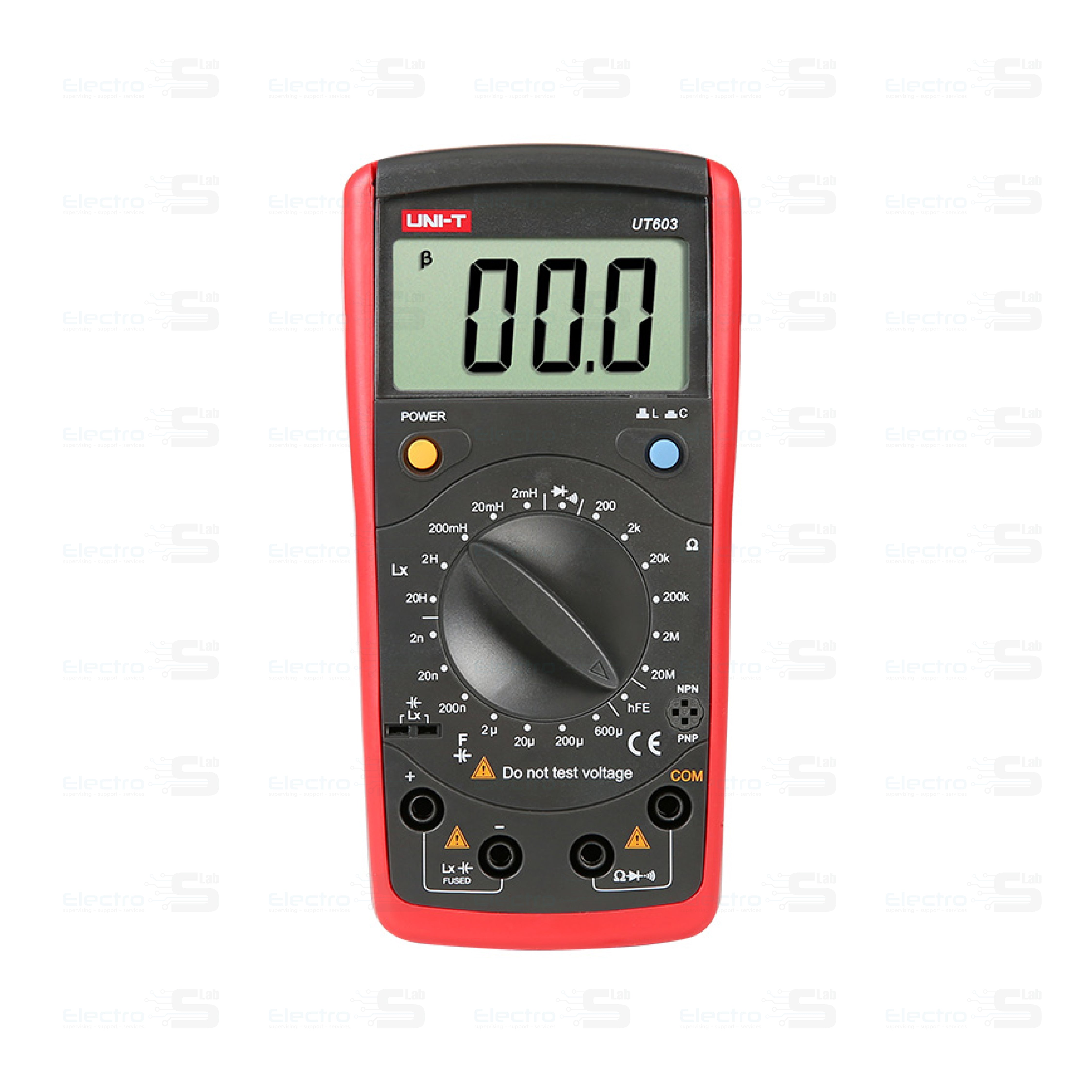

UNI-T UT603 Inductance Capacitance Meter
UNI-T UT603 Inductance Capacitance Meter
Tags
Regular price
$52.00 USD
Regular price
Sale price
$52.00 USD
Unit price
/
per
Sale
Sold out
Taxes included.
No reviews
Couldn't load pickup availability
Specifications
Range
UT603
Resistance (Ω)
20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ
20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
±(0.8%+1)
Capacitance (F)
200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF
2nF/20nF/200nF/2uF/20uF/200uF/600uF
±(1%+5)
Inductance (H)
2mH/20mH/200mH/2H/20H/200H
2mH/20mH/200mH/2H/20H
±(2%+8)
Features
Display count
2000
Manual range
√
Diode
√
Transistor
√
Continuity buzzer
√
Low battery indication
√
Data hold
General Characteristics
Power
9V battery (6F22)
Display
61mm x 32 mm
Product color
Red and grey
Product net weight
UT601/UT602: 310g, UT603: 312g
Product size
172mm x 83mm x 38mm
Standard accessories
Battery, test leads with alligator clips, holster
Standard individual packing
Gift box, English manual
