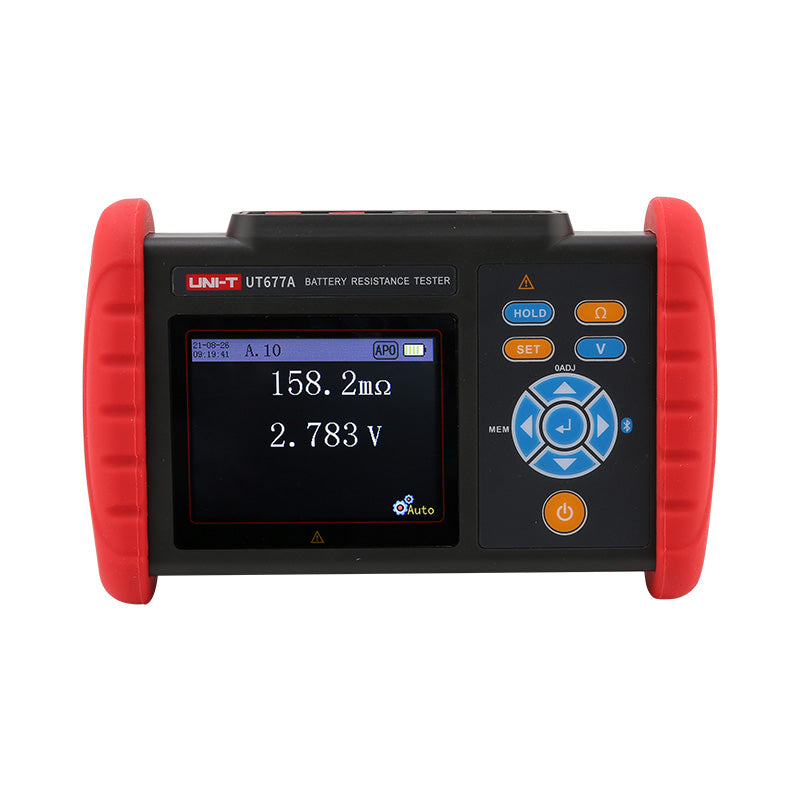

- UNI-T UT677A+ Battery Internal Resistance Tester UNI-T UT677A+ Battery Internal Resistance Tester
% $-450.00
$450.00
- Description
- Shipping & Returns
- Shipping & Return
- Reviews
Specifications of UT677A Battery Internal Resistance Tester
| Function | Range | Resolution |
| Battery Internal resistance range | 0.000mΩ~3mΩ / ±1%fs. ±20dgt | 1uΩ |
| 3.000mΩ~30mΩ / ±0.5%fs. ±15dgt. | 10uΩ | |
| 3.000mΩ~300mΩ / ±0.5%fs. ±15dgt. | 100uΩ | |
| 300mΩ~3Ω /±0.5% fs. ±15dgt. | 100mΩ | |
| Battery Voltage range | 0.000V~±7 V/±0.2%fs. ±10dgt. | 1mV |
| 7 V~±71.00V/±0.2 % fs. ±10dgt. | ||
| Temperature range | -10.0°C~60.0°C (single range)/ ±1.0℃ | 0.1℃ |
| Accuracy Guaranteed Temperature Humidity | 23℃±5℃, <75%rh | |
| Features | ||
| Measuring method | 1. Internal resistance measurement: 1KHz AC 4-terminal test method, open-circuit terminal voltage 3V max 2. Measuring current: 2.0mA~200mA (different measuring currents in different ranges) 3. Temperature measurement: NTC temperature sensor (10KΩ at 26°C) 4. A/D conversion method: successive approximation type 5. Display update frequency: 5 times/second |
|
| Screen | 3.5 inches (320*240, 16-bit true color screen) | |
| Response time | 200ms | |
| Measuring time | About 2 sec | |
| USB interface | Read real-time measurement values, read historical measurement records | |
| Bluethooth app | √ | |
| Data hold and storage | 1. Manual hold and storage, automatic hold and storage 2. Up to 5000 set measurement data storage |
|
| Measurement judgment function | PASS, WARNING, FAIL judgment thresholds can be preset | |
| Power | 1. DC 3.7V lithium battery 2. 5-bar display of power, reminding to charge in time |
|
| Power consumption | 300mA MIN/500mA MAX | |
| Automatic shut-down | Around 15 minutes | |
| Weight | 480g (including battery) | |
| Dimension | 190mm×121mm×51mm (L*W*H) | |
| Working temperature and humidity | -10℃～40℃; below 80%RH | |
| Storage temperature and humidity | -20℃～60℃; below 70%RH | |
| Insulation resistance | Above 20MΩ (500V between circuit and case) | |
| Puncture test | AC 3700V/rms (between circuit and case) | |
| External magnetic field | <40A/m | |
| External electric field | <1V/m | |
| Suitable for safety regulations | IEC 61010 | |
