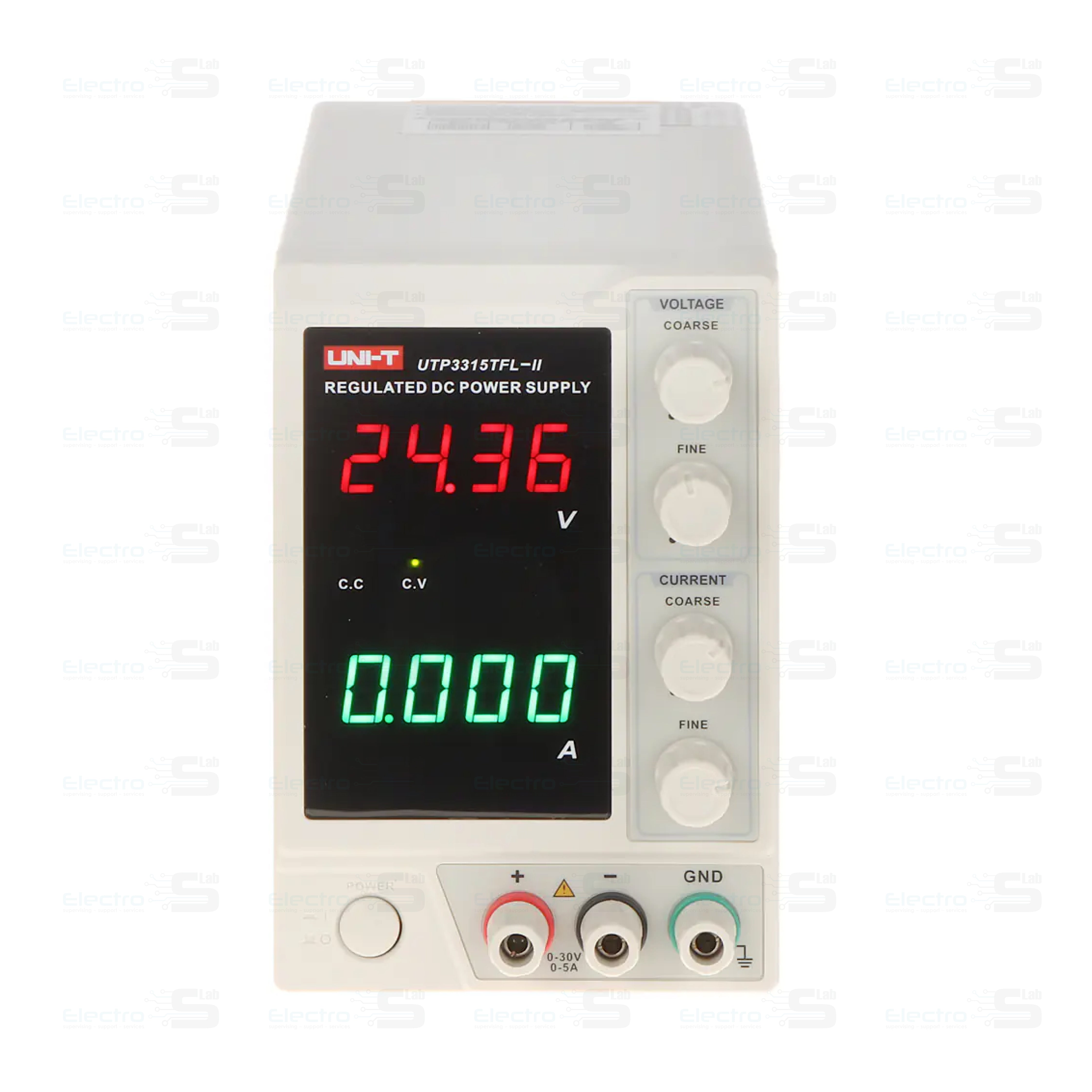

UNI-T UTP3315TFL-II Linear DC Power Supply
UNI-T UTP3315TFL-II Linear DC Power Supply
Tags
Regular price
$85.00 USD
Regular price
Sale price
$85.00 USD
Unit price
/
per
Sale
Sold out
Taxes included.
No reviews
Couldn't load pickup availability
Model
UTP3315TFL-II
Output voltage
0-30V
Output current
0- 5A
Output power
150W
Load regulation
CVs0.01%+5mV, CCs
0.1%+ 10mA
Voltage
< 0.5%+20mV
Current
< 0.5%+10mA
Ripple and noise
2mVrms
Output regulate resolution
CV: 10mV (typical), CC: 1mA (typical)
Reliability
MTBF(e): * 2000hrs
Display mode
LED voltage and current dual display
General Characteristic
Power
Input voltage: 110V/220V+ 5% AC, Frequency: 50Hz/60Hz
Product net weight Product
4Kg
size (Wx H x D)
105mm x 165mm x 249mm
