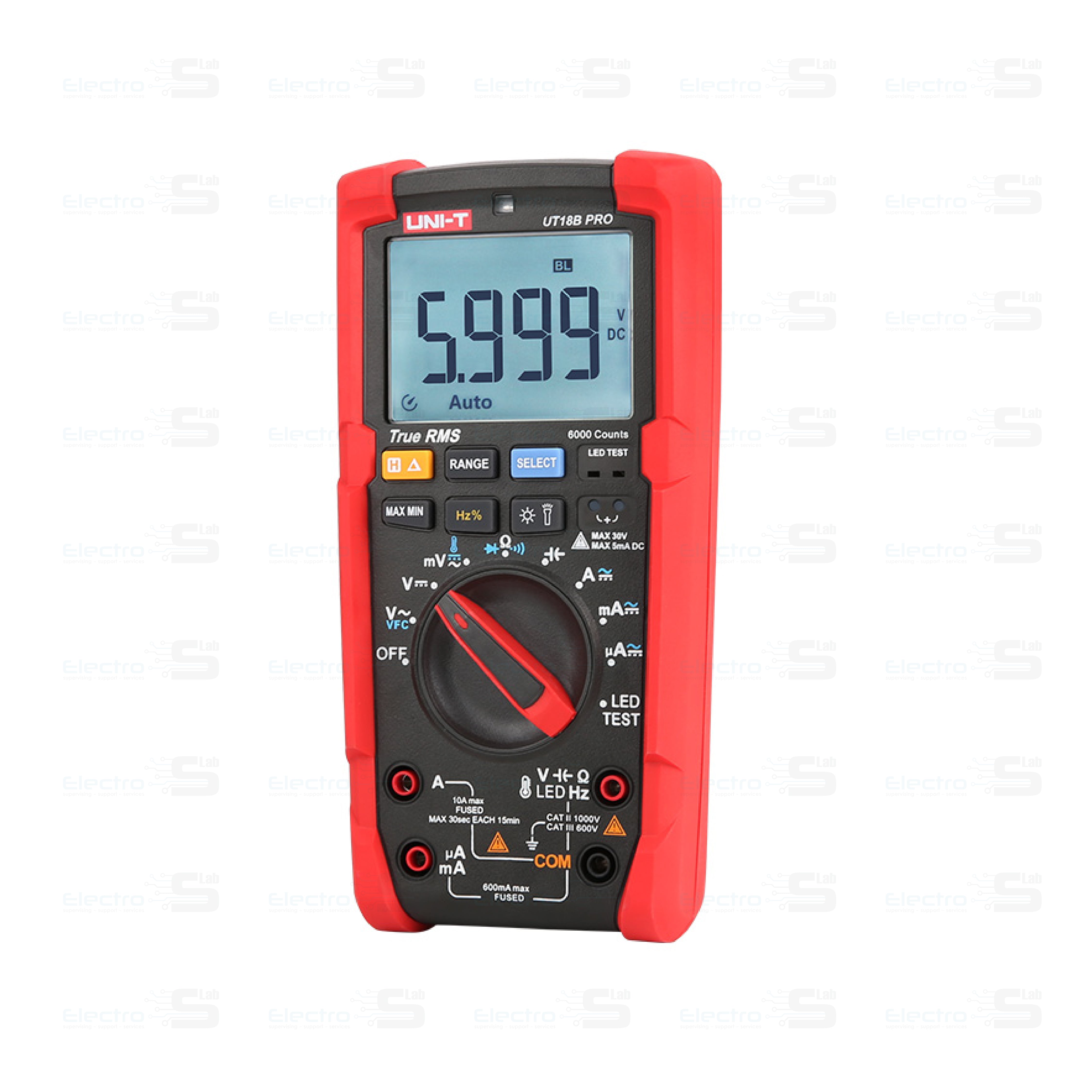

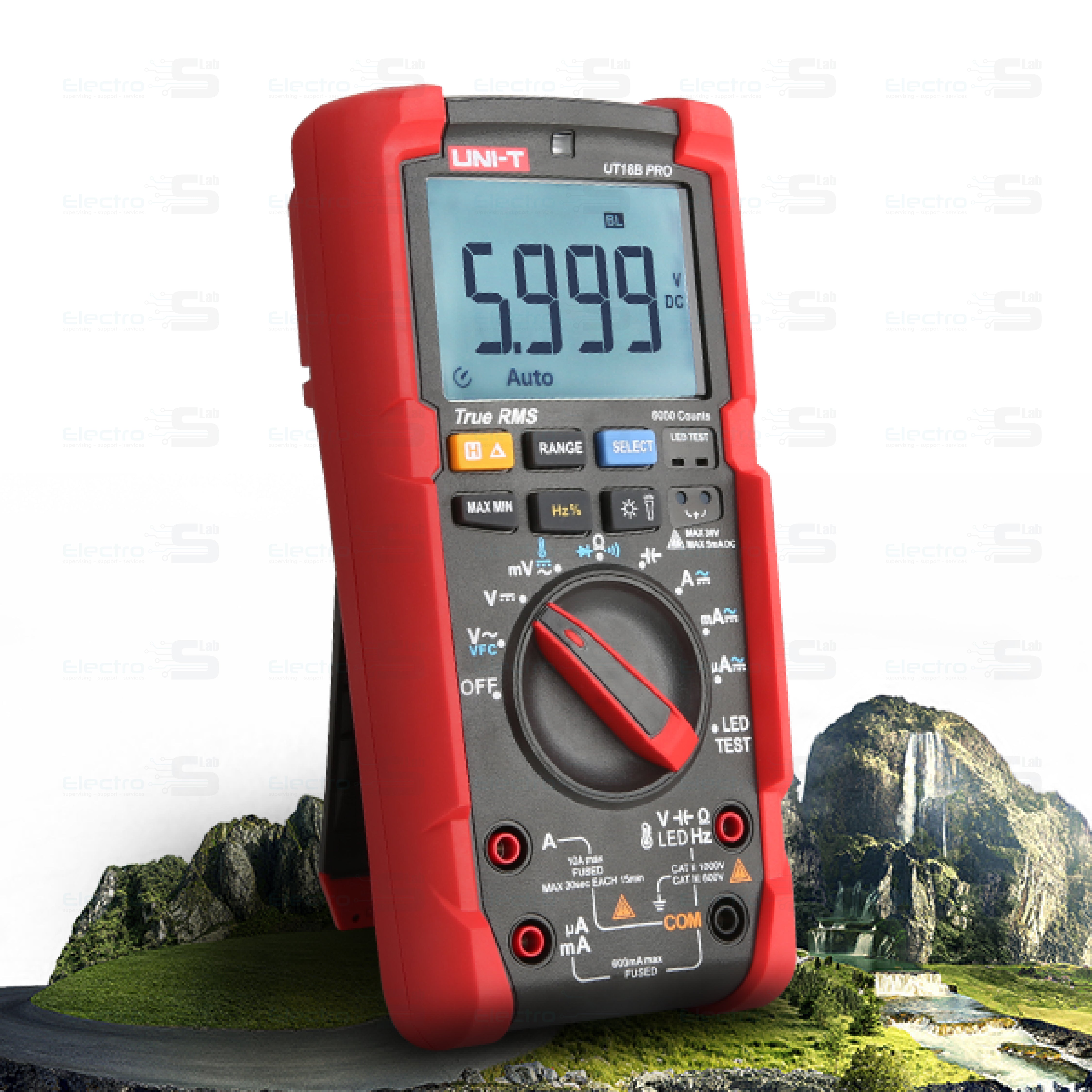

UNI-T UT18B PRO Digital Multimeter
UNI-T UT18B PRO Digital Multimeter
Tags
Regular price
$90.00 USD
Regular price
Sale price
$90.00 USD
Unit price
/
per
Sale
Sold out
Taxes included.
No reviews
Couldn't load pickup availability
Specifications
Range
UT18B PRO
DC voltage (V)
1000V
±(0.5%+3)
AC voltage (V)
1000V
±(1%+3)
AC current (A)
10A
±(1%+3)
DC current (A)
10A
±(0.8%+3)
Resistance (Ω)
60MΩ
±(0.5%+2)
Capacitance (F)
6000μF
±(2%+5)
Frequency (Hz)
10Hz~100kHz
1MHz
±(0.1%+3)
Duty cycle
1%~99%
±(1%+4)
Temperature (°C/℉)
-55℃~500℃/-67℉~932℉
±(2%+1)
Features
Display count
6000
True RMS
√
Auto range/Manual range
√
LED test
12V
√
Continuity/Diode test
√
Relative mode
√
Data hold
√
Max/Min
√
Auto backlight
√
Auto power off
Approximately 15 minutes
√
Low battery indication
＜2.5V approximately
√
Drop test
1m
√
Overvoltage category
CAT III 1000V
√
CAT IV 600V
General Characteristics
Power
1.5V battery (LR6) x 2
Product net weight
484g
Product size
195mm x 95mm x 58mm
Standard accessories
English manual, test lead, temperature adapter socket(UT18B PRO)
Standard individual packing
Gift box, cloth bag
Share
View full details
Regular price
$90.00 USD
Regular price
Sale price
$90.00 USD
Unit price
/
per
No reviews
Couldn't load pickup availability
| Specifications | Range | UT18B PRO |
| DC voltage (V) | 1000V | ±(0.5%+3) |
| AC voltage (V) | 1000V | ±(1%+3) |
| AC current (A) | 10A | ±(1%+3) |
| DC current (A) | 10A | ±(0.8%+3) |
| Resistance (Ω) | 60MΩ | ±(0.5%+2) |
| Capacitance (F) | 6000μF | ±(2%+5) |
| Frequency (Hz) | 10Hz~100kHz | |
| 1MHz | ±(0.1%+3) | |
| Duty cycle | 1%~99% | ±(1%+4) |
| Temperature (°C/℉) | -55℃~500℃/-67℉~932℉ | ±(2%+1) |
| Features | ||
| Display count | 6000 | |
| True RMS | √ | |
| Auto range/Manual range | √ | |
| LED test | 12V | √ |
| Continuity/Diode test | √ | |
| Relative mode | √ | |
| Data hold | √ | |
| Max/Min | √ | |
| Auto backlight | √ | |
| Auto power off | Approximately 15 minutes | √ |
| Low battery indication | ＜2.5V approximately | √ |
| Drop test | 1m | √ |
| Overvoltage category | CAT III 1000V | √ |
| CAT IV 600V | ||
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 2 | |
| Product net weight | 484g | |
| Product size | 195mm x 95mm x 58mm | |
| Standard accessories | English manual, test lead, temperature adapter socket(UT18B PRO) | |
| Standard individual packing | Gift box, cloth bag | |
