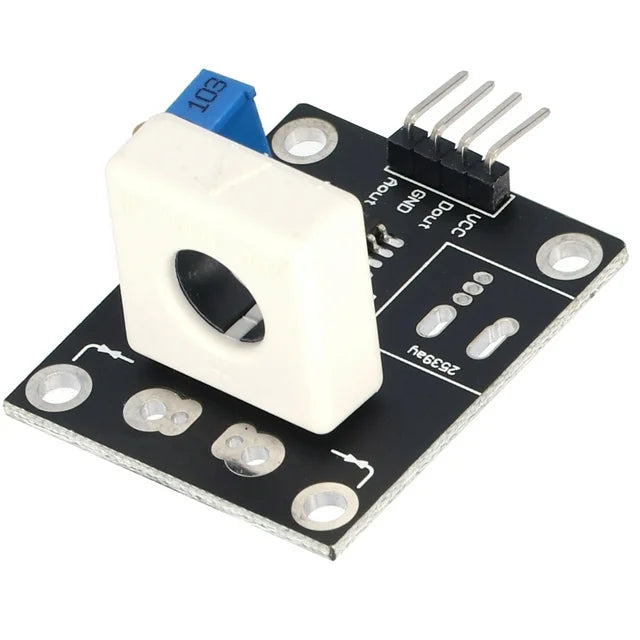

WCS1700 Hall Current Sensor 70A
WCS1700 Hall Current Sensor 70A
Electroslab

WCS1700 Hall Current Sensor 70A

Product SKU: 01-1-3-4088.001
$12.00
Out of Stock
We will contact you when the product is available.
  • Description
  • Shipping & Returns
  • Shipping & Return
Features:
The WCS1700 is a compact, non-intrusive Hall effect current sensor capable of measuring up to ±70 A DC or 50 A AC through a 9 mm conductor hole. Featuring high 36 mV/A sensitivity and wide supply voltage (3–12 V), it offers ratiometric output, 4 kV isolation, and minimal power consumption—ideal for accurate current monitoring in industrial and robotics projects.

Specifications:
  • Conductor through-hole diameter: 9 mm
  • Current sensing range: ±70 A DC / 50 A AC RMS (at 5 V supply)
  • Sensitivity: 36 mV/A (typical)
  • Supply voltage range: 3–12 V
  • Supply current: ~3.5 mA typical
  • Bandwidth: 23 kHz
  • Isolation voltage: 4000 V
  • Ratiometric linear output relative to supply voltage
  • Operating temperature: –20 °C to +125 °C
