Electroslab

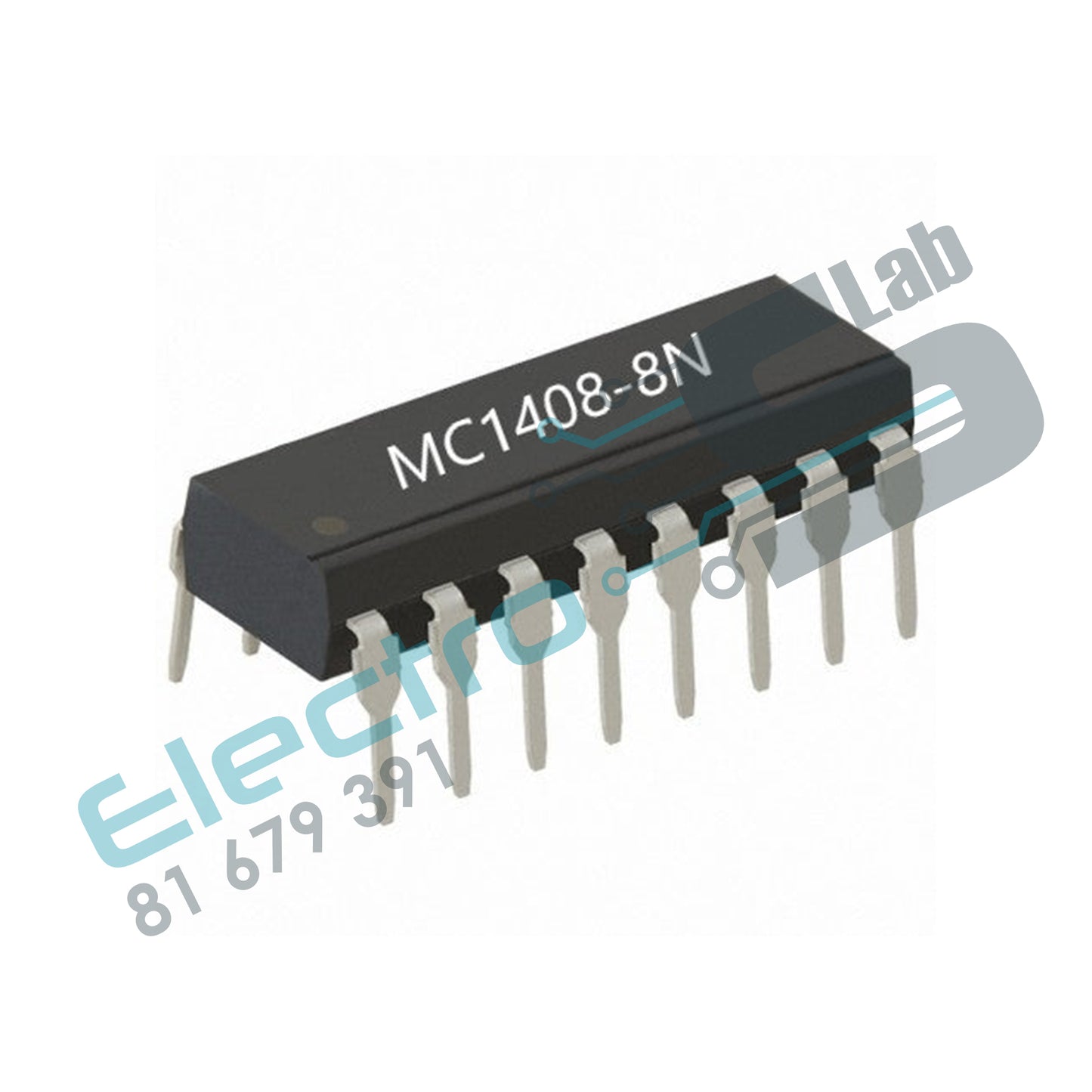

MC1408-8N DAC
MC1408-8N DAC
Tags
Regular price
$2.50 USD
Regular price
Sale price
$2.50 USD
Unit price
/
per
Sale
Sold out
Taxes included.
Couldn't load pickup availability
The MC1408 series of 8-bit monolithic digital-to-analog converters provide high-speed performance. They are designed for use where the output current is a linear product of an 8-bit digital word and an analog reference voltage.
Specifications:
- Fast settling time — 70ns (typ)
- Relative accuracy: ±0.19% (max error)
- Non-inverting digital inputs are TTL and CMOS compatible
- High-speed multiplying rate 4.0mA/μs (input slew)
- Output voltage swing +0.5V to –5.0V
- Standard supply voltages +5.0V and –5.0V to –15V
- Military qualifications pending
Share
View full details
Regular price
$2.50 USD
Regular price
Sale price
$2.50 USD
Unit price
/
per
Couldn't load pickup availability
The MC1408 series of 8-bit monolithic digital-to-analog converters provide high-speed performance. They are designed for use where the output current is a linear product of an 8-bit digital word and an analog reference voltage.
Specifications:
- Fast settling time — 70ns (typ)
- Relative accuracy: ±0.19% (max error)
- Non-inverting digital inputs are TTL and CMOS compatible
- High-speed multiplying rate 4.0mA/μs (input slew)
- Output voltage swing +0.5V to –5.0V
- Standard supply voltages +5.0V and –5.0V to –15V
- Military qualifications pending
